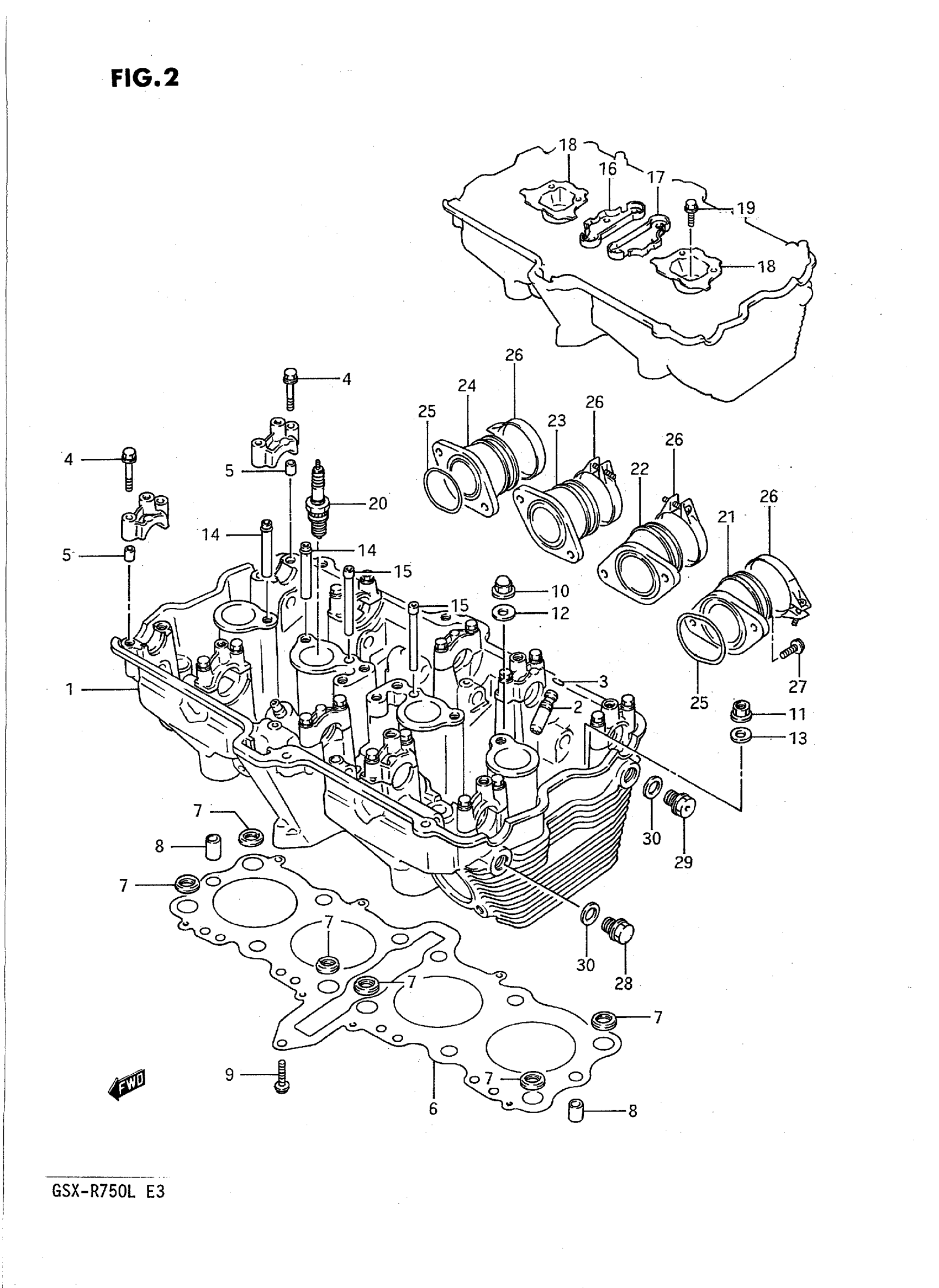

Suzuki GSX-R750L (1990) CYLINDER HEAD (MODEL J/K) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL J This part replaces 11100-17C02.

11100-17C03

Unavailable

1

HEAD ASSY, CYLINDER | MODEL K

11100-17C03

Unavailable

1

HEAD ASSY, CYLINDER | MODEL J,CALIFORNIA ONLY This part replaces 11100-17C12.

11100-17C13

Unavailable

1

HEAD ASSY, CYLINDER | MODEL K,CALIFORNIA ONLY; Includes Item(s) 2 - 5

11100-17C13

Unavailable

2

GUIDE, VALVE

11116-06B70

$40.73

3

.RING (10X85)

09381-10004

$1.50

4

BOLT (6X39)

09103-06026

$1.98

5

PIN

09206-08001

$1.78

6

GASKET,CYLINDER This part replaces 11141-17C01.

11141-17C03

Unavailable

7

O RING

11143-06B00

$6.28

8

PIN

04211-11189

$1.78

9

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

10

NUT

09159-10054

$7.82

11

NUT This part replaces 08316-16106.

08316-1010B

$2.66

12

.GASKET (10.2X20X2.3)

09168-10031

$2.03

13

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.26

14

PIPE, OIL NO.1,2

11131-27A00

$6.38

15

PIPE, OIL NO.3

11133-27A00

Unavailable

16

PLATE, OIL PIPE NO.1 This part replaces 11135-17C01.

11135-17C10

Unavailable

17

PLATE, OIL PIPE NO.1 This part replaces 11136-17C01.

11135-17C10

Unavailable

18

PLATE, OIL PIPE,NO.2 This part replaces 11137-17C00.

11137-17C01

Unavailable

19

BOLT

01547-06127

$1.65

20

SPARK PLUG (NGK,JR9C)

09482-00397

$6.35

20

SPARK PLUG (NGK,JR8C) | OPT

09482-00401

$7.47

21

PIPE, INTAKE, LH This part replaces 13110-17C00.

13101-17C01

$34.54

22

PIPE ASSY,INTAK This part replaces 13120-17C00.

13102-17C02

Unavailable

23

PIPE ASSY,INTAK This part replaces 13130-17C00.

13103-17C02

Unavailable

24

PIPE, INTAKE, RH This part replaces 13140-17C00.

13104-17C01

Unavailable

25

O-RING (D:2.4,ID:39.7) This part replaces 13115-27A01.

09280-40020

$2.91

26

CLAMP

09402-52208

$5.36

27

SCREW This part replaces 02152-06165.

02112-0616A

$1.49

28

PLUG, CYLINDER HEAD EX

09247-14034

Unavailable

28

PLUG, CYLINDER HEAD EX | CALIFORNIA ONLY

09247-14032

$5.28

29

PLUG, CYLINDER HEAD IN

09247-14032

$5.28

30

GASKET

09168-14004

$1.83
