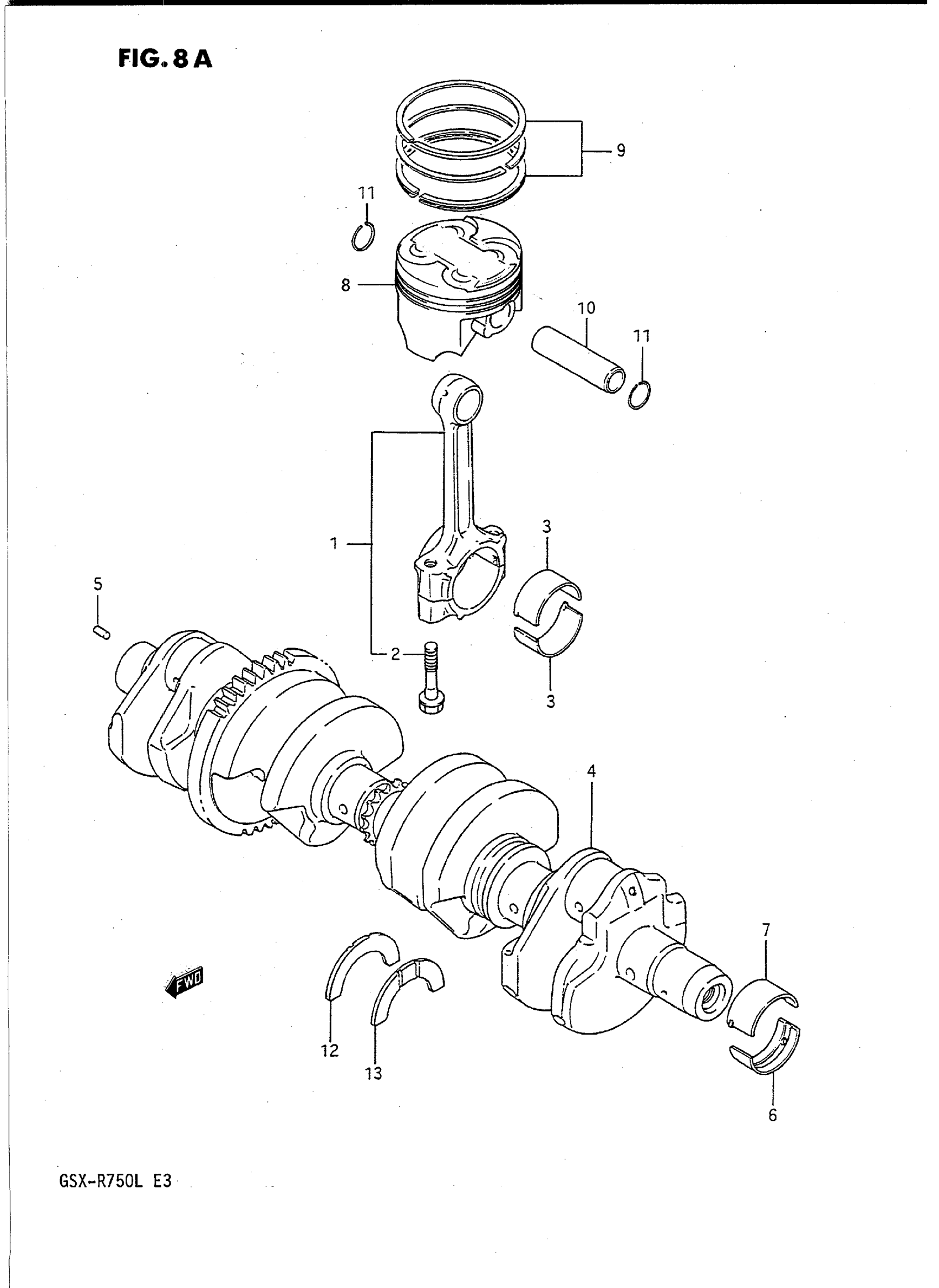

Suzuki GSX-R750L (1990) CRANKSHAFT (MODEL L) Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2 This part replaces 12160-17D00.

12160-17E01

Unavailable

2

BOLT

12163-27A52

Unavailable

3

BEARING, CRANK PIN (GREEN) This part replaces 12164-27A00-0A0.

12164-17E01-0A0

$16.98

3

BEARING, CRANK PIN (BLACK) This part replaces 12164-27A00-0B0.

12164-17E01-0B0

$16.98

3

BEARING, CRANK PIN (BROWN) This part replaces 12164-27A00-0C0.

12164-17E01-0C0

$14.45

3

BEARING, CRANK PIN (YELLOW) This part replaces 12164-27A00-0D0.

12164-17E01-0D0

$17.65

4

CRANKSHAFT SET | Includes Item(s) 5 This part replaces 12220-27A04.

12000-47831

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

BEARING, CRANKSHAFT (GREEN) | LOWER

12229-27A00-0A0

$10.59

6

BEARING, CRANKSHAFT (BLACK)

12229-27A00-0B0

$12.00

6

BEARING, CRANKSHAFT (BROWN)

12229-27A00-0C0

$12.00

6

BEARING, CRANKSHAFT (YELLOW)

12229-27A00-0D0

$12.45

7

BEARING, CRANKSHAFT (GREEN) | UPPER

12229-27A10-0A0

$10.59

7

BEARING, CRANKSHAFT (BLACK)

12229-27A10-0B0

$12.45

7

BEARING, CRANKSHAFT (BROWN)

12229-27A10-0C0

$12.00

7

BEARING, CRANKSHAFT (YELLOW)

12229-27A10-0D0

$12.45

8

PISTON

12111-17D02-0F0

Unavailable

8

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-17D02-050.

12100-17D00-050

Unavailable

8

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-17D02-100.

12100-17D00-100

Unavailable

9

RING SET, PISTON

12140-07D10

$87.28

9

RING SET, PISTON (OS:0.5) | OPT

12140-07D10-050

Unavailable

9

RING SET, PISTON (OS:1.0) | OPT

12140-07D10-100

Unavailable

10

PIN, PISTON

12151-07D00

$18.43

11

CIRCLIP This part replaces 09381-18003.

09381-18005

$1.90

12

BEARING, THRUST RH (GREEN) | INCLUDED CRANKCASE SET

12228-43414

$10.07

13

BEARING, THRUST LH (RED) | INCLUDED CRANKCASE SET

12228-43411

Unavailable

13

BEARING, THRUST LH (BLACK)

12228-43412

Unavailable

13

BEARING, THRUST LH (BLUE)

12228-43413

Unavailable

13

BEARING, THRUST LH (GREEN)

12228-43414

$10.07

13

BEARING, THRUST LH (YELLOW)

12228-43415

Unavailable

13

BEARING, THRUST LH (WHITE)

12228-43416

Unavailable
