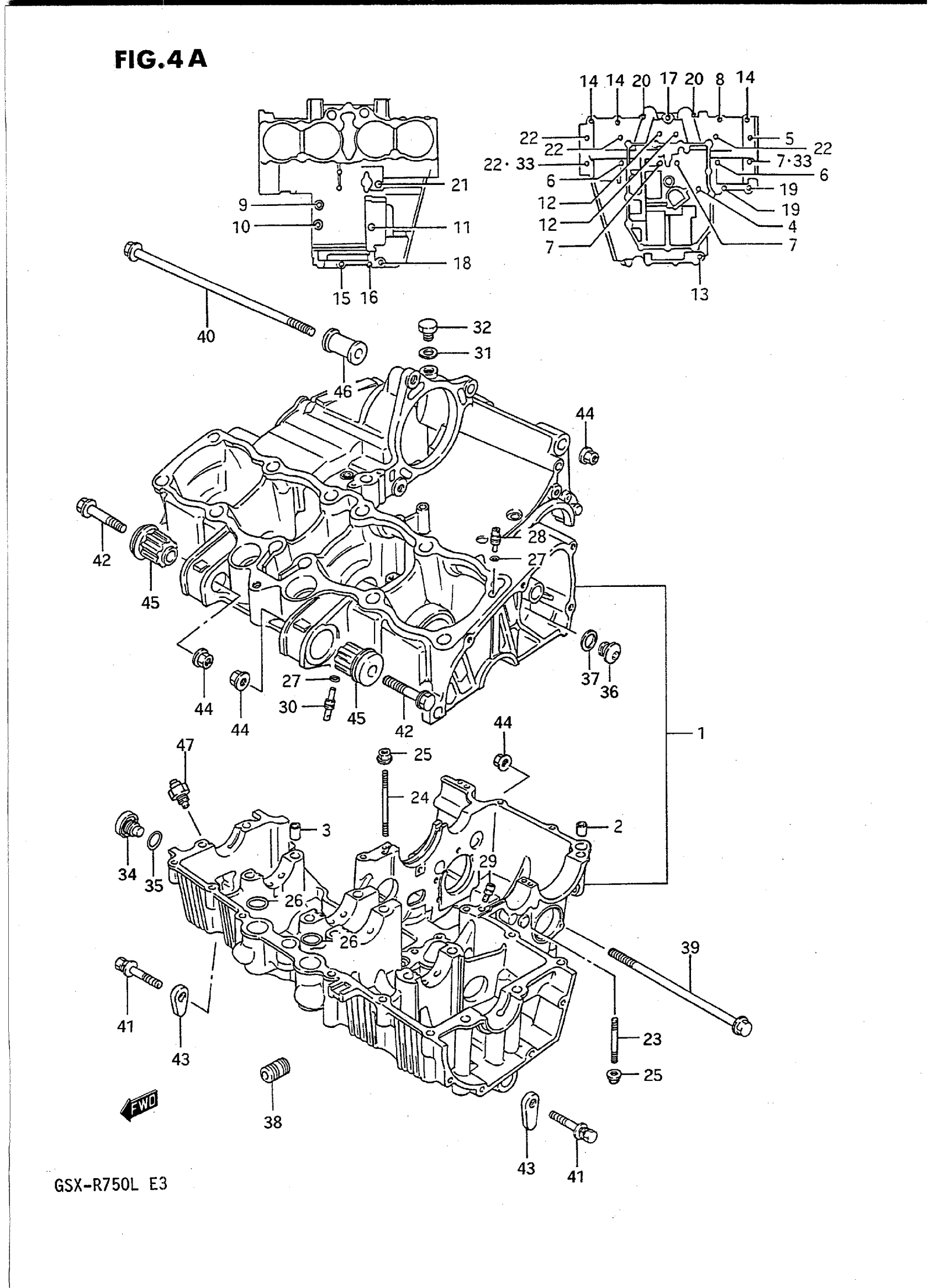

Suzuki GSX-R750L (1990) CRANKCASE (MODEL L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 37 This part replaces 11301-27810.

11301-27811

Unavailable

2

PIN

09206-13004

$2.44

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.85

4

BOLT (6X105)

09103-06067

$3.00

5

BOLT (8X105) This part replaces 09103-08261.

09103-08179

Unavailable

6

BOLT (8X125)

09103-08182

$6.22

7

BOLT (8X115)

09103-08264

Unavailable

8

BOLT This part replaces 01517-06354.

01550-0635A

$2.31

9

BOLT, STATOR This part replaces 07110-06405.

07130-0640B

$3.10

10

BOLT This part replaces 07110-06505.

07130-0650B

$4.45

11

BOLT This part replaces 07110-06655.

07130-0665B

$3.47

12

BOLT This part replaces 07110-08655.

07130-0865B

$5.73

13

BOLT This part replaces 01517-08605.

01550-0860A

$1.37

14

BOLT This part replaces 01517-06354.

01550-0635A

$2.31

15

BOLT This part replaces 01517-06404.

01550-0640A

$2.43

16

BOLT This part replaces 01517-06408.

01550-06407

$2.73

17

BOLT This part replaces 01517-06505.

01550-0650A

$3.10

18

BOLT This part replaces 01517-06605.

01550-0660A

$2.80

19

BOLT This part replaces 01517-06557.

01550-06557

$3.58

20

BOLT This part replaces 01517-06705.

01550-0670B

$4.62

21

BOLT This part replaces 01517-06805.

01550-0680B

$3.80

22

BOLT (8X95) This part replaces 09103-08260.

09103-08105

$4.20

23

BOLT,STUD This part replaces 01421-06408.

01421-0640A

Unavailable

24

BOLT,STUD This part replaces 01421-06608.

01421-0660A

$4.12

25

NUT This part replaces 09159-06017.

08319-31067

$2.01

26

O RING (D:2.5,ID:21)

09280-21008

$1.89

27

O RING

09280-04004

$1.76

28

JET, OIL GALLERY HEAD

09493-14002

Unavailable

29

JET, OIL GALLERY GEAR SHIFT

09493-24010

$18.33

30

JET, OIL GALLERY PISTON

09493-80008

Unavailable

31

GASKET, HOLE PLUG

09168-12002

$1.59

32

PLUG, HOLE

09247-12103

$2.80

33

GASKET

09168-08021

$2.66

34

PLUG This part replaces 09248-16003.

09248-16007

$10.83

35

O RING

09280-17002

$4.62

36

PLUG, CYLINDER HEAD This part replaces 09248-14004.

09248-14010

$7.03

37

GASKET

09168-14004

$1.69

38

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$6.45

39

BOLT (10X150) This part replaces 09103-10139.

09103-10078

$9.33

40

BOLT (10X175)

09103-10151

Unavailable

41

BOLT This part replaces 01987-10558.

01580-1055B

$5.83

42

BOLT This part replaces 01517-10558.

01550-10557

$3.58

43

NUT

09159-10020

$5.63

44

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21

45

BUSH

11681-27A00

Unavailable

46

SPACER, ENGINE MOUNT This part replaces 11611-17C00.

11610-20C00

$17.40

47

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33200.

37820-33D11

$27.58
