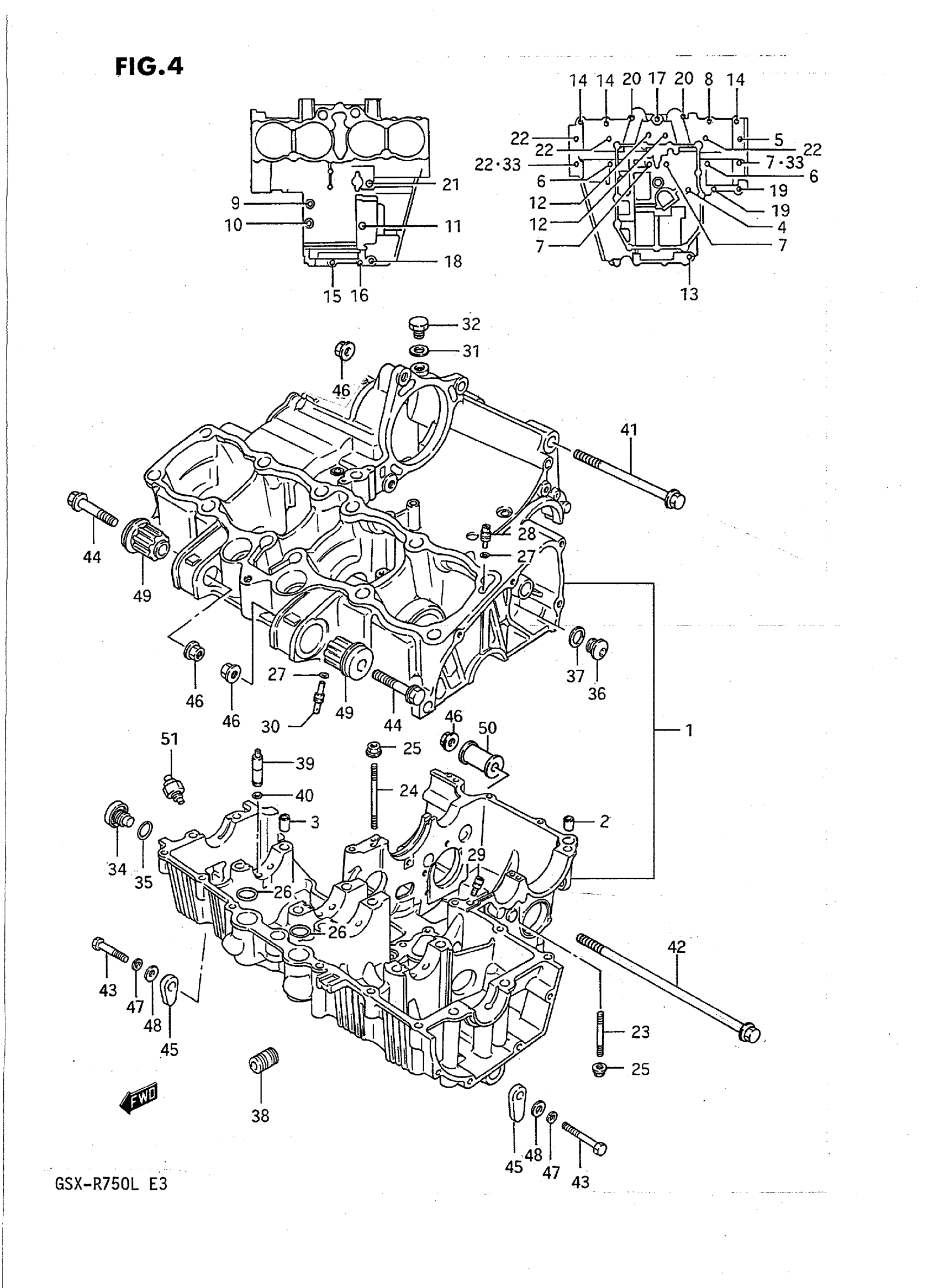

Suzuki GSX-R750L (1990) CRANKCASE (MODEL J/K) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 38 This part replaces 11300-06878.

11301-06812

Unavailable

2

PIN

09206-13004

$2.44

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.85

4

BOLT (6X105)

09103-06067

$3.00

5

BOLT (8X105)

09103-08097

$3.15

6

BOLT (8X125)

09103-08182

$6.22

7

BOLT (8X115)

09103-08098

$4.20

8

BOLT This part replaces 01517-06354.

01550-0635A

$2.31

9

BOLT, STATOR This part replaces 07110-06405.

07130-0640B

$3.10

10

BOLT This part replaces 07110-06505.

07130-0650B

$4.45

11

BOLT This part replaces 07110-06655.

07130-0665B

$3.47

12

BOLT This part replaces 07110-08555.

07130-0855B

$5.17

13

BOLT This part replaces 01517-08605.

01550-0860A

$1.37

14

BOLT This part replaces 01517-06354.

01550-0635A

$2.31

15

BOLT This part replaces 01517-06404.

01550-0640A

$2.43

16

BOLT This part replaces 01517-06408.

01550-06407

$2.73

17

BOLT This part replaces 01517-06505.

01550-0650A

$3.10

18

BOLT This part replaces 01517-06605.

01550-0660A

$2.80

19

BOLT This part replaces 01517-06558.

01550-06557

$3.58

20

BOLT This part replaces 01517-06705.

01550-0670B

$4.62

21

BOLT This part replaces 01517-06805.

01550-0680B

$3.80

22

BOLT (8X95)

09103-08105

$4.20

23

BOLT,STUD This part replaces 01421-06408.

01421-0640A

Unavailable

24

BOLT,STUD This part replaces 01421-06608.

01421-0660A

$4.12

25

NUT This part replaces 09159-06017.

08319-31067

$2.01

26

O RING (D:2.5,ID:21)

09280-21008

$1.89

27

O RING

09280-04004

$1.76

28

JET, OIL GALLERY HEAD

09493-14002

Unavailable

29

JET, OIL GALLERY GEAR SHIFT

09493-24010

$18.33

30

JET, OIL GALLERY PISTON

09493-80008

Unavailable

31

GASKET, HOLE PLUG

09168-12002

$1.59

32

PLUG, HOLE

09247-12103

$2.80

33

GASKET

09168-08021

$2.66

34

PLUG This part replaces 09248-16003.

09248-16007

$10.83

35

O RING

09280-17002

$4.62

36

PLUG, CYLINDER HEAD This part replaces 09248-14004.

09248-14010

$7.03

37

GASKET

09168-14004

$1.69

38

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$6.45

39

VALVE ASSY, PISTON OIL CONTRO

16430-27A00

Unavailable

40

O RING

09280-05007

$2.08

41

BOLT (10X150) This part replaces 09103-10139.

09103-10078

$9.33

42

BOLT (10X175)

09103-10151

Unavailable

43

BOLT This part replaces 01107-10558.

01500-1055A

$3.25

44

BOLT This part replaces 01517-10558.

01550-10557

$3.58

45

NUT

09159-10020

$5.63

46

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21

47

LOCK WASHER This part replaces 08321-21107.

08321-01107

$1.83

48

WASHER This part replaces 08322-11107.

08322-01107

$1.88

49

BUSH

11681-27A00

Unavailable

50

SPACER, ENGINE MOUNT This part replaces 11611-06B01.

11610-20C00

$17.40

51

SWITCH ASSY,OIL PRESSURE This part replaces 37820-34200.

37820-33D11

$27.58
