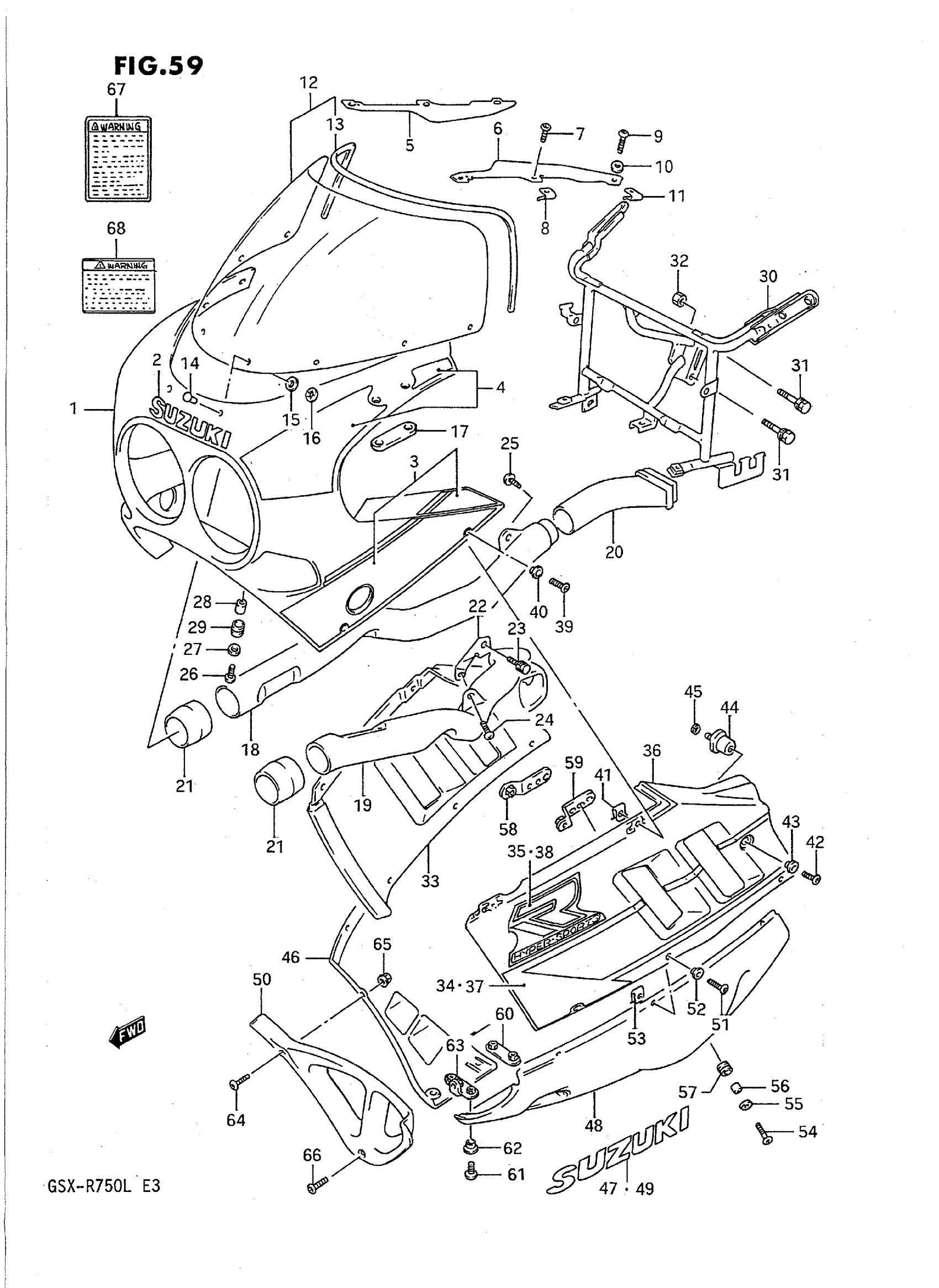

Suzuki GSX-R750L (1990) COWLING (MODEL L 3SL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FOR 3SL This part replaces 94500-17D00-0JW.

94500-17D01-0JW

Unavailable

1

BODY ASSY,COWLI | FOR 3RZ; Includes Item(s) 2 - 4 This part replaces 94500-17D00-0LX.

94500-17D01-0LX

Unavailable

2

EMBLEM | FOR 0JW

68185-05C10-0NE

Unavailable

2

EMBLEM | FOR 0LX

68185-05C10-019

Unavailable

3

TAPE SET, SIDE | FOR 0JW

68270-17D01-3SU

Unavailable

3

TAPE SET, SIDE | FOR 0LX

68270-17D01-3SS

Unavailable

4

NO DESCRIPTION AVAILABLE | FOR 0JW This part replaces 68280-17D10-0NE.

68280-17D30-0NE

Unavailable

4

NO DESCRIPTION AVAILABLE | FOR 0LX This part replaces 68280-17D10-019.

68280-17D30-019

Unavailable

5

PANEL, UPPER RH

94432-17C02

Unavailable

6

PANEL, UPPER LH

94442-17C02

Unavailable

7

SCREW, UPPER

09139-05033

$2.20

8

NUT This part replaces 09148-05023.

09148-05021

$1.86

9

SCREW

09139-05025

$2.05

10

WASHER (5.2X11.0X1.0)

09161-05010

$2.45

11

NUT This part replaces 09148-05023.

09148-05021

$1.86

12

SCREEN SET, WIND | Includes Item(s) 13

94610-17D02

Unavailable

13

MOLDING This part replaces 94631-17D00.

94631-33C01

$18.02

14

PIN, WIND SCREEN (4X13) This part replaces 94616-40C01.

94616-10D00

$2.96

15

CUSHION This part replaces 09320-04007.

09320-04501

$2.61

16

NUT

09148-04032

$2.17

17

CUSHION, MIRROR

94576-12C00

Unavailable

18

PIPE, AIR INTAKE FRONT RH

94451-17C01

Unavailable

19

PIPE, AIR INTAKE FRONT LH

94452-17C02

Unavailable

20

PIPE, AIR INTAKE REAR RH

94453-17C00

Unavailable

21

JOINT, AIR INTAKE

94454-17C01

Unavailable

22

PLATE, AIR INTAKE LH

94455-17D00

Unavailable

23

BOLT This part replaces 01137-06165.

01570-0616A

$2.23

24

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

25

SCREW, AIR INTAKE RH

02142-06207

$1.49

26

SCREW, BODY FRONT

09139-06056

$3.23

27

WASHER

09160-06056

$1.72

28

SPACER This part replaces 09180-06152.

09180-06262

$2.55

29

CUSHION

09320-09016

$1.97

30

BRACE, COWLING

94510-17D03

Unavailable

31

BOLT This part replaces 01137-08355.

01570-0835A

$3.16

32

NUT This part replaces 08313-21085.

08313-2008B

$2.88

33

NO DESCRIPTION AVAILABLE | FOR 3SR This part replaces 94430-17D30-3SR.

94430-17D31-3SR

Unavailable

33

NO DESCRIPTION AVAILABLE | FOR 3RZ; Includes Item(s) 34 - 35 This part replaces 94430-17D30-2YP.

94430-17D31-2YP

Unavailable

34

TAPE SET, SIDE RH | FOR 3SR,2YP

68680-17D00-0JW

Unavailable

35

EMBLEM | FOR 3SR

68681-17D10-3ST

Unavailable

35

EMBLEM | FOR 2YP

68681-17D10-3SS

Unavailable

36

NO DESCRIPTION AVAILABLE | FOR 3SR This part replaces 94440-17D30-3SR.

94440-17D31-3SR

Unavailable

36

NO DESCRIPTION AVAILABLE | FOR 3RZ; Includes Item(s) 37 - 38 This part replaces 94440-17D30-2YP.

94440-17D31-2YP

Unavailable

37

TAPE SET, SIDE LH | FOR 3SR,2YP

68690-17D00-0JW

Unavailable

38

EMBLEM | FOR 3SR

68681-17D10-3ST

Unavailable

38

EMBLEM | FOR 2YP

68681-17D10-3SS

Unavailable

39

SCREW, COVER UPPER

09139-05032

$1.89

40

WASHER

09161-05017

$3.18

41

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

42

SCREW

09139-06027

$2.16

43

WASHER

09161-06021

$2.83

44

CUSHION, COVER

94570-04A00

$21.91

45

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

46

NO DESCRIPTION AVAILABLE | FOR 3SL This part replaces 94470-17D21-3SL.

94470-17D22-3SL

Unavailable

46

NO DESCRIPTION AVAILABLE | FOR 3RZ; Includes Item(s) 47 - 47 This part replaces 94470-17D21-3RZ.

94470-17D22-3RZ

Unavailable

47

EMBLEM, SUZUKI | FOR 3SL This part replaces 68111-34301-0NE.

68111-34320-0NE

Unavailable

47

EMBLEM, SUZUKI | FOR 3RZ This part replaces 68111-34301-019.

68111-34320-33J

Unavailable

48

NO DESCRIPTION AVAILABLE | FOR 3SL This part replaces 94480-17D21-3SL.

94480-17D00-13L

Unavailable

48

NO DESCRIPTION AVAILABLE | FOR 3RZ; Includes Item(s) 49 - 49 This part replaces 94480-17D21-3RZ.

94480-17D00-13L

Unavailable

49

EMBLEM, SUZUKI | FOR 3SL

68181-17D00-0NE

Unavailable

49

EMBLEM, SUZUKI | FOR 3RZ

68181-17D00-019

Unavailable

50

NO DESCRIPTION AVAILABLE | FOR 3SL,3RZ This part replaces 94498-17D00-0JW.

94498-17C02-0MA

Unavailable

51

SCREW, UNDER UPPER

09139-05032

$1.89

52

WASHER

09161-05017

$3.18

53

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

54

SCREW, UNDER LOWER

09139-06028

$3.70

55

WASHER

09160-06056

$1.72

56

SPACER This part replaces 09180-06152.

09180-06262

$2.55

57

CUSHION

09320-09016

$1.97

58

BRACE, UNDER COWL RH This part replaces 94580-17C01.

94580-40C00

Unavailable

59

BRACE, UNDER COWL LH This part replaces 94590-17C01.

94590-40C00

Unavailable

60

BRACE, LOWER

94493-06B00

Unavailable

61

SCREW

09139-06039

$2.19

62

WASHER

09161-06021

$2.83

63

BRACE, LOWER FRONT

94490-06B00

Unavailable

64

SCREW

09139-05025

$2.05

65

NUT This part replaces 08316-26055.

08316-2005A

$2.19

66

SCREW

09139-06030

$3.70

67

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

68

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25
