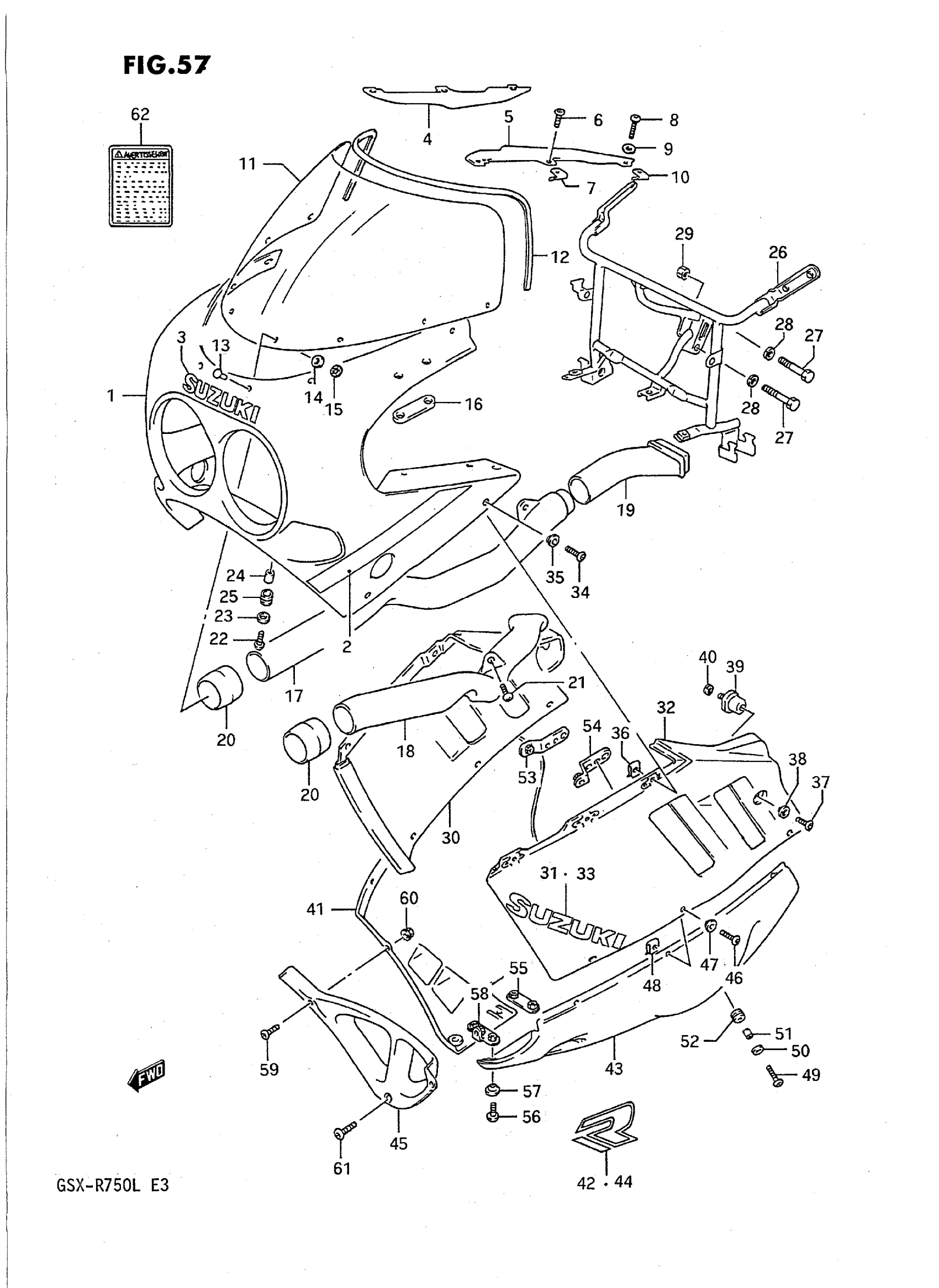

Suzuki GSX-R750L (1990) COWLING (MODEL K 9SR) Diagram

#

Description
Price

1

BODY ASSY, COWLING | CLEAR COATING

94400-18C00-9SR

Unavailable

1

BODY ASSY, COWLING | NO CLEAR COATING; Includes Item(s) 2 - 3 This part replaces 94400-18C01-9SR.

94400-18C00-9SR

Unavailable

2

TAPE SET

68180-17C20-39K

Unavailable

3

EMBLEM This part replaces 68271-04A00-22R.

68271-04A10-22R

Unavailable

4

PANEL, UPPER RH This part replaces 94432-17C01.

94432-17C02

Unavailable

5

PANEL, UPPER LH This part replaces 94442-17C01.

94442-17C02

Unavailable

6

SCREW, UPPER

09139-05033

$2.20

7

NUT This part replaces 09148-05023.

09148-05021

$1.86

8

SCREW

09139-05025

$2.05

9

WASHER (5.2X11.0X1.0)

09161-05010

$2.45

10

NUT This part replaces 09148-05023.

09148-05021

$1.86

11

SCREEN SET, WIND This part replaces 94611-17C00.

94610-17D02

Unavailable

11

SCREEN SET, WIND | OPT

94600-17830

Unavailable

12

MOLDING

94631-17C00

Unavailable

13

PIN, SCREEN (4X11) This part replaces 94616-17C00.

94616-22D00

$2.92

14

CUSHION This part replaces 09320-04007.

09320-04501

$2.61

15

NUT

09148-04010

$2.20

16

CUSHION, MIRROR

94576-12C00

Unavailable

17

PIPE, AIR INTAKE FRONT RH

94451-17C01

Unavailable

18

PIPE, AIR INTAKE FRONT LH

94452-17C02

Unavailable

19

PIPE, AIR INTAKE REAR RH

94453-17C00

Unavailable

20

JOINT, AIR INTAKE

94454-17C01

Unavailable

21

SCREW

02142-06207

$1.49

22

SCREW, BODY FRONT

09139-06056

$3.23

23

WASHER

09160-06056

$1.72

24

SPACER This part replaces 09180-06152.

09180-06262

$2.55

25

CUSHION

09320-09016

$1.97

26

NO DESCRIPTION AVAILABLE This part replaces 94510-17C13.

94510-17C14

Unavailable

27

BOLT This part replaces 01107-08355.

01500-0835B

$3.04

28

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

29

NUT This part replaces 08310-12085.

08310-0008A

$1.84

30

COVER, SIDE RH (BLUE/WHITE) | CLEAR COATING

94430-17C30-9SR

Unavailable

30

COVER, SIDE RH (BLUE/WHITE) | NO CLEAR COATING; Includes Item(s) 31 This part replaces 94430-17C31-9SR.

94430-17C30-9SR

Unavailable

31

EMBLEM | ,3RZ

68111-32B10-22R

Unavailable

32

COVER, SIDE LH (BLUE/WHITE) | CLEAR COATING

94440-17C30-9SR

Unavailable

32

COVER, SIDE LH (BLUE/WHITE) | NO CLEAR COATING; Includes Item(s) 33 This part replaces 94440-17C31-9SR.

94440-17C30-9SR

Unavailable

33

EMBLEM

68111-32B10-22R

Unavailable

34

SCREW, COVER UPPER

09139-05032

$1.89

35

WASHER

09161-05017

$3.18

36

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

37

SCREW

09139-06027

$2.16

38

WASHER

09161-06021

$2.83

39

CUSHION, COVER

94570-04A00

$21.91

40

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

41

NO DESCRIPTION AVAILABLE | CLEAR COATING This part replaces 94470-18C60-2GZ.

94470-17D00-13L

Unavailable

41

NO DESCRIPTION AVAILABLE | NO CLEAR COATING; Includes Item(s) 42 This part replaces 94470-18C61-2GZ.

94470-17D00-13L

Unavailable

42

EMBLEM

68191-06B00-2GR

Unavailable

43

NO DESCRIPTION AVAILABLE | CLEAR COATING This part replaces 94480-18C60-2GZ.

94480-17D00-13L

Unavailable

43

NO DESCRIPTION AVAILABLE | NO CLEAR COATING; Includes Item(s) 44 This part replaces 94480-18C61-2GZ.

94480-17D00-13L

Unavailable

44

EMBLEM

68191-06B00-2GR

Unavailable

45

NO DESCRIPTION AVAILABLE This part replaces 94498-17C00-22R.

94498-17C02-019

Unavailable

45

NO DESCRIPTION AVAILABLE This part replaces 94498-17C01.

94498-17C02-019

Unavailable

46

SCREW, UNDER UPPER

09139-05032

$1.89

47

WASHER

09161-05017

$3.18

48

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

49

SCREW, UNDER LOWER

09139-06028

$3.70

50

WASHER

09160-06056

$1.72

51

SPACER This part replaces 09180-06152.

09180-06262

$2.55

52

CUSHION

09320-09016

$1.97

53

BRACE, UNDER COWL RH This part replaces 94580-17C01.

94580-40C00

Unavailable

54

BRACE, UNDER COWL LH This part replaces 94590-17C01.

94590-40C00

Unavailable

55

BRACE, LOWER

94493-06B00

Unavailable

56

SCREW

09139-06039

$2.19

57

WASHER

09161-06021

$2.83

58

BRACE, LOWER FRONT

94490-06B00

Unavailable

59

SCREW

09139-05025

$2.05

60

NUT This part replaces 08316-26055.

08316-2005A

$2.19

61

SCREW

09139-06030

$3.70

62

LABEL,SCREEN | ,3RZ This part replaces 68612-48B00.

68922-14F01

$4.80
