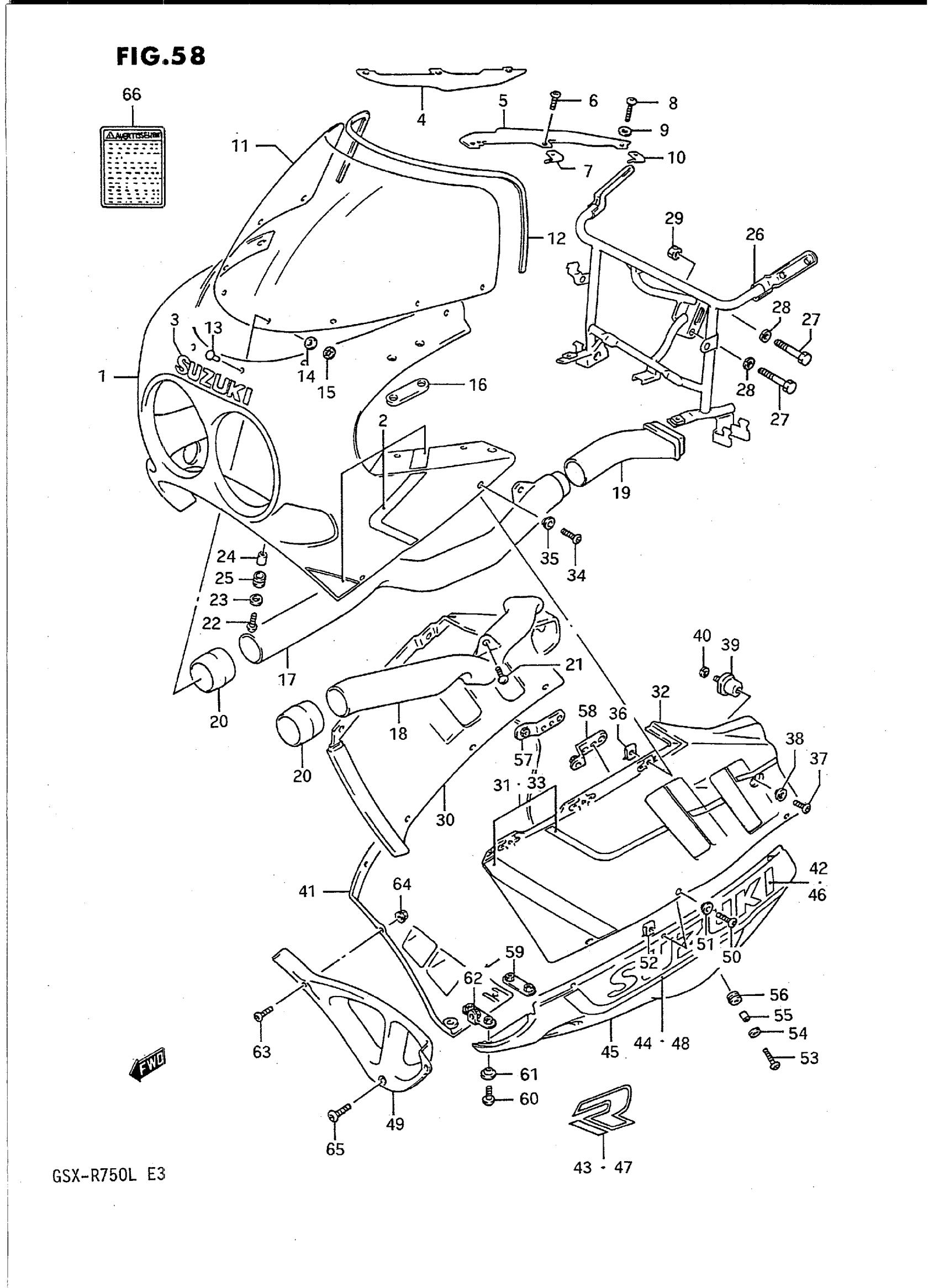

Suzuki GSX-R750L (1990) COWLING (MODEL K 7JJ) Diagram

#

Description
Price

1

BODY ASSY, COWLING (WHITE/RED | CLEAR COATING

94400-18C90-7JJ

Unavailable

1

BODY ASSY, COWLING (WHITE/RED | NO CLEAR COATING; Includes Item(s) 2 - 3 This part replaces 94400-18C91-7JJ.

94400-18C90-7JJ

Unavailable

2

TAPE SET

68180-17C30-7JT

Unavailable

3

EMBLEM This part replaces 68271-04A00-22R.

68271-04A10-22R

Unavailable

4

PANEL, UPPER RH This part replaces 94432-17C01.

94432-17C02

Unavailable

5

PANEL, UPPER LH This part replaces 94442-17C01.

94442-17C02

Unavailable

6

SCREW, UPPER

09139-05033

$2.20

7

NUT This part replaces 09148-05023.

09148-05021

$1.86

8

SCREW

09139-05025

$2.05

9

WASHER (5.2X11.0X1.0)

09161-05010

$2.45

10

NUT This part replaces 09148-05023.

09148-05021

$1.86

11

SCREEN SET, WIND This part replaces 94611-17C00.

94610-17D02

Unavailable

11

SCREEN SET, WIND | OPT

94600-17830

Unavailable

12

MOLDING

94631-17C00

Unavailable

13

PIN, SCREEN (4X11) This part replaces 94616-17C00.

94616-22D00

$2.92

14

CUSHION This part replaces 09320-04007.

09320-04501

$2.61

15

NUT

09148-04010

$2.20

16

CUSHION, MIRROR

94576-12C00

Unavailable

17

PIPE, AIR INTAKE FRONT RH

94451-17C01

Unavailable

18

PIPE, AIR INTAKE FRONT LH

94452-17C02

Unavailable

19

PIPE, AIR INTAKE REAR RH

94453-17C00

Unavailable

20

JOINT, AIR INTAKE

94454-17C01

Unavailable

21

SCREW

02142-06207

$1.49

22

SCREW, BODY FRONT

09139-06056

$3.23

23

WASHER

09160-06056

$1.72

24

SPACER This part replaces 09180-06152.

09180-06262

$2.55

25

CUSHION | ,3RZ

09320-09016

$1.97

26

NO DESCRIPTION AVAILABLE This part replaces 94510-17C13.

94510-17C14

Unavailable

27

BOLT This part replaces 01107-08355.

01500-0835B

$3.04

28

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

29

NUT This part replaces 08310-12085.

08310-0008A

$1.84

30

COVER, SIDE RH (WHITE/RED) | CLEAR COATING

94430-17C40-7JJ

Unavailable

30

COVER, SIDE RH (WHITE/RED) | NO CLEAR COATING; Includes Item(s) 31 This part replaces 94430-17C41-7JJ.

94430-17C40-7JJ

Unavailable

31

TAPE SET, RH

68680-17C00-019

Unavailable

32

COVER, SIDE LH (WHITE/RED) | CLEAR COATING

94440-17C40-7JJ

Unavailable

32

COVER, SIDE LH (WHITE/RED) | NO CLEAR COATING; Includes Item(s) 33 This part replaces 94440-17C41-7JJ.

94440-17C40-7JJ

Unavailable

33

TAPE SET, LH

68690-17C00-019

Unavailable

34

SCREW, COVER UPPER

09139-05032

$1.89

35

WASHER

09161-05017

$3.18

36

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

37

SCREW

09139-06027

$2.16

38

WASHER

09161-06021

$2.83

39

CUSHION, COVER

94570-04A00

$21.91

40

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

41

NO DESCRIPTION AVAILABLE | CLEAR COATING This part replaces 94470-18C10-7JJ.

94470-17D00-13L

Unavailable

41

NO DESCRIPTION AVAILABLE | NO CLEAR COATING; Includes Item(s) 42 - 44 This part replaces 94470-18C11-7JJ.

94470-17D00-13L

Unavailable

42

EMBLEM

68111-00A50-22P

Unavailable

43

EMBLEM

68191-06B00-7JT

Unavailable

44

TAPE, RH

68195-17C00-019

Unavailable

45

NO DESCRIPTION AVAILABLE | CLEAR COATING This part replaces 94480-18C10-7JJ.

94480-18C40-7JJ

Unavailable

45

NO DESCRIPTION AVAILABLE | NO CLEAR COATING; Includes Item(s) 46 - 48 This part replaces 94480-18C11-7JJ.

94480-18C40-7JJ

Unavailable

46

EMBLEM

68111-33200-22P

Unavailable

47

EMBLEM

68191-06B00-7JT

Unavailable

48

TAPE, LH

68275-17C00-019

Unavailable

49

NO DESCRIPTION AVAILABLE This part replaces 94498-17C00-22P.

94498-17C02-019

Unavailable

49

NO DESCRIPTION AVAILABLE | 3RZ This part replaces 94498-17C01.

94498-17C02-019

Unavailable

50

SCREW, UNDER UPPER

09139-05032

$1.89

51

WASHER

09161-05017

$3.18

52

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

53

SCREW, UNDER LOWER

09139-06028

$3.70

54

WASHER

09160-06056

$1.72

55

SPACER This part replaces 09180-06152.

09180-06262

$2.55

56

CUSHION

09320-09016

$1.97

57

BRACE, UNDER COWL RH This part replaces 94580-17C01.

94580-40C00

Unavailable

58

BRACE, UNDER COWL LH This part replaces 94590-17C01.

94590-40C00

Unavailable

59

BRACE, LOWER

94493-06B00

Unavailable

60

SCREW

09139-06039

$2.19

61

WASHER

09161-06021

$2.83

62

BRACE, LOWER FRONT

94490-06B00

Unavailable

63

SCREW

09139-05025

$2.05

64

NUT This part replaces 08316-26055.

08316-2005A

$2.19

65

SCREW

09139-06030

$3.70

66

LABEL,SCREEN | 3RZ This part replaces 68612-48B00.

68922-14F01

$4.80
