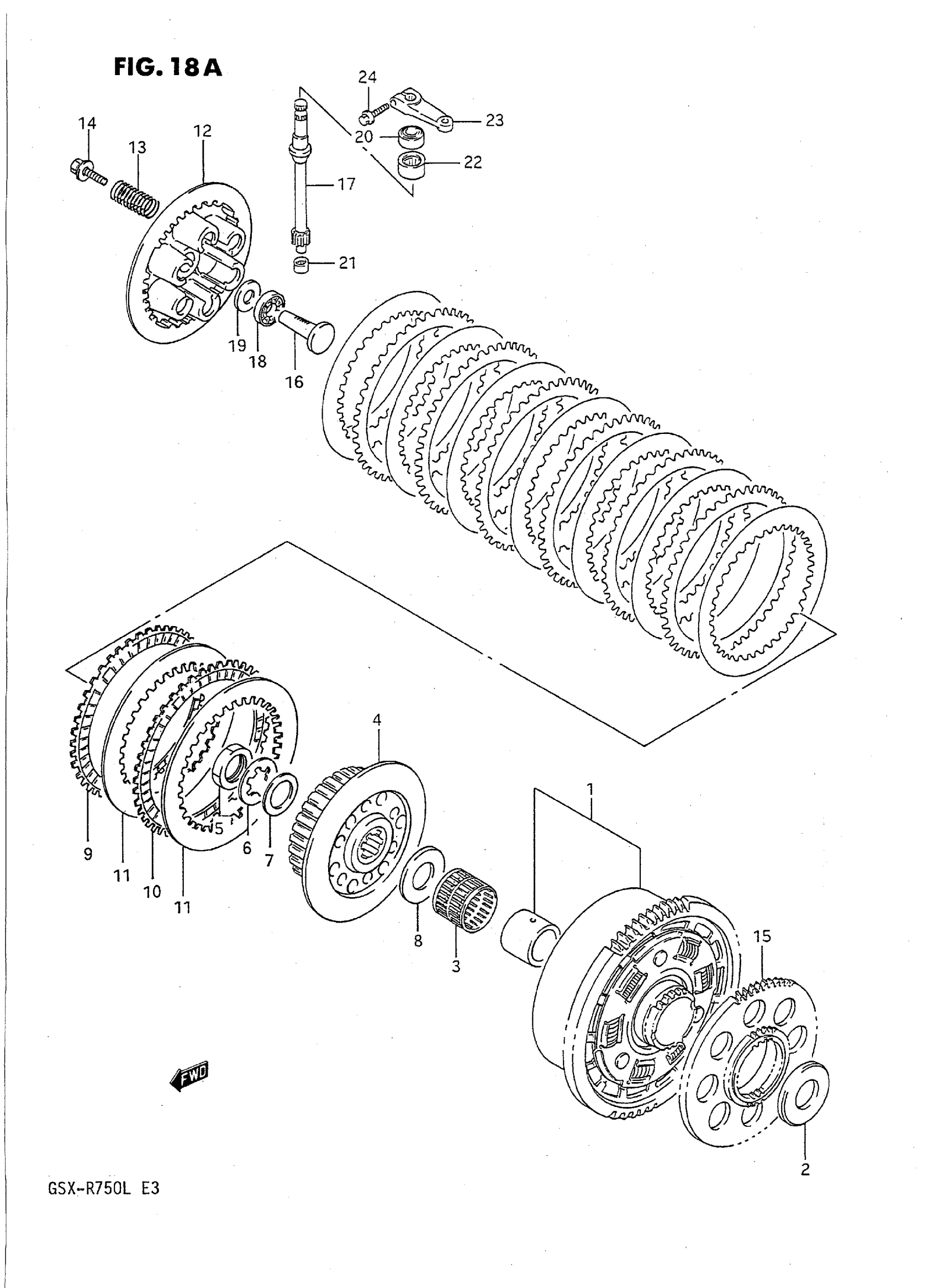

Suzuki GSX-R750L (1990) CLUTCH (MODEL L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 21200-07861.

21200-07867

Unavailable

2

WASHER

09160-25067

Unavailable

3

BEARING

09263-35017

$40.54

4

HUB, SLEEVE This part replaces 21410-17D00.

21410-17D01

Unavailable

5

NUT

09140-24012

Unavailable

6

WASHER

09167-25007

Unavailable

7

WASHER, WAVE

09164-24006

$3.76

8

.WASHER (25X50X2.5)

09160-25056

$11.61

9

PLATE, DRIVE (T:2.2)

21441-20C00

$34.67

10

PLATE, DRIVE,NO.2

21442-17C00

Unavailable

11

PLATE, DRIVEN (T:1.6)

21451-17C00

$11.44

12

DISC, PRESSURE This part replaces 21462-17D00.

21462-17E01

Unavailable

13

SPRING

09440-20020

$8.18

14

BOLT (6X25)

09116-06150

$2.59

15

GEAR, GENERATOR (NT:34/64) This part replaces 22721-17D00.

22721-17D02

Unavailable

16

RACK, RELEASE This part replaces 23165-07D00.

23165-21E00

Unavailable

17

PINION, RELEASE

23261-17C00

Unavailable

18

BEARING (15X28X2)

09263-15003

$8.29

19

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

20

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

21

BEARING (10X14X10) This part replaces 09263-10013.

09263-10014

$13.52

22

BEARING (15X22X12)

09263-15012

$15.48

23

ARM, CLUTCH RELEASE

23271-17C00

Unavailable

24

BOLT

01547-06207

$2.01
