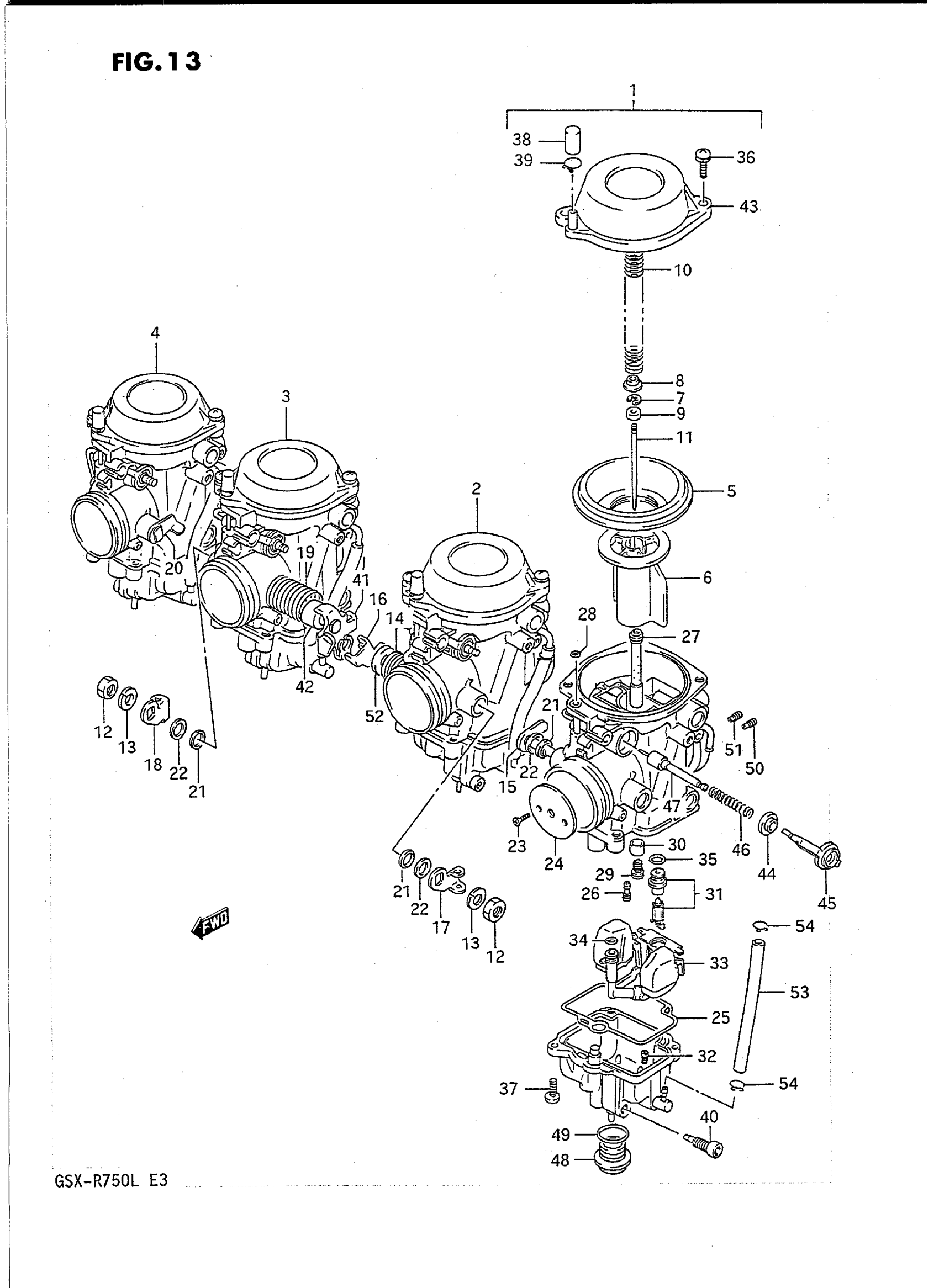

Suzuki GSX-R750L (1990) CARBURETOR (MODEL L Diagram

#

Description
Price

1

CARBURETOR ASSY, LH | OTHER THAN CALIFORNIA

13201-17D30

Unavailable

2

CARBURETOR ASSY, ML | OTHER THAN CALIFORNIA

13202-17D30

Unavailable

3

CARBURETOR ASSY, MR | OTHER THAN CALIFORNIA

13203-17D30

Unavailable

4

CARBURETOR ASSY, RH | OTHER THAN CALIFORNIA; Includes Item(s) 5 - 54

13204-17D30

Unavailable

5

.DIAPHRAGM This part replaces 13507-07D00.

13507-07D02

$34.55

6

VALVE, PISTON

13501-17D00

Unavailable

7

E RING

13394-31210

$4.37

8

RING This part replaces 13382-17D00.

13331-12D00

$7.48

9

RING

13387-07D00

$5.12

10

SPRING

13417-17D00

$6.75

11

NEEDLE, JET (5ZDZ3-1)

13383-17D20

Unavailable

12

NUT | ML,MR This part replaces 08310-22086.

08310-0008A

$1.86

13

LOCK WASHER | ML,MR This part replaces 08321-31086.

08321-0108A

$1.83

14

SPRING | ML

13573-07D00

Unavailable

15

SHAFT ASSY | LH

13550-17D00

Unavailable

16

SHAFT ASSY | ML

13550-17D10

Unavailable

17

LEVER | ML

13553-17C00

Unavailable

18

LEVER | MR

13553-44B00

Unavailable

19

SPRING | MR

13573-07D10

Unavailable

20

SHAFT ASSY | RH

13550-17D30

Unavailable

21

SEAL | LH,RH:1,ML:MR:2

13556-44B00

$5.00

22

WASHER

13557-47070

$3.38

23

SCREW, THROTTLE VALVE This part replaces 13604-07D00.

13604-44080

$2.80

24

VALVE, THROTTLE (135)

13551-17D10

Unavailable

25

GASKET, FLOAT CHAMBER

13258-44B00

$8.95

26

JET, PILOT (32.5)

09492-32006

$12.30

27

JET, NEEDLE (O-8)

09494-00677

Unavailable

28

O RING

13278-02340

$1.91

29

JET, MAIN (127.5)

09491-25011

$12.38

30

RING

13331-07D00

$7.48

31

VALVE ASSY,NEED This part replaces 13370-07D00.

13370-46E21

$82.32

32

JET (0)

09492-00001

$14.43

33

FLOAT ASSY

13240-07D00

Unavailable

34

.O RING

13374-46710

$4.09

35

O RING This part replaces 13374-44080.

13374-35C00

$5.48

36

SCREW This part replaces 13602-34390.

02112-7516A

$2.42

37

SCREW This part replaces 02112-05128.

02112-05127

$1.97

38

CAP

13508-17C00

$4.47

39

CLIP This part replaces 13671-33600.

13671-05A40

$3.50

40

SCREW, DRAIN This part replaces 13247-38B00.

13247-02340

$4.56

41

SHAFT ASSY | MR

13550-17D20

Unavailable

42

RING | MR

13557-05A20

Unavailable

43

COVER, DIAPHRAGM

13502-17D00

Unavailable

44

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$3.95

45

HOLDER

13418-17C10

$15.68

46

SPRING

13417-09110

$7.12

47

PLUNGER ASSY

13411-05320

$30.25

48

CAP, DRAIN

13247-32210

$17.20

49

O RING

13249-41310

$4.03

50

JET, MAIN AIR (0.9) | LH,RH

09493-18001

Unavailable

50

JET, MAIN AIR (1.2) | ML,MR

09493-24007

$17.56

51

JET, PILOT AIR (1.2)

09493-24007

$17.56

52

RING | ML

13557-07D00

Unavailable

53

.HOSE (3X7X600) This part replaces 13683-81400.

09355-30001-600

$7.83

54

CLIP This part replaces 13671-12C00.

09401-06101

$2.06
