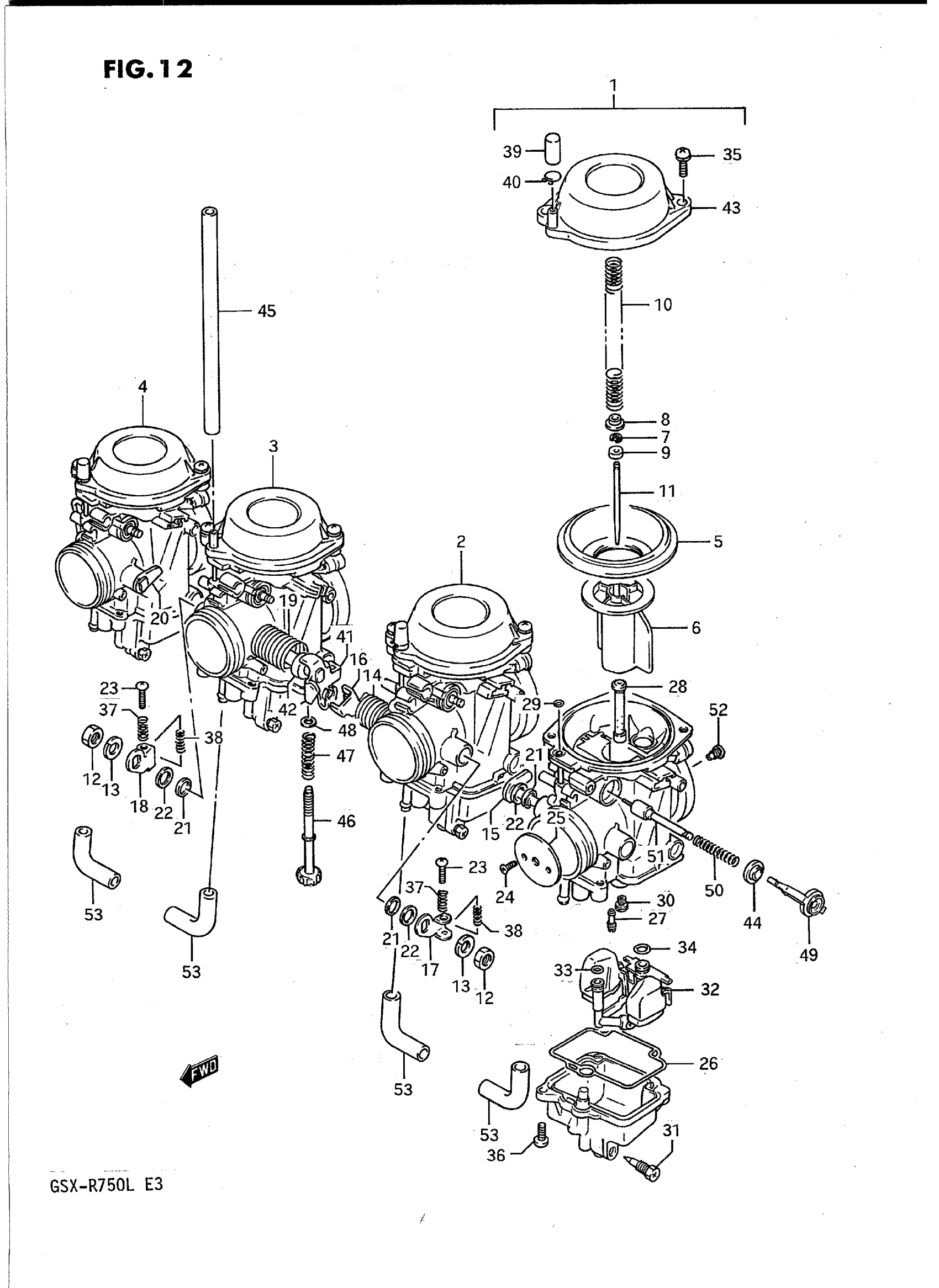

Suzuki GSX-R750L (1990) CARBURETOR (MODEL J/K Diagram

CARBURETOR ASSY, LH

13201-17C30

Unavailable

CARBURETOR ASSY, LH | MODEL J/K CALIFORNIA ONLY

13201-17C40

Unavailable

CARBURETOR ASSY, LH | MODEL L CALIFORNIA ONLY

13201-17D40

Unavailable

CARBURETOR ASSY, ML

13202-17C30

Unavailable

CARBURETOR ASSY, ML | MODEL J/K CALIFORNIA ONLY

13202-17C40

Unavailable

CARBURETOR ASSY, ML | MODEL L CALIFORNIA ONLY This part replaces 13202-17D40.

13202-18D40

Unavailable

CARBURETOR ASSY, MR

13203-17C30

Unavailable

CARBURETOR ASSY, MR | MODEL J/K CALIFORNIA ONLY

13203-17C40

Unavailable

CARBURETOR ASSY, MR | MODEL L CALIFORNIA ONLY This part replaces 13203-17D40.

13203-18D40

Unavailable

CARBURETOR ASSY, RH

13204-17C30

Unavailable

CARBURETOR ASSY, RH | MODEL J/K CALIFORNIA ONLY

13204-17C40

Unavailable

CARBURETOR ASSY, RH | MODEL L CALIFORNIA ONLY; Includes Item(s) 5 - 53 This part replaces 13204-17D40.

13204-18D40

Unavailable

.DIAPHRAGM This part replaces 13507-17C00.

13507-17C02

$27.09

VALVE, PISTON

13501-17C00

Unavailable

E RING

13394-31210

$4.37

RING

13382-42A00

$4.09

RING

13387-44030

$5.49

SPRING

13417-42A00

$6.39

NEEDLE, JET (5FZ91-1)

13383-17C20

$24.28

NUT | MLMR

08310-21086

Unavailable

LOCK WASHER | ML,MR This part replaces 08321-31086.

08321-0108A

$1.83

SPRING | ML

13573-17C00

Unavailable

SHAFT ASSY | LH

13550-17C00

Unavailable

SHAFT ASSY | ML

13550-17C10

Unavailable

LEVER | ML

13553-17C00

Unavailable

LEVER | MR,MODEL J/K

13553-17C10

Unavailable

LEVER | MR,MODEL L,CALIFORNIA ONLY

13553-44B00

Unavailable

SPRING | MR

13573-17C10

Unavailable

SHAFT ASSY | RH

13550-17C30

Unavailable

SEAL | LH,RH:1,ML:MR:2 MODEL J/K This part replaces 13556-17C00.

13556-44B00

$5.00

SEAL | LH,RH:1,ML:MR:2MODEL L,CALIFORNIA ONLY

13556-44B00

$5.00

WASHER

13557-47070

$3.38

SCREW | ML:2,MR:1 MODEL J/K

13267-17C00

Unavailable

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.80

VALVE, THROTTLE (125)

13551-17C00

Unavailable

VALVE, THROTTLE (115) | CALIFORNIA ONLY

13551-17C10

Unavailable

GASKET, FLOAT CHAMBER | MODEL J/K This part replaces 13251-17C00.

13258-44B00

$8.95

GASKET, FLOAT CHAMBER | MODEL L,CALIFORNIA ONLY

13258-44B00

$8.95

JET, PILOT (32.5)

09492-32006

$12.30

JET, NEEDLE (Y-5)

09494-00598

Unavailable

O RING

13509-17C00

$4.09

JET, MAIN (112.5)

09491-22015

$8.87

SCREW, DRAIN | MODEL J/K

13247-02340

$4.56

SCREW, DRAIN | MODEL L,CALIFORNIA ONLY

13247-28A00

$6.89

FLOAT ASSY

13250-17C00

Unavailable

.O RING

13374-46710

$4.09

O RING This part replaces 13374-44080.

13374-35C00

$5.48

SCREW This part replaces 13602-34390.

02112-7516A

$2.42

SCREW This part replaces 13602-05128.

02112-05127

$1.97

SPRING | MODEL J/KML:2,MR:1 This part replaces 13268-17C00.

13271-44B00

$3.66

SPRING | MODEL J/KML:2,MR:1

13268-17C10

$5.82

CAP | MODEL J/KLH,ML,RH

13508-17C00

$4.47

CLIP | MODEL J/KLH,ML,RH This part replaces 13671-33600.

13671-05A40

$3.50

SHAFT ASSY | MR

13550-17C20

Unavailable

RING | MR

13574-28A00

Unavailable

COVER, DIAPHRAGM

13502-17C00

Unavailable

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$3.95

.HOSE | MR MODEL J/KMR MODEL J/K,CALIFORNIA ONLY This part replaces 13687-17C00.

09352-50006-600

$6.75

ADJUSTER | MR This part replaces 13267-28A00.

13267-14D10

Unavailable

SPRING | MR This part replaces 13268-43410.

13375-14D10

$5.64

WASHER | MR

13427-38300

$2.17

HOLDER

13418-17C10

$15.68

SPRING

13417-09110

$7.12

PLUNGER ASSY

13411-05320

$30.25

JET, AIR | MODEL J/K

09493-31001

$18.33

JET, AIR | MODEL J/K,CALIFORNIA ONLY

09493-29002

Unavailable

JET, AIR | MODEL L,CALIFORONIA ONLY

09493-26004

$18.50

HOSE | MODEL J/K,CALIFORNIN ONLY This part replaces 13684-17C30.

13684-48B11

$14.61
