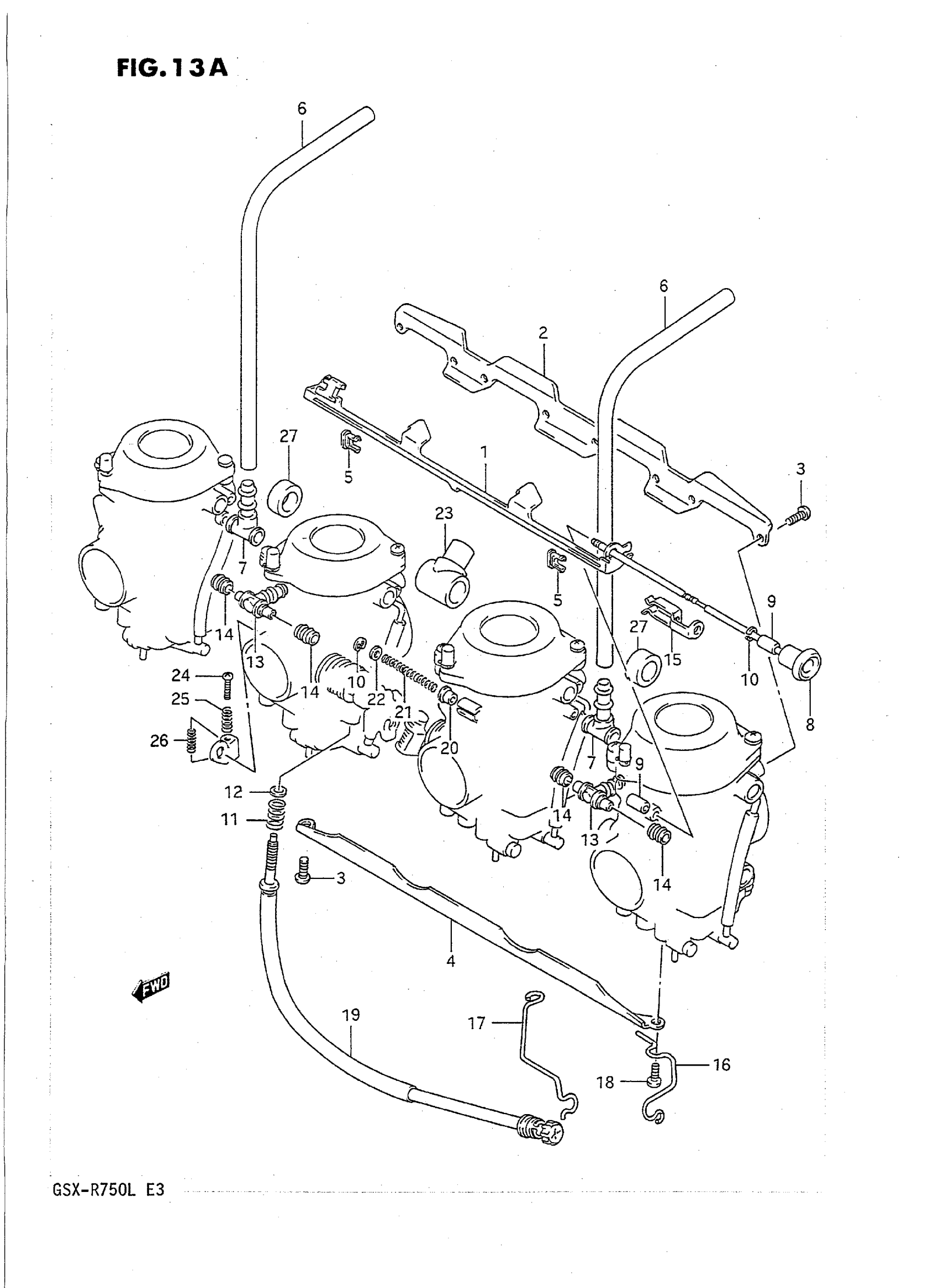

Suzuki GSX-R750L (1990) CARBURETOR FITTINGS (MODEL L Diagram

#

Description
Price

1

LEVER, STARTER

13413-17C00

Unavailable

2

PLATE

13628-07D00

Unavailable

3

SCREW This part replaces 02112-05128.

02112-05127

$1.97

4

PLATE

13628-17C00

Unavailable

5

HOLDER

13439-17C00

$9.99

6

HOSE(7X10.2X600 | LH,L:550->250RH,L:550->350 This part replaces 13684-20C20.

09352-70104-600

$5.07

7

HOSE

13684-20C10

$5.09

8

SHAFT, STARTER

13410-17C00

Unavailable

9

RING

13432-17C00

Unavailable

10

E RING

13415-38300

$1.86

11

SPRING This part replaces 13297-07D00.

13375-60A00

$9.50

12

WASHER

13427-38300

$2.17

13

NIPPLE

13685-44B00

$10.71

14

SEAL

13673-44B00

$4.21

15

PLATE, SPRING

13421-17C00

Unavailable

16

CLIP

13671-07D00

Unavailable

17

CLIP

13671-07D10

Unavailable

18

SCREW This part replaces 02112-05168.

02112-05167

$1.97

19

ADJUSTER

13279-20C00

Unavailable

20

RING

13557-05A10

Unavailable

21

SPRING

13417-09210

Unavailable

22

WASHER This part replaces 13606-02340.

08322-0104A

$1.92

23

HOSE ASSY

13680-17D00

Unavailable

24

SCREW

13267-44B00

$4.62

25

SPRING

13271-44B00

$3.66

26

SPRING

13268-17C10

$5.82

27

HOSE

13683-17D00

Unavailable
