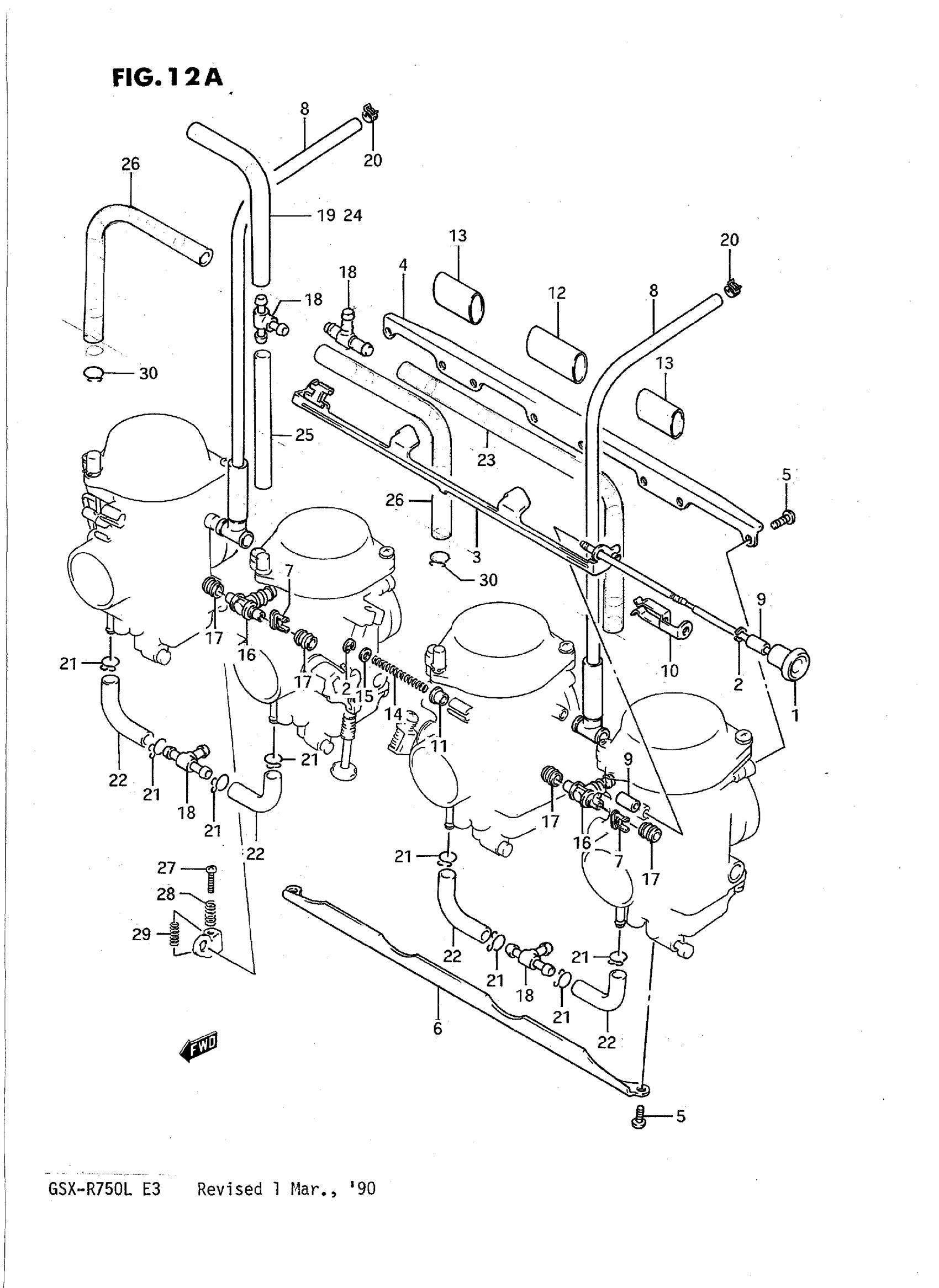

Suzuki GSX-R750L (1990) CARBURETOR FITTINGS (MODEL J/K Diagram

#

Description
Price

1

SHAFT, STARTER

13410-17C00

Unavailable

2

E RING

13415-38300

$1.95

3

LEVER

13413-17C00

Unavailable

4

PLATE

13628-17C10

Unavailable

5

SCREW This part replaces 13602-05128.

02112-05127

$2.01

6

PLATE | MODEL J/K

13628-17C00

Unavailable

6

PLATE | MODEL L,CALIFORNIA ONLY

13628-17D00

Unavailable

7

HOLDER

13439-17C00

$14.10

8

HOSE | LH,L:625->250RH,L:625->350CALIFORNIA ONLYLH,L:625->475RH,L:625 This part replaces 13683-17C30.

13683-17C31

$16.39

9

SPACER

13432-17C00

Unavailable

10

PLATE

13421-17C00

Unavailable

11

RING

13557-05A10

Unavailable

12

HOSE This part replaces 13684-17C00.

13684-43440

Unavailable

13

HOSE This part replaces 13684-17C10.

13684-43440

Unavailable

14

SPRING

13417-09210

Unavailable

15

WASHER This part replaces 13606-02340.

08322-0104A

$1.99

16

NIPPLE | MODEL J/K This part replaces 13685-17C00.

13685-44B00

$11.19

16

NIPPLE | MODEL L,CALIFORNIA ONLY

13685-44B00

$11.19

17

SEAL | MODEL J/K This part replaces 13680-17C00.

13673-44B00

$4.40

17

SEAL | MODEL L,CALIFORNIA ONLY

13673-44B00

$4.40

18

.NIPPLE | MODEL J/K,CALIFORNIA ONLY

13685-48B00

$11.96

19

.HOSE | MODEL J/K,CALIFORNIA ONLY This part replaces 13687-17C00.

09352-50006-600

$6.95

20

CLIP (ID:10.5,H:8) | CALIFORNIA ONLY

09401-10409

$2.37

21

CLIP | CALIFORNIA ONLY This part replaces 13671-48B10.

09401-10401

$1.49

22

HOSE | MODEL L,CALIFORNIA ONLY This part replaces 13684-48B00.

13684-48B11

$15.28

23

.HOSE | MODEL L,CALIFORNIA ONLY This part replaces 13687-17C00.

09352-50006-600

$6.95

24

.HOSE | MODEL L,CALIFORNIA ONLY This part replaces 13687-17C00.

09352-50006-600

$6.95

25

.HOSE | MODEL L,CALIFORNIA ONLY This part replaces 13687-17C00.

09352-50006-600

$6.95

26

.HOSE | MODEL L,CALIFORNIA ONLY This part replaces 13687-17C00.

09352-50006-600

$6.95

27

SCREW | MODEL L,CALIFORNIA ONLY

13267-44B00

$4.62

28

SPRING | MODEL L,CALIFORNIA ONLY

13271-44B00

$3.83

29

SPRING | MODEL L,CALIFORNIA ONLY

13268-17C10

$6.08

30

CLIP | MODEL L,CALIFORNIA ONLY This part replaces 13671-05A30.

09401-08410

$1.95
