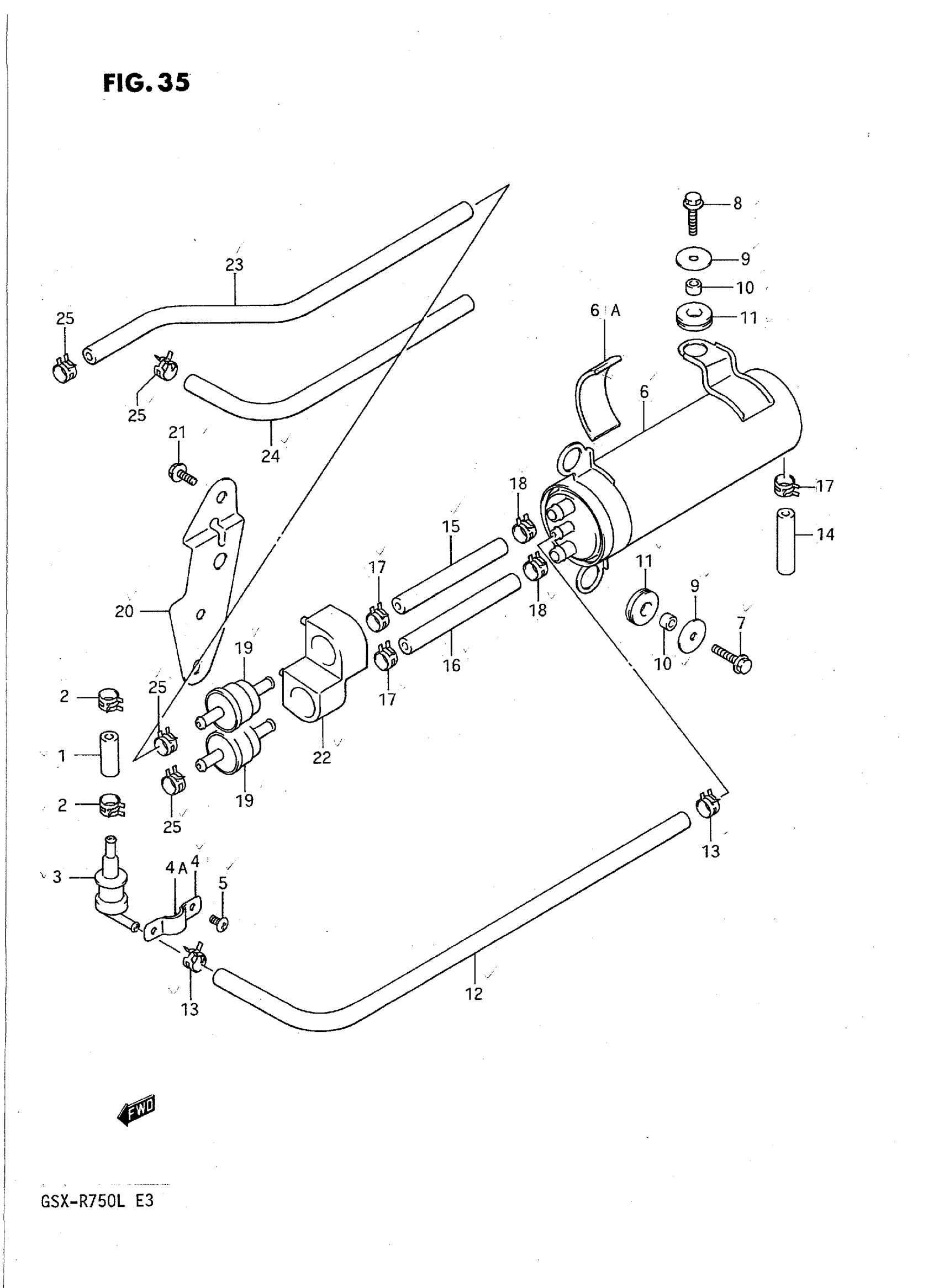

Suzuki GSX-R750L (1990) CANISTER (CALIFORNIA ONLY) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE This part replaces 09358-54116-020.

09355-54115-600

$14.59

2

CLIP This part replaces 09401-11410.

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 4A

44892-24A00

$4.52

4A

CUSHION (10X30X2)

44894-24A00

$1.72

5

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

6

CANISTER

17210-17C00

Unavailable

6A

CUSHION

17219-17C00

Unavailable

7

BOLT

01517-06166

Unavailable

8

BOLT This part replaces 01517-06256.

01550-0625A

$1.97

9

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

10

SPACER

09180-06082

$2.18

11

CUSHION

09320-10014

$2.92

12

HOSE, TANK & BREATHER VALVE This part replaces 09358-54116-550.

09355-54115-600

$14.59

13

CLIP This part replaces 09401-11410.

09401-11413

$2.26

14

HOSE,6.5X11.5X6 This part replaces 09354-70123-045.

44421-12FR0

$12.33

15

HOSE, CANISTER & PURGE This part replaces 09359-54111-080.

09359-54111-600

$25.80

16

HOSE, CANISTER & PURGE This part replaces 09359-54111-100.

09359-54111-600

$25.80

17

CLIP This part replaces 09401-11410.

09401-11413

$2.26

18

CLIP This part replaces 09401-12406.

09401-11415

$2.23

19

VALVE, CANISTER PURGE

44250-48B00

Unavailable

20

BRACKET, CANISTER PURGE VALVE

44881-17C00

Unavailable

21

BOLT, CLAMP This part replaces 01517-06126.

01550-0612A

$1.97

22

CUSHION, PURGE VALVE SET

44882-17C00

Unavailable

23

HOSE, TANK & BREATHER VALVE This part replaces 09354-54115-580.

09355-54115-600

$14.59

24

HOSE, TANK & BREATHER VALVE This part replaces 09354-54115-450.

09355-54115-600

$14.59

25

CLIP This part replaces 09401-11410.

09401-11413

$2.26
