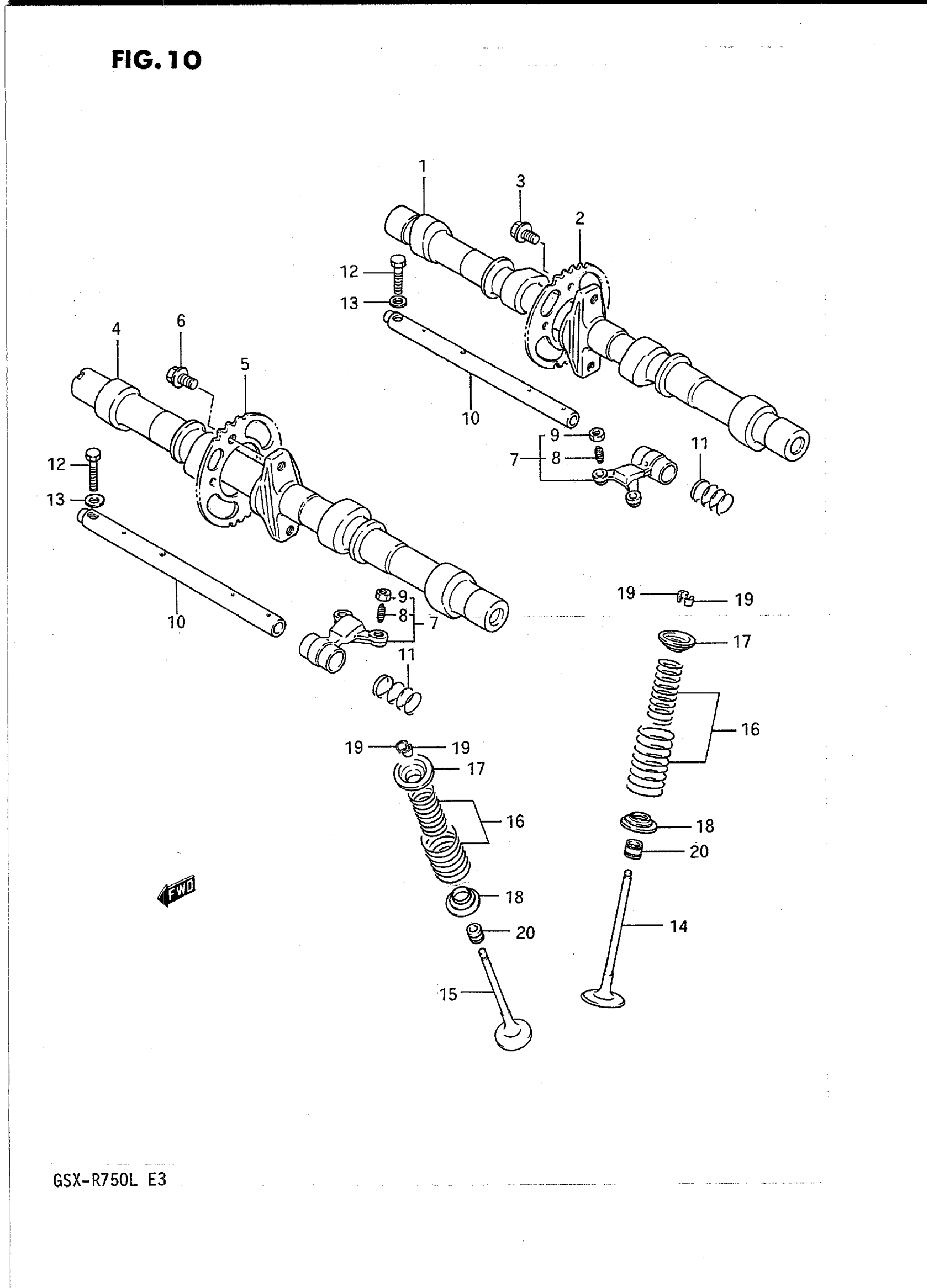

Suzuki GSX-R750L (1990) CAM SHAFT - VALVE (MODEL J/K) Diagram

#

Description
Price

1

CAM SHAFT, INTAKE This part replaces 12711-06B03.

12711-06B90

Unavailable

2

SPROCKET, CAM SHAFT

12741-17C01

Unavailable

3

BOLT

09103-07001

$2.43

4

CAM SHAFT, EXHAUST | MODEL J This part replaces 12721-06B03.

12721-06B90

Unavailable

4

CAMSHAFT,EXHAUS | MODEL K This part replaces 12721-17C00.

12721-17C90

$387.57

5

SPROCKET, CAM SHAFT

12741-17C01

Unavailable

6

BOLT

09103-07001

$2.43

7

ARM, VALVE ROCKER | Includes Item(s) 8 - 9 This part replaces 12840-17C00.

12840-27A01

$76.68

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.94

10

SHAFT, VALVE ROCKER ARM

12861-27A00

Unavailable

11

SPRING

09440-13014

$2.45

12

BOLT This part replaces 01107-06306.

01500-0630A

$2.19

13

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

14

VALVE, INTAKE

12911-17C02

Unavailable

15

VALVE, EXHAUST

12912-17C00

Unavailable

16

SPRING SET, VALVE

12920-17C00

Unavailable

17

RETAINER,VALVE This part replaces 12931-17C00.

12931-17C02

Unavailable

18

SEAT, SPRING

12933-17C00

Unavailable

19

COTTER, VALVE

12932-27A00

$2.26

20

OIL SEAL

09289-05011

$6.32
