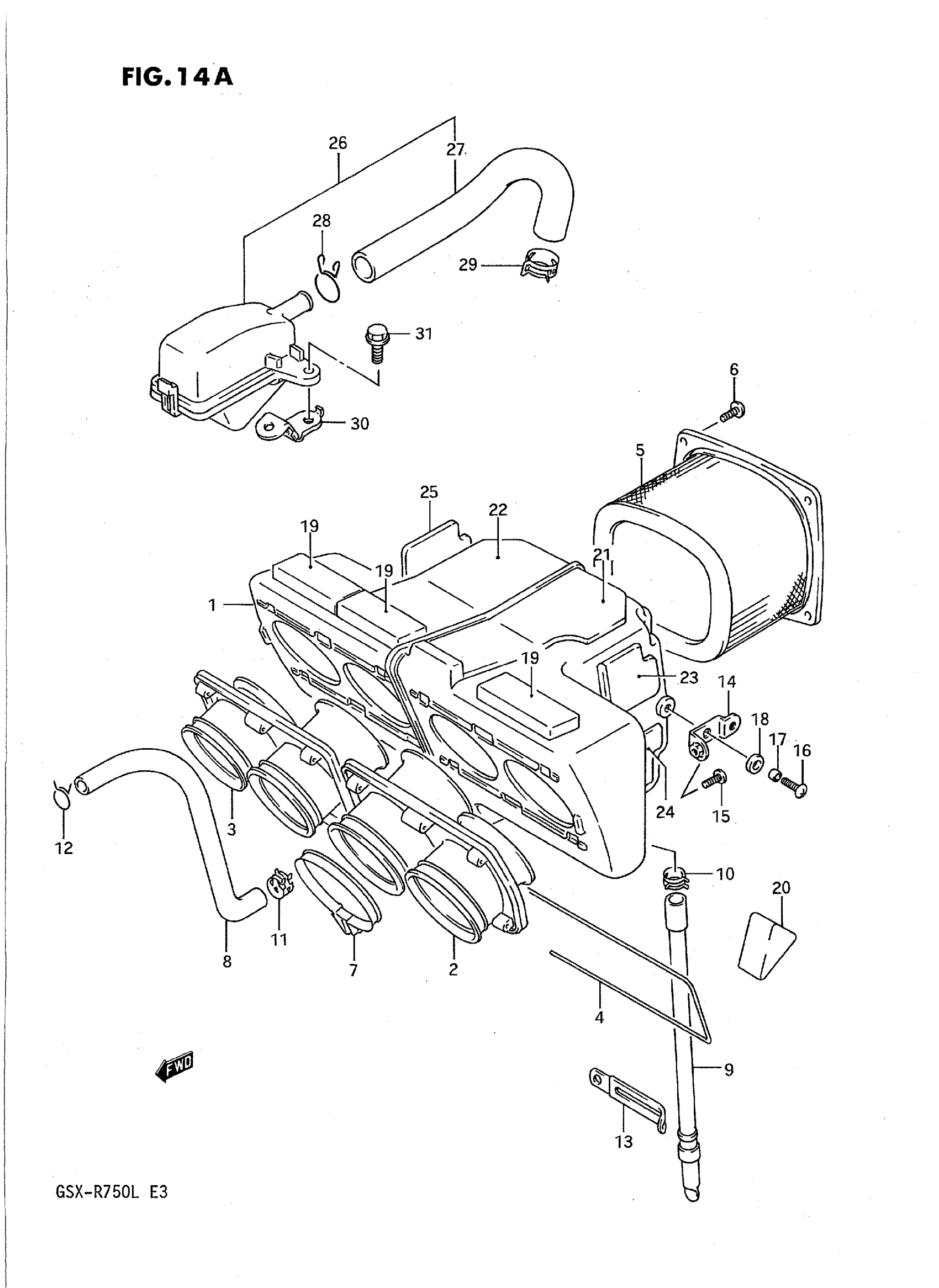

Suzuki GSX-R750L (1990) AIR CLEANER (MODEL L Diagram

#

Description
Price

1

CASE,AIR CLEANE This part replaces 13720-07D00.

13720-07D10

Unavailable

2

TUBE, OUTLET,LH

13880-07D00

Unavailable

3

TUBE, OUTLET,RH

13890-07D00

Unavailable

4

SHAFT, OUTLET TUBE This part replaces 13899-17C00.

13899-17C01

Unavailable

5

FILTER

13780-17C00

$52.60

6

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

7

CLAMP This part replaces 09402-64205.

09402-64203

$6.58

8

TUBE, BREATHER

13854-17C01

Unavailable

9

TUBE,DRAIN This part replaces 13870-11417.

13870-11459

$15.51

10

CLAMP This part replaces 09401-13406.

09401-13404

Unavailable

11

CLIP

09401-14301

$2.35

12

CLIP This part replaces 09401-16402.

09401-16403

$2.83

13

CLAMP This part replaces 09404-10404.

09404-10417

$2.72

14

BRACKET, CLEANER CASE

13760-17C01

Unavailable

15

SCREW This part replaces 02142-06166.

02142-0616A

$1.49

16

SCREW (6X18)

09125-06029

$1.72

17

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

$2.03

18

CUSHION, OUTER This part replaces 09161-09003.

09161-09006

$2.36

19

CUSHION, CASE

13848-17C00

Unavailable

20

CUSHION, AIR VENT HOSE, NO.1

13897-17C00

Unavailable

21

SHEET, AIR CLEANER,NO.1

13842-17C10

Unavailable

22

SHEET, AIR CLEANER NO.2

13843-17C10

Unavailable

23

SHEET, AIR CLEANER NO.3

13844-17C10

Unavailable

24

SHEET, AIR CLEANER NO.4

13845-17C10

Unavailable

25

SHEET, AIR CLEANER NO.5

13846-17C10

Unavailable

26

CLEANER ASSY, AIR NO.2 | Includes Item(s) 27 - 29 This part replaces 13700-17D10.

13800-17E00

Unavailable

27

TUBE, 2ND AIR CLEANER

13853-17D10

Unavailable

28

NO DESCRIPTION AVAILABLE This part replaces 13824-17D10.

09401-20301

Unavailable

29

NO DESCRIPTION AVAILABLE This part replaces 13826-17D10.

09401-18403

Unavailable

30

BRACKET, 2ND AIR CLEANER

13760-17D10

Unavailable

31

BOLT This part replaces 01517-06164.

01550-0616A

$1.97
