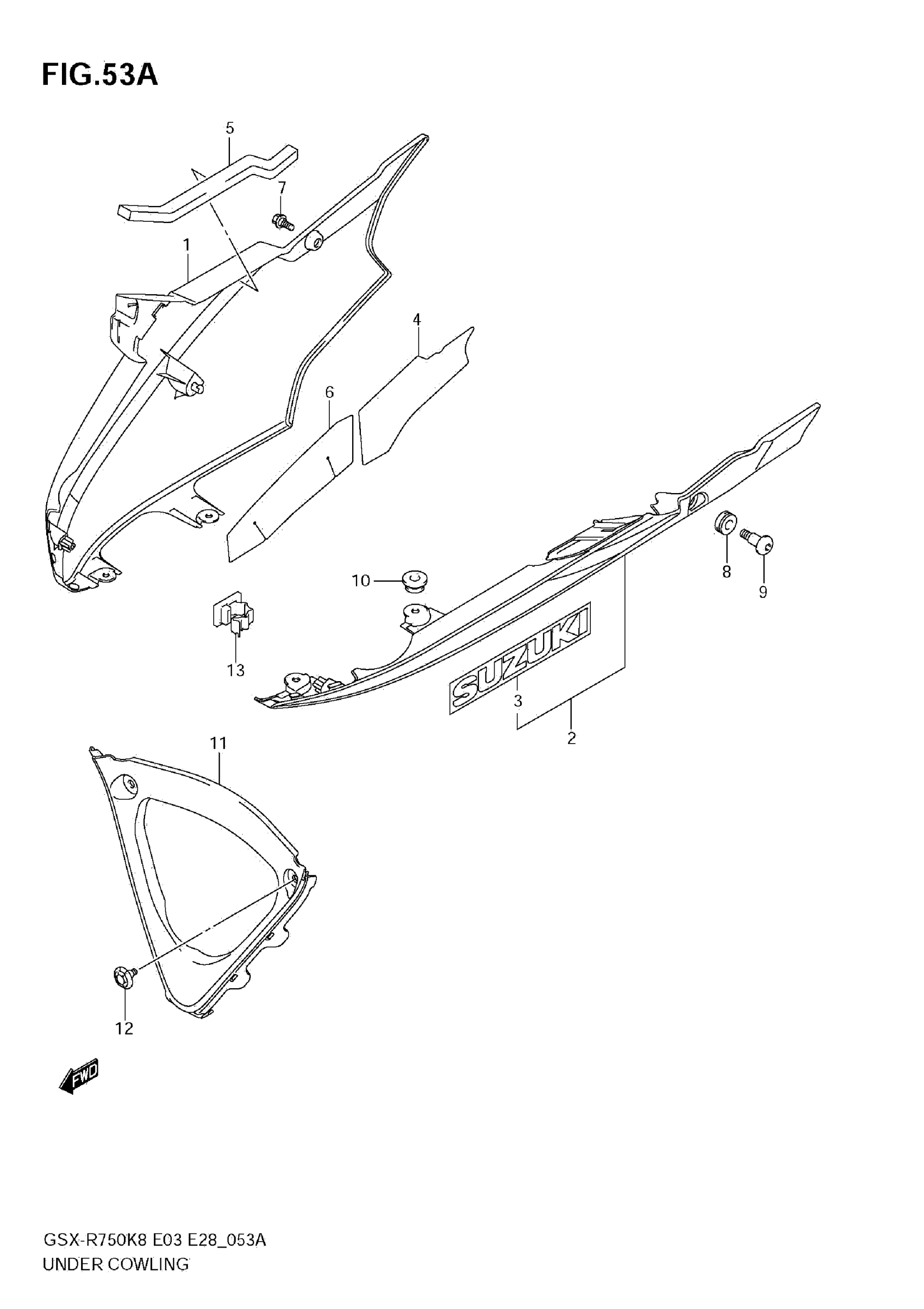

Suzuki GSX-R750K8 (2009) UNDER COWLING (MODEL K9) Diagram

#

Description
Price

1

COWLING, UNDER RH (BLACK) | FOR CRU,FGG

94470-37H00-4TX

Unavailable

1

COWLING, UNDER RH (SILVER) | FOR EAH

94470-37H00-5JX

Unavailable

1

COWLING, UNDER RH (BLUE) | FOR GLR

94470-37H00-YSF

Unavailable

2

COWLING, UNDER LH (BLACK) | FOR CRU,FGG

94480-37H00-4TX

Unavailable

2

COWLING, UNDER LH (SILVER) | FOR EAH

94480-37H00-5JX

Unavailable

2

COWLING, UNDER LH (BLUE) | FOR GLR

94480-37H00-YSF

$367.93

3

EMBLEM (GRAY) | FOR 4TX

68181-33C20-YU8

$31.45

3

EMBLEM (GRAY) | FOR YMD

68181-33C20-17U

$32.67

3

EMBLEM (WHITE) | FOR YSF

68181-33C20-YBD

$32.67

4

SHIELD, HEAT REAR UPPER RH

94472-37H00

$20.77

5

CUSHION

94477-37H00

$37.58

6

SHIELD, HEAT RH

94472-37H10

Unavailable

7

SCREW, RH

09139-05064

$2.57

8

CUSHION, LH

09320-09016

$1.97

9

SCREW, LH

09139-06126

$4.04

10

CUSHION

09321-10018

$5.45

11

COWLING, UNDER CENTER

94498-37H00

$52.28

12

CLIP

94479-35F00

$5.62

13

CLAMP, DRAIN HOSE

09403-14311

$5.33
