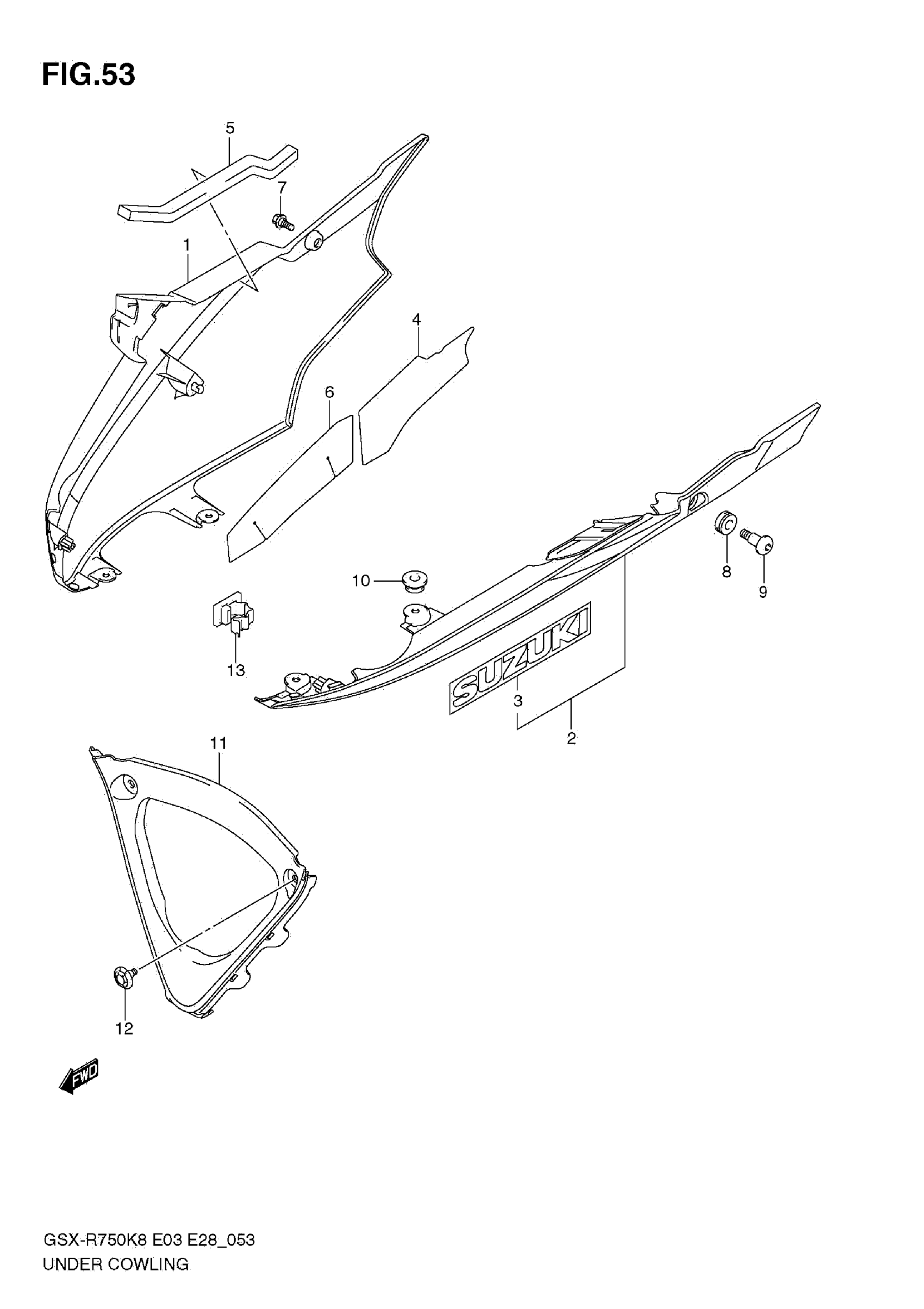

Suzuki GSX-R750K8 (2009) UNDER COWLING Diagram

#

Description
Price

1

COWLING, UNDER RH (BLACK) | FOR CRU

94470-37H00-019

Unavailable

1

COWLING, UNDER RH (BLUE) | FOR CWH

94470-37H00-YKY

$367.93

1

COWLING, UNDER RH (ORANGE) | FOR ECE

94470-37H00-YME

Unavailable

2

COWLING, UNDER LH (BLACK) | FOR CRU

94480-37H00-019

$367.93

2

COWLING, UNDER LH (BLUE) | FOR CWH

94480-37H00-YKY

$367.93

2

COWLING, UNDER LH (ORANGE) | FOR ECE

94480-37H00-YME

Unavailable

3

EMBLEM (GRAY) | FOR 019

68181-33C20-YU8

$31.45

3

EMBLEM (WHITE) | FOR YKY

68181-33C20-YBD

$32.67

3

EMBLEM (BLACK) | FOR YME

68181-33C20-YKV

$32.67

4

SHIELD, HEAT REAR UPPER RH

94472-37H00

$20.77

5

CUSHION

94477-37H00

$37.58

6

SHIELD, HEAT RH

94472-37H10

Unavailable

7

SCREW, RH

09139-05064

$2.57

8

CUSHION, LH

09320-09016

$1.97

9

SCREW, LH

09139-06126

$4.04

10

CUSHION

09321-10018

$5.45

11

COWLING, UNDER CENTER

94498-37H00

$52.28

12

CLIP

94479-35F00

$5.62

13

CLAMP, DRAIN HOSE

09403-14311

$5.33
