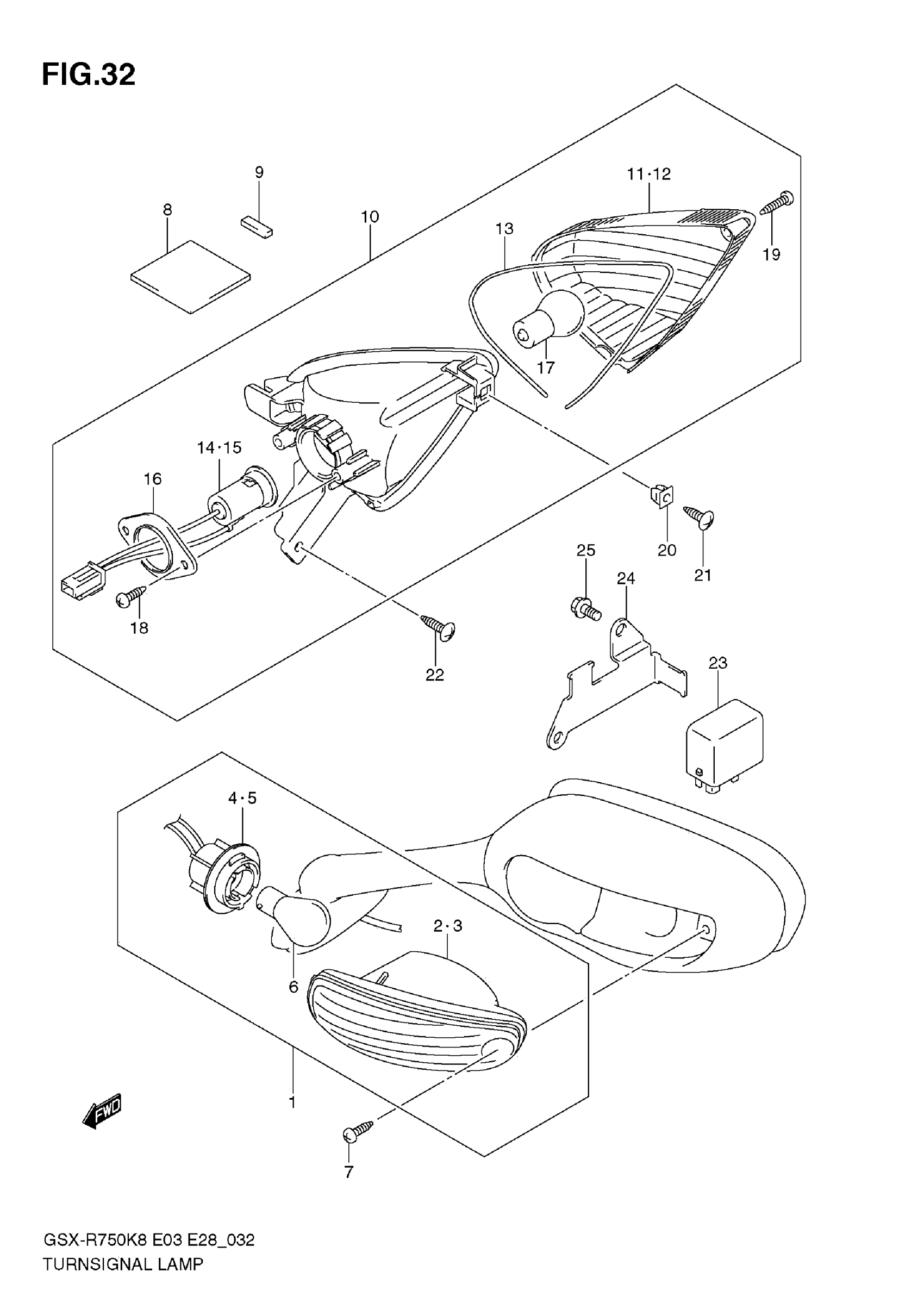

Suzuki GSX-R750K8 (2009) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TURN SIGNAL,R

35601-41G00

$51.81

1

LAMP ASSY,FR TURN SIGNAL,L

35602-41G00

$51.81

2

.LAMP UNIT,R

35610-41G00

$50.15

3

.LAMP UNIT,L

35630-41G00

$34.90

4

.SOCKET,R

35618-10G50

$34.12

5

.SOCKET,L

35638-10G50

$32.85

6

BULB (12V21W)

09471-12186

$16.18

7

SCREW (4X20)

09132-04032

$1.98

8

TAPE, FRONT (50X50X5) | CUT AS REQUIRED (20X10X5)

33652-20C00

$2.80

9

TAPE,FR TURNSIGNAL (5X20X0.4)

94443-21H00

$4.47

10

LAMP ASSY, REAR, R

35603-21H00

$99.40

10

LAMP ASSY, REAR, L

35604-21H00

$107.98

11

LENS, R

35652-21H00

$29.87

12

LENS, L

35672-21H00

$36.58

13

GASKET

35653-21H00

$11.44

14

.SOCKET & CORD,R

35658-41G00

$36.30

15

.SOCKET & CORD,L

35678-41G00

$36.30

16

PLATE, REAR

35716-07A30

$11.18

17

BULB (12V21W)

09471-12186

$16.18

18

SCREW

03211-0412A

$0.73

19

SCREW

03212-04169

$1.36

20

NUT, REAR TURNSIGNAL

09148-04021

$1.43

21

SCREW, REAR

03541-0412A

$1.37

22

SCREW, REAR

03541-0512A

$1.37

23

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99

24

BRACKET, RELAY

38621-37H00

Unavailable

25

NUT, BRKT

01550-0612A

$1.97
