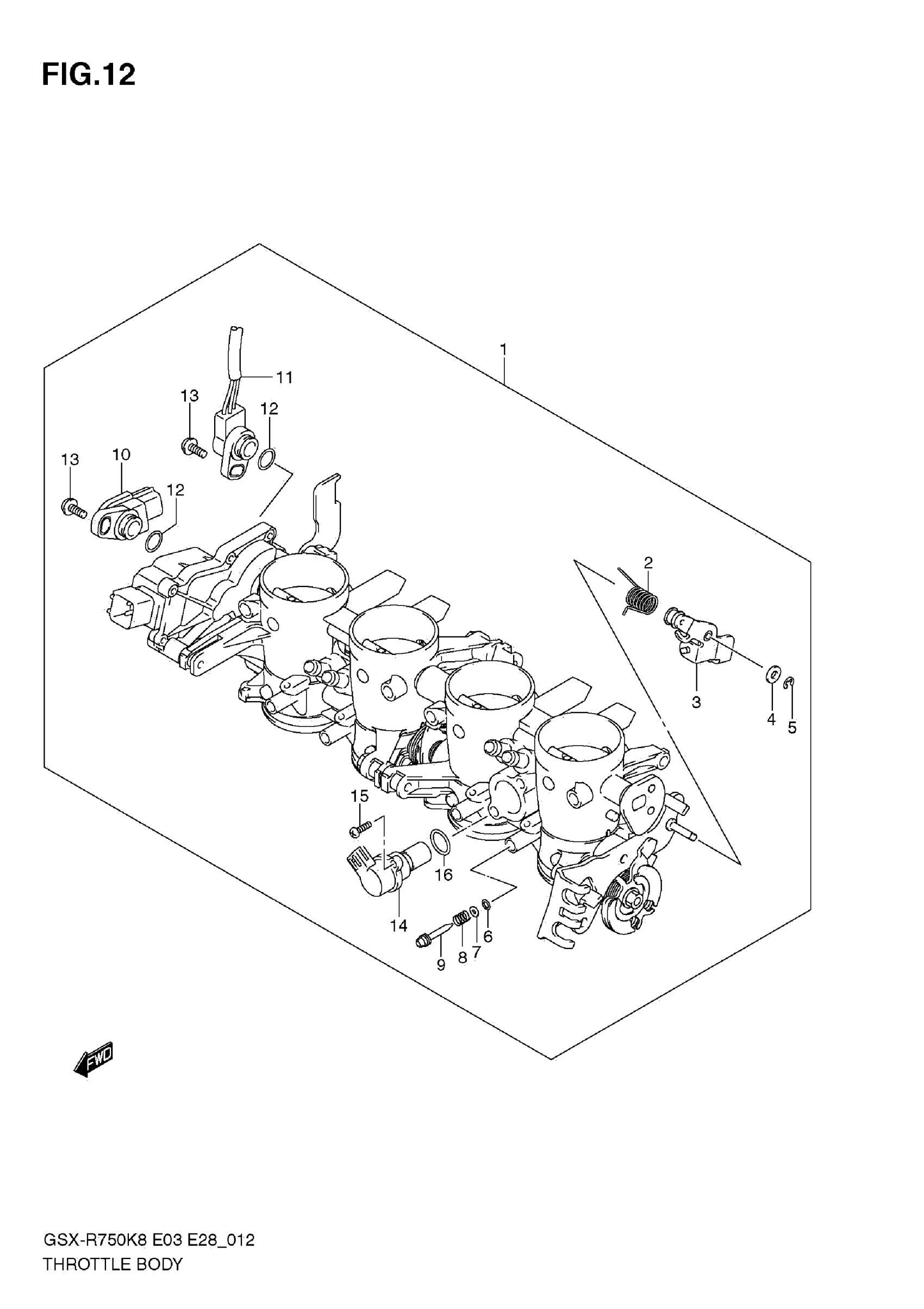

Suzuki GSX-R750K8 (2009) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROT | E3,E28 This part replaces 13406-38H00.

13406-38H01

Unavailable

1

BODY ASSY,THROT | E33 This part replaces 13406-38H10.

13406-38H11

Unavailable

2

TORSION SPRING

13426-29G00

$6.05

3

LEVER ASSY

13420-37H00

Unavailable

4

PACKING

13427-29G00

$3.54

5

E RING

13424-29G00

$3.48

6

O-RING This part replaces 13295-29900.

13295-29901

$4.34

7

WASHER

13606-47A00

$3.28

8

SPRING,THROTTLE SCREW

13268-48700

$4.34

9

SCREW

13269-33E00

$11.10

10

SENSOR ASSY

13580-29G00

$119.65

11

SENSOR ASSY, THROTTLE SUB This part replaces 13580-40F30.

13580-40F31

$212.03

12

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

13

SCREW

13605-02F00

$3.71

14

VALVE,ISC This part replaces 18117-37H00.

18117-37H01

$392.00

15

SCREW

13605-37H00

Unavailable

16

O RING

13679-37H00

$7.27
