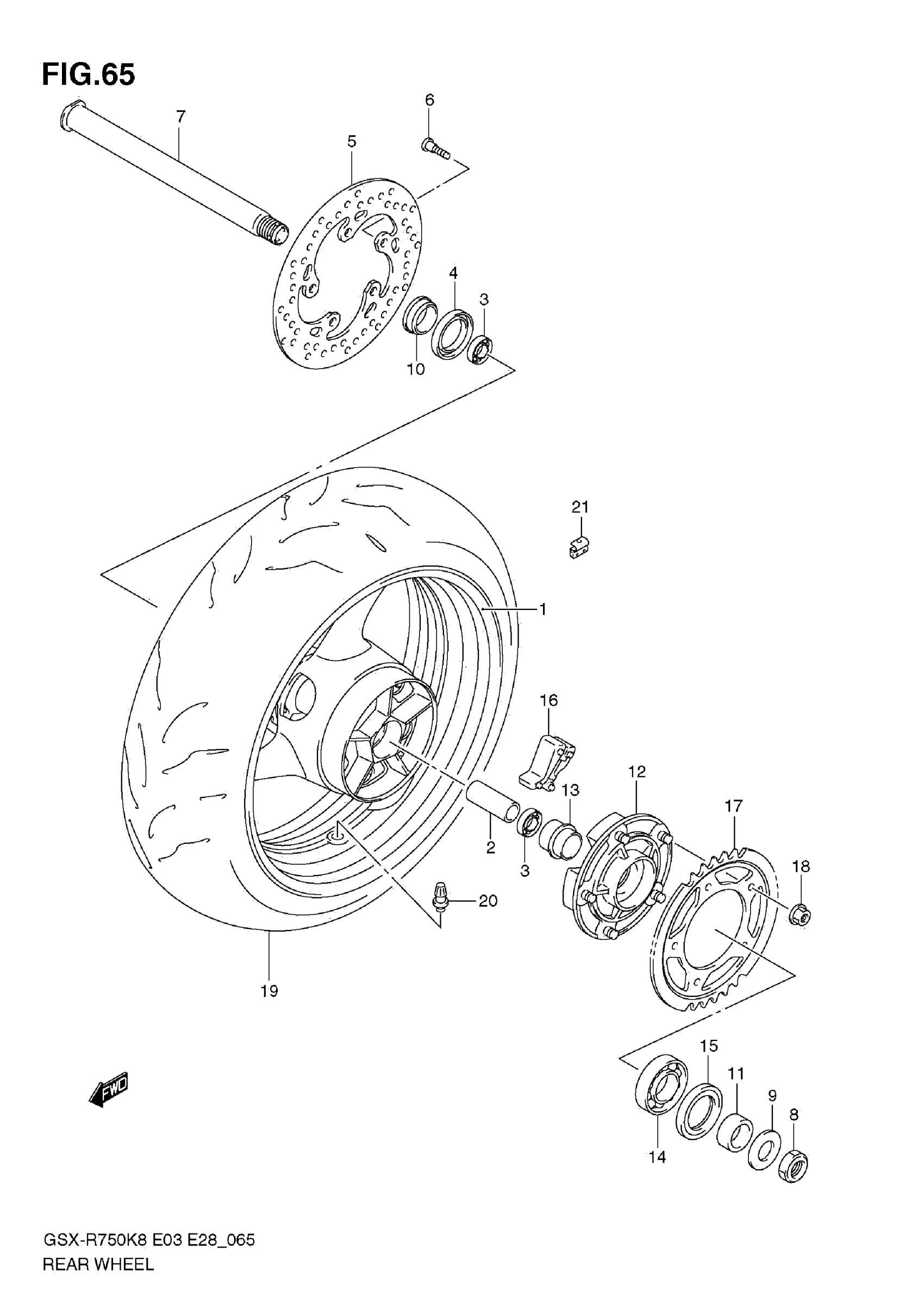

Suzuki GSX-R750K8 (2009) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (17M/CXMT5.50) (BLACK) | MODEL K8:FOR CRU,ECE MODEL K9:EAH,FGG,GLR

64111-37H00-019

$1,509.01

1

WHEEL, REAR (17M/CXMT5.50) (BLUE) | MODEL K8:FOR CWH

64111-37H00-YLY

Unavailable

1

WHEEL, REAR (17M/CXMT5.50) (SILVER) | MODEL K9:FOR CRU

64111-37H00-YMY

Unavailable

2

SPACER, HUB BEARING

64731-01H00

$69.90

3

BEARING This part replaces 09262-28043.

09262-28063

$19.52

4

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.19

5

DISC,RR BRAKE

69211-18G00

$355.08

6

BOLT

09106-08160

$3.22

7

AXLE,RR

64711-49G00

$189.55

8

NUT

09159-25003

$28.75

9

WASHER

09160-25070

$4.30

10

SPACER,REAR AXLE,R This part replaces 64741-35F00.

64741-35F10

$12.34

11

SPACER, AXLE LH

64751-35F00

$20.98

12

DRUM, REAR SPROCKET

64610-44G00

$347.33

13

RETAINER, SPROCKET DRUM

64733-35F00

$24.36

14

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$35.55

15

SEAL (39X65X7)

09285-39001

$9.58

16

ABSORBER, HUB SHOCK

64651-44G00

$16.70

17

SPROCKET,REAR,45T-525 (NT:45)

64511-39F00

$100.22

18

NUT

08319-3110A

$2.73

19

TIRE, REAR, 180/55 ZR17M/C (73W)(BRIDGESTONE) | BATTLAX BT016R E

65110-38H00

Unavailable

20

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

21

BALANCER, WHEEL NO.1

55411-22H00

$9.70

21

BALANCER, WHEEL NO.2

55412-22H00

$11.37

21

BALANCER, WHEEL NO.3

55413-22H00

$12.93
