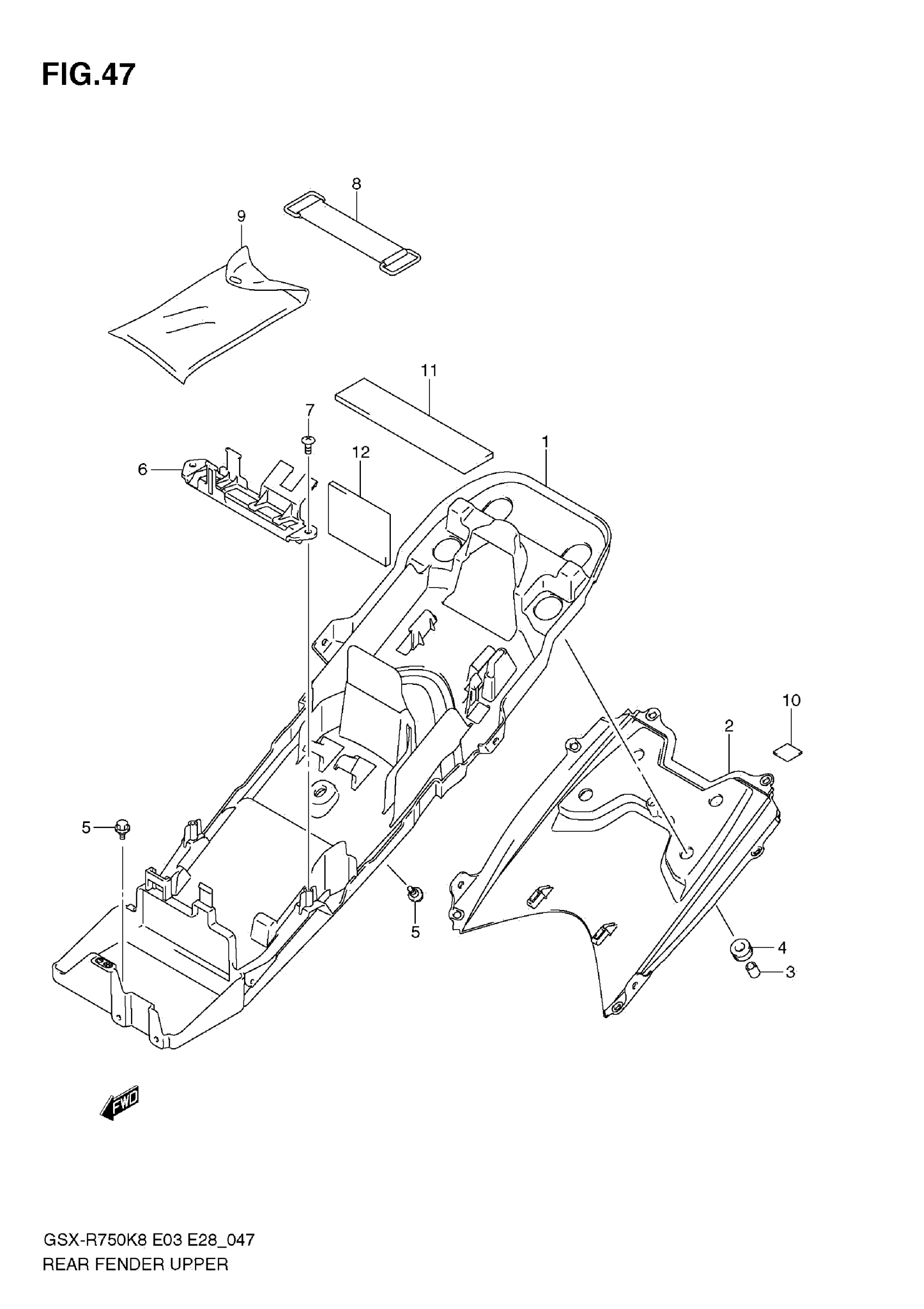

Suzuki GSX-R750K8 (2009) REAR FENDER UPPER Diagram

#

Description
Price

1

FENDER, REAR UPPER

63111-37H00

Unavailable

2

COVER, UPPER (BLACK) | MODEL K8 FOR CRU

63112-37H00-019

$156.04

2

COVER, UPPER (WHITE) | MODEL K8 FOR CWH

63112-37H00-YBD

Unavailable

2

COVER,RR FENDER | MODEL K8 FOR ECE This part replaces 63112-37H00-YLF.

63112-37H00-13L

$89.50

2

COVER,RR FENDER | MODEL K9 FOR CRU This part replaces 63112-37H00-YKV.

63112-37H00-13L

$89.50

2

COVER, UPPER (WHITE) | MODEL K9 FOR EAH

63112-37H00-YPA

Unavailable

2

COVER, UPPER (GOLD) | MODEL K9 FOR FGG

63112-37H00-YMG

Unavailable

2

COVER,RR FENDER | MODEL K9 FOR GLR This part replaces 63112-37H00-YSF.

63112-37H00-13L

$89.50

3

SPACER

09180-06268

$2.19

4

CUSHION

09320-09016

$1.97

5

BOLT

63161-43E10

$5.47

6

BRACKET, PARTS HOLDER

47414-37H00

$14.34

7

SCREW

03541-0516A

$1.49

8

BAND, TOOL

09462-00034

$4.24

9

TOOL ASSY This part replaces 09800-21039.

09800-21089

$69.16

10

CUSHION (10X10X1)

63115-37H00

$3.64

11

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

12

CUSHION

63116-37H00

Unavailable
