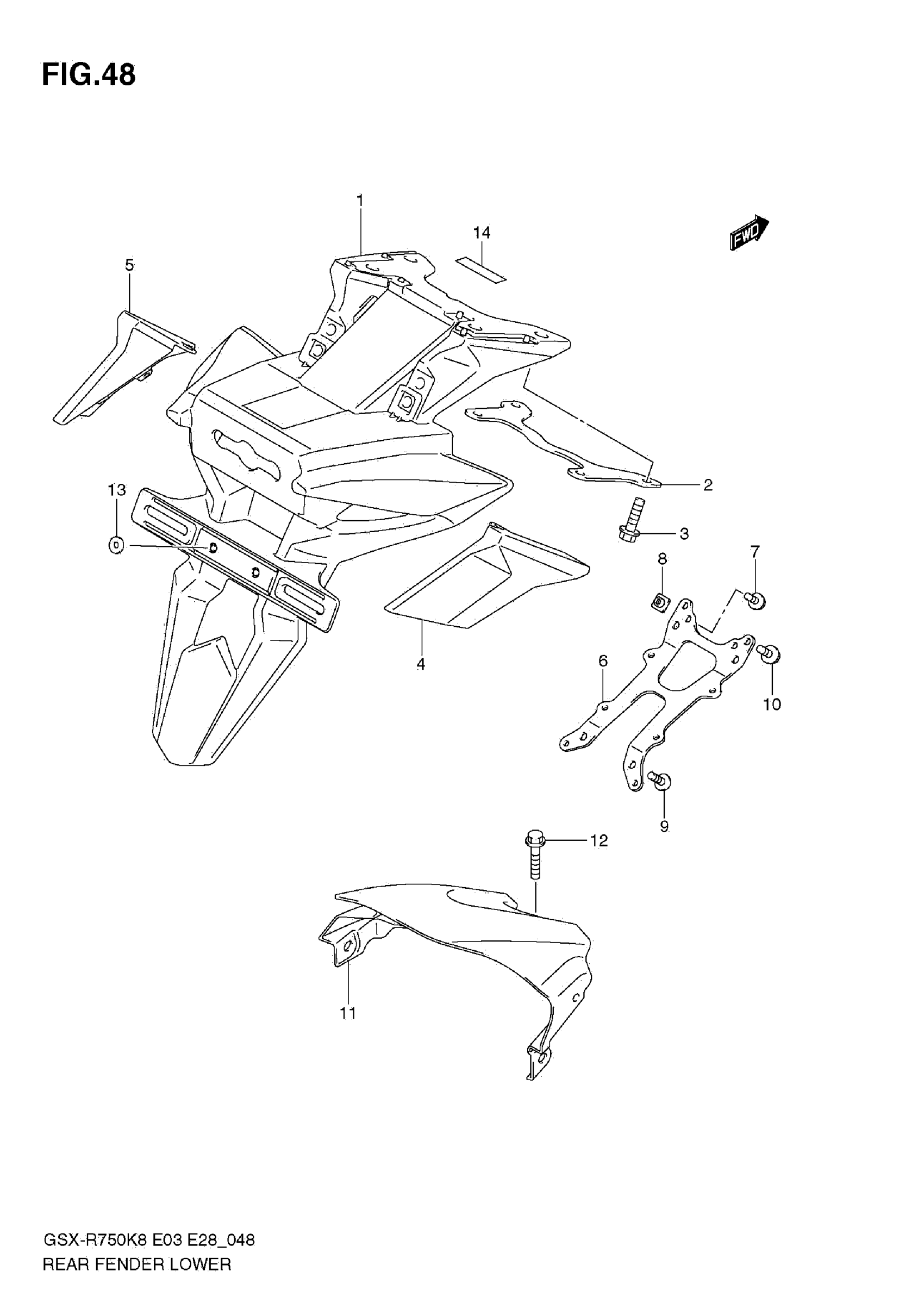

Suzuki GSX-R750K8 (2009) REAR FENDER LOWER Diagram

#

Description
Price

1

FENDER, REAR LOWER

63113-37H00

$166.30

2

PLATE, REAR FENDER

63122-37H00

Unavailable

3

BOLT

09103-06282

$2.72

4

COVER, REAR RH (SILVER)

63170-37H00-YMC

$58.12

5

COVER, REAR LH (SILVER)

63180-37H00-YMC

$70.32

6

BRACKET, REAR FENDER

63121-37H00

$65.15

7

BOLT, BRACKET

09139-06108

Unavailable

8

NUT

09152-06024

$3.04

9

SCREW, REAR

03541-0616B

$3.00

10

BOLT, REAR COVER

07120-0510B

$3.32

11

FENDER, LOWER

63114-01H02

$61.17

12

BOLT

09103-06302

$2.80

13

WASHER, LICENSE PLATE

08322-0106A

$1.83

14

CUSHION, COVER

94423-03H00

Unavailable
