Description

Price

1

CALIPER ASSY, REAR

69100-21H00-999

$637.43

2

PISTON SET

69100-01860

$80.57

3

SEAL SET, PISTON

69102-05880

$18.63

4

SPRING, PAD

69115-44G00

$19.85

5

PIN, BOLT

69105-44G00

$13.86

6

BOOT, AXLE

59112-44B00

$8.52

7

BOLT

69182-44G00

$11.90

8

SLEEVE

69185-44G00

$24.37

9

BOOT, SLEEVE

69186-44G00

$13.01

10

BRACKET

69150-21H00

$123.38

11

RETAINER

69116-44G00

$10.46

12

PIN, PAD

59141-40F00

$36.85

13

BLEEDER

59121-18410

$8.35

14

CAP, BLEEDER PLUG

55156-66310

$4.94

15

PAD SET

69101-44810

$38.12

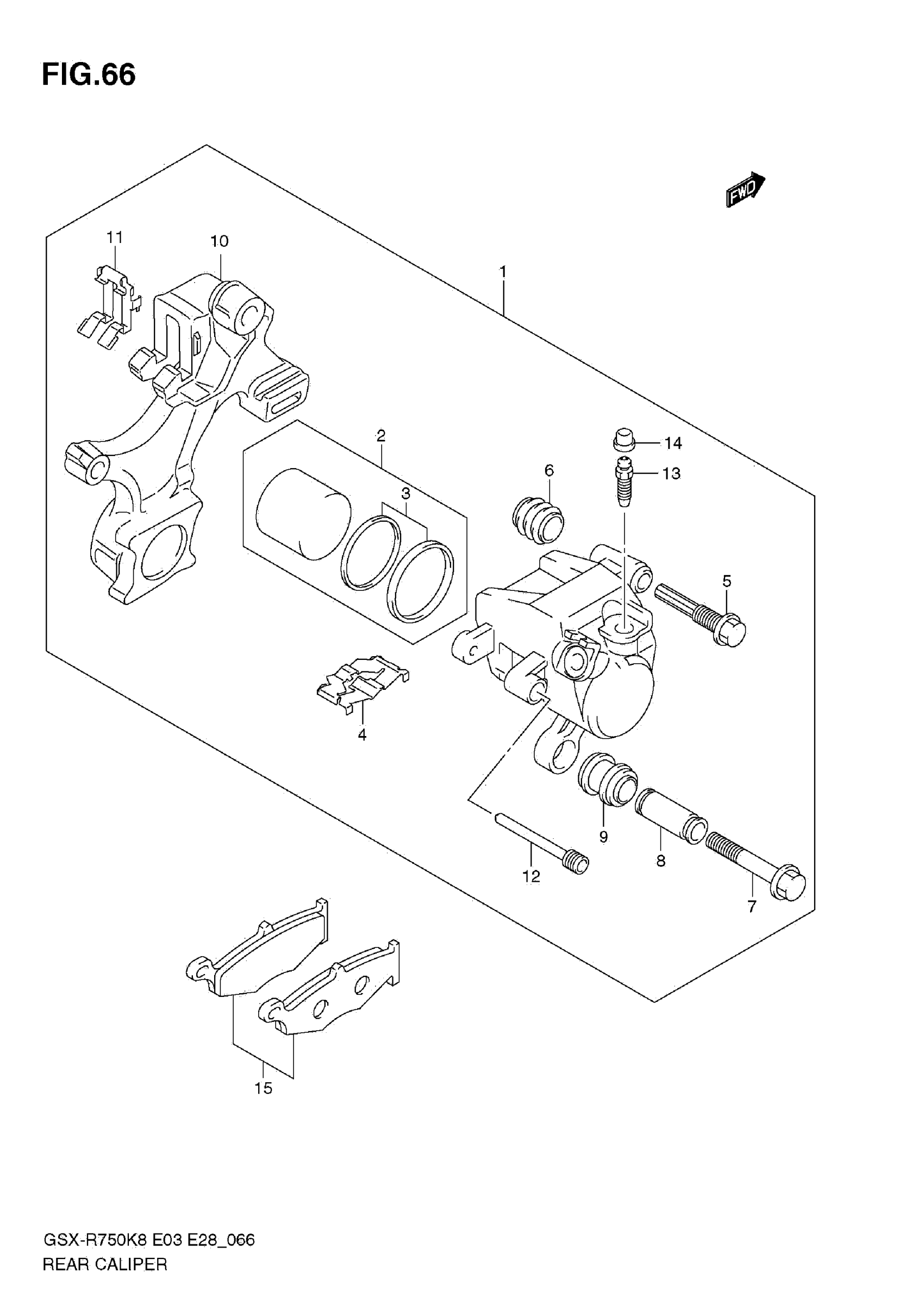

Suzuki GSX-R750K8 (2009) REAR CALIPER Diagram
