Description

Price

1

CALIPER ASSY, REAR

69100-21H00-999

$583.83

2

PISTON SET

69100-01860

$71.38

3

SEAL SET, PISTON

69102-05880

$18.94

4

SPRING, PAD

69115-44G00

$17.58

5

PIN, BOLT

69105-44G00

$14.08

6

BOOT, AXLE

59112-44B00

$8.91

7

BOLT

69182-44G00

$12.10

8

SLEEVE

69185-44G00

$21.58

9

BOOT, SLEEVE

69186-44G00

$13.22

10

BRACKET

69150-21H00

$109.85

11

RETAINER

69116-44G00

$10.93

12

PIN, PAD

59141-40F00

$37.45

13

BLEEDER

59121-18410

$8.73

14

CAP, BLEEDER PLUG

55156-66310

$5.17

15

PAD SET

69101-44810

$41.62

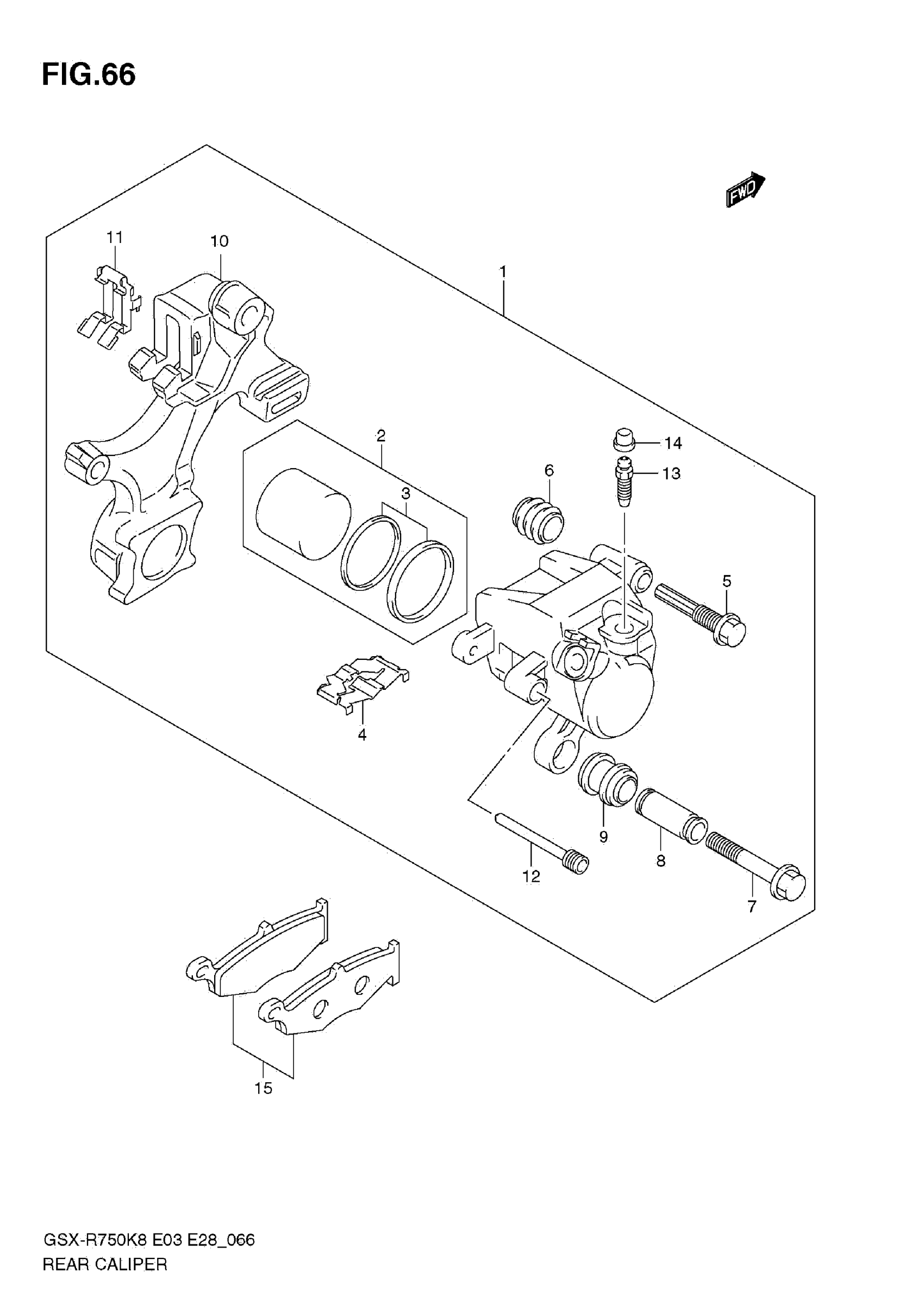

Suzuki GSX-R750K8 (2009) REAR CALIPER Diagram
