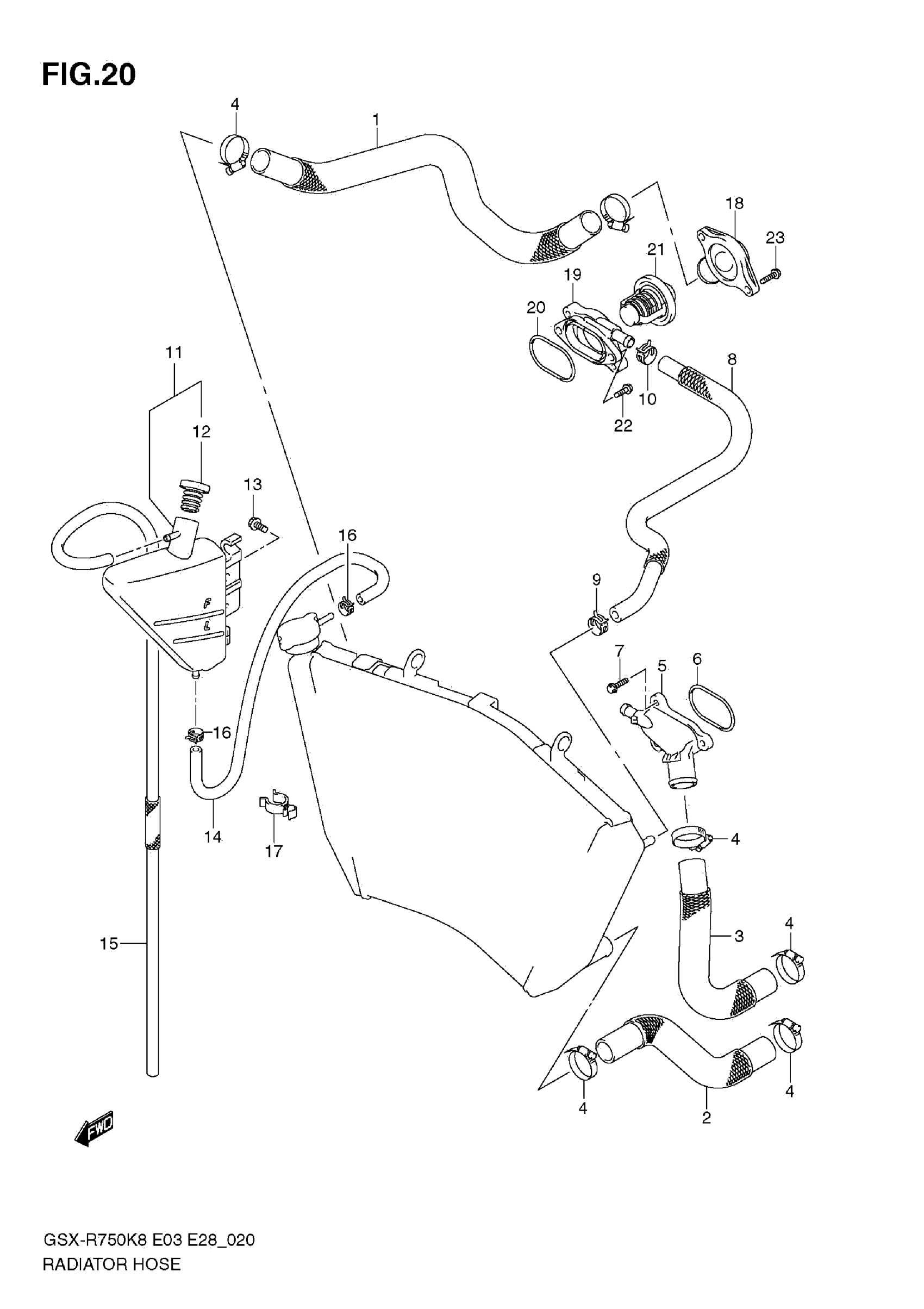

Suzuki GSX-R750K8 (2009) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-01H00

$60.47

2

HOSE, RADIATOR OUTLET

17852-01H00

$37.90

3

HOSE, CYLINDER INLET

17853-01H00

$33.54

4

CLAMP

09402-38512

$11.11

5

CONNECTOR,CYL WATER INLET

17861-01H00

$76.42

6

O-RING,CYL WATER CONNECTOR

17863-01H00

$6.74

7

BOLT

01547-0620A

$2.10

8

HOSE, WATER BYPASS

17854-01H10

$43.58

9

CLIP This part replaces 09401-12409.

09401-12414

$3.09

10

CLIP

09401-14403

$5.17

11

TANK ASSY, RESERVOIR

17910-37H00

$79.47

12

.CAP,RESERVOIR TANK

17931-02FA0

$5.32

13

BOLT

09111-06085

$4.28

14

HOSE

17981-18G00

$14.57

15

HOSE,RESERVOIR TANK OVFL

17982-37H00

$20.05

16

CLIP

09401-08411

$1.82

17

CLAMP

09404-06429

$1.88

18

COVER,THERMOSTAT

17661-37H00

$41.02

19

CONNECTOR,THERMOSTAT

17662-01H00

$105.67

20

O-RING,THERMOSTAT CONNECTOR

17663-01H00

$6.74

21

THERMOSTAT,WTR (82<-C)

17670-76G00

$35.20

22

BOLT

01547-0620A

$2.10

23

BOLT

01550-0625A

$2.01
