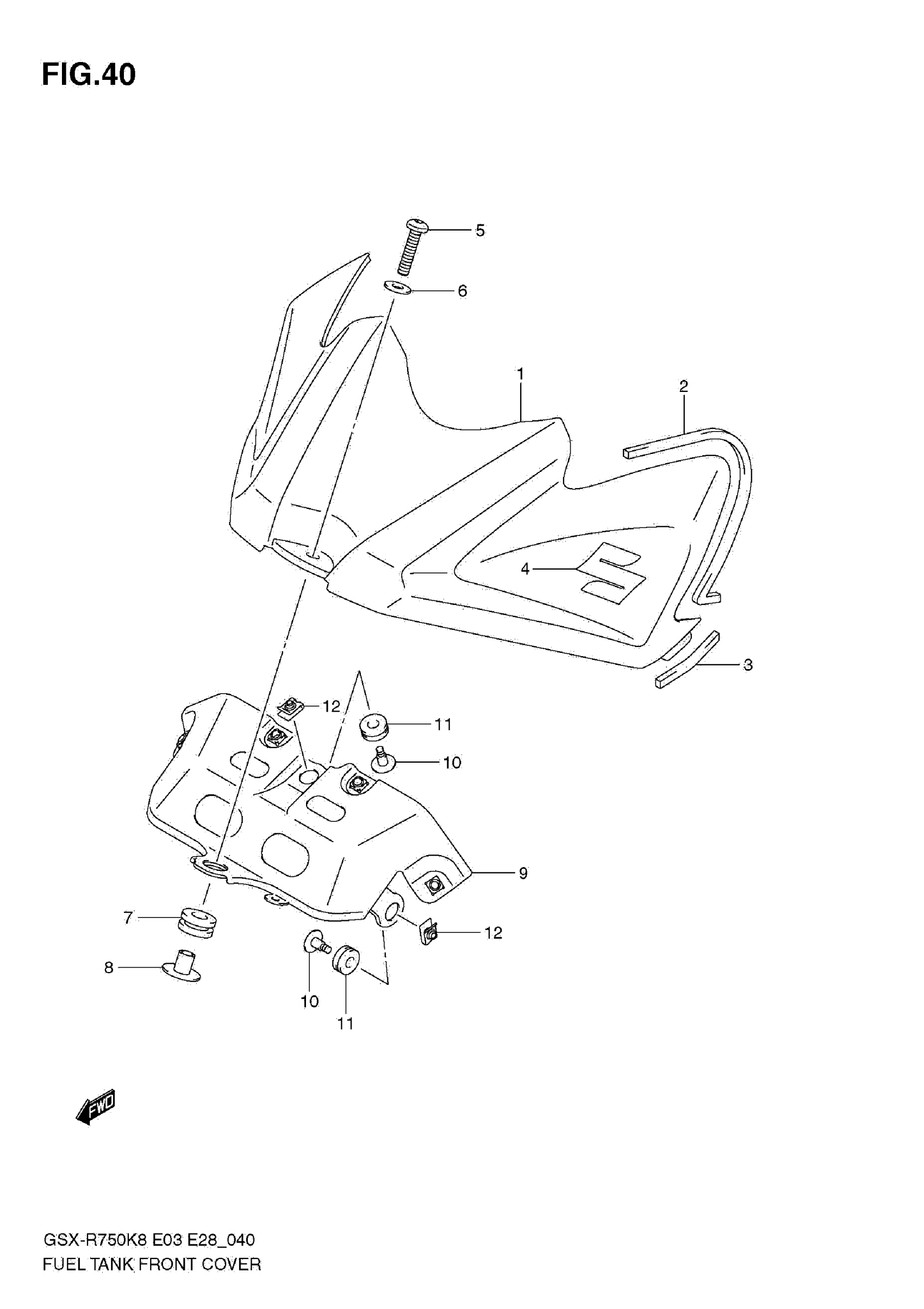

Suzuki GSX-R750K8 (2009) FUEL TANK FRONT C0VER (MODEL K8) Diagram

COVER, FUEL TANK FRONT (BLACK) | FOR CRU

44291-37H00-YKV

Unavailable

COVER, FUEL TANK FRONT (BLUE) | FOR CWH

44291-37H00-YKY

$320.52

COVER, FUEL TANK FRONT(ORANGE) | FOR ECE

44291-37H00-YME

Unavailable

CUSHION, UPPER

44277-37H00

$5.18

CUSHION, SIDE

44278-37H00

$4.52

EMBLEM

68111-18G20

$32.30

BOLT, FRONT

09106-08156

$7.83

WASHER

09160-08130

$2.03

CUSHION This part replaces 09320-12053.

09320-12092

$3.37

SPACER

09180-08174

$6.14

BRACKT, FRONT

44520-37H00

$69.38

SCREW

09139-05078

$3.49

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

NUT

09148-05052

$3.37
