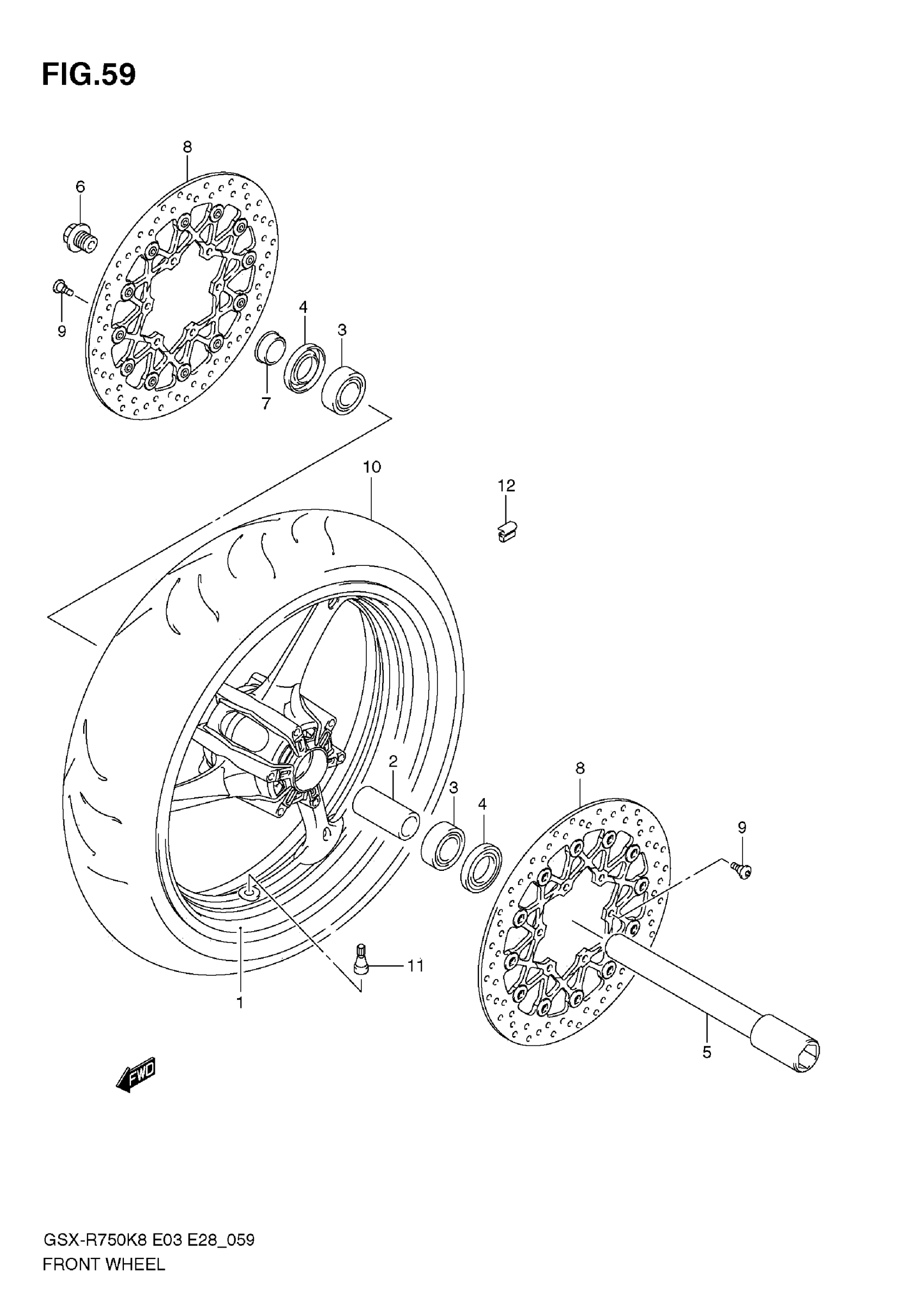

Suzuki GSX-R750K8 (2009) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (17M/CXMT3.50) (BLACK) | MODEL K8:FOR CRU,ECE MODEL K9:EAH,FGG,GLR

54111-37H00-019

$1,015.88

1

WHEEL, FRONT (17M/CXMT3.50) (BLUE) | MODEL K8:FOR CWH

54111-37H00-YLY

Unavailable

1

WHEEL, FRONT (17M/CXMT3.50) (SILVER) | MODEL K9:FOR CRU

54111-37H00-YMY

Unavailable

2

SPACER,FR HUB BEARING

54731-35F10

$37.45

3

BEARING (25X52X15)

09262-25061

$33.12

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

AXLE, FRONT

54711-41G00

$161.60

6

BOLT, FRONT AXLE This part replaces 54712-41G00.

54712-41G10

$16.19

7

SPACER, FRONT AXLE, RH This part replaces 54751-41G00.

54751-41G10

$19.66

8

DISC,FR BRAKE This part replaces 59210-37H00.

59210-37H01

$477.18

9

BOLT

09106-06124

$3.42

10

TIRE, FRONT, 120/70 ZR17M/C (58W)(BRIDGESTONE) | BATTLAX BT016F E

55110-38H00

Unavailable

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

12

BALANCER, WHEEL NO.1

55411-22H00

$8.60

12

BALANCER, WHEEL NO.2

55412-22H00

$10.07

12

BALANCER, WHEEL NO.3

55413-22H00

$11.47
