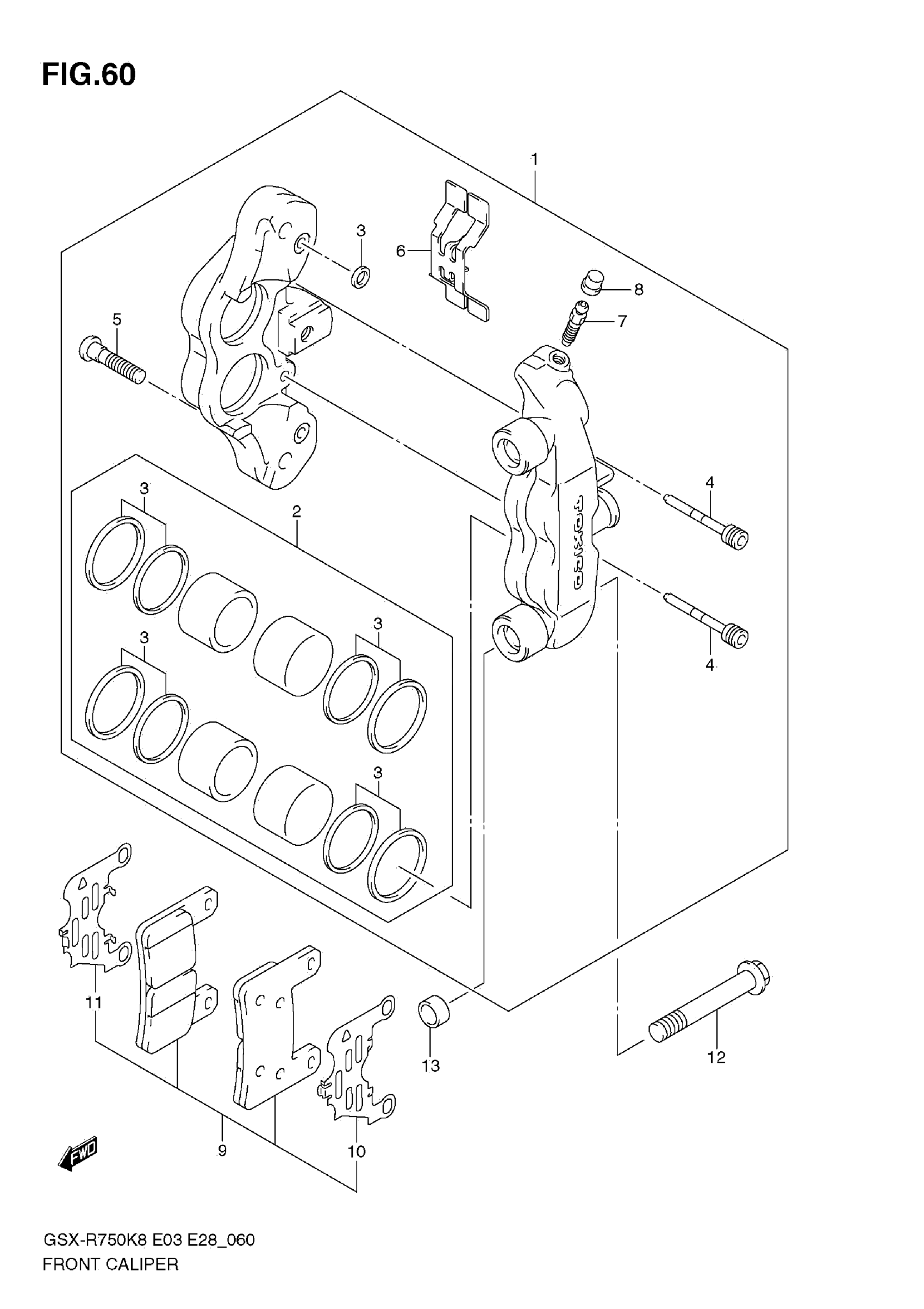

Suzuki GSX-R750K8 (2009) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-41G30-999

$713.07

1

CALIPER ASSY, FRONT LH

59300-41G30-999

Unavailable

2

PISTON SET

59100-41820

$289.17

3

SEAL SET, PISTON

59100-41810

$74.07

4

.PIN This part replaces 59141-41G00.

59141-41G10

$25.82

5

BOLT

59145-18G00

$11.20

6

SPRING, PAD

59151-29G00

$12.28

7

BLEEDER

59121-18410

$8.35

8

CAP

55156-66310

$4.94

9

PAD & SHIM SET

59100-29840

$55.69

10

SHIM

59171-41G00

$17.40

11

SHIM

59172-41G00

$17.40

12

BOLT (10X30)

09103-10392

$4.55

13

PIN, CALIPER

59151-41G00

$11.46
