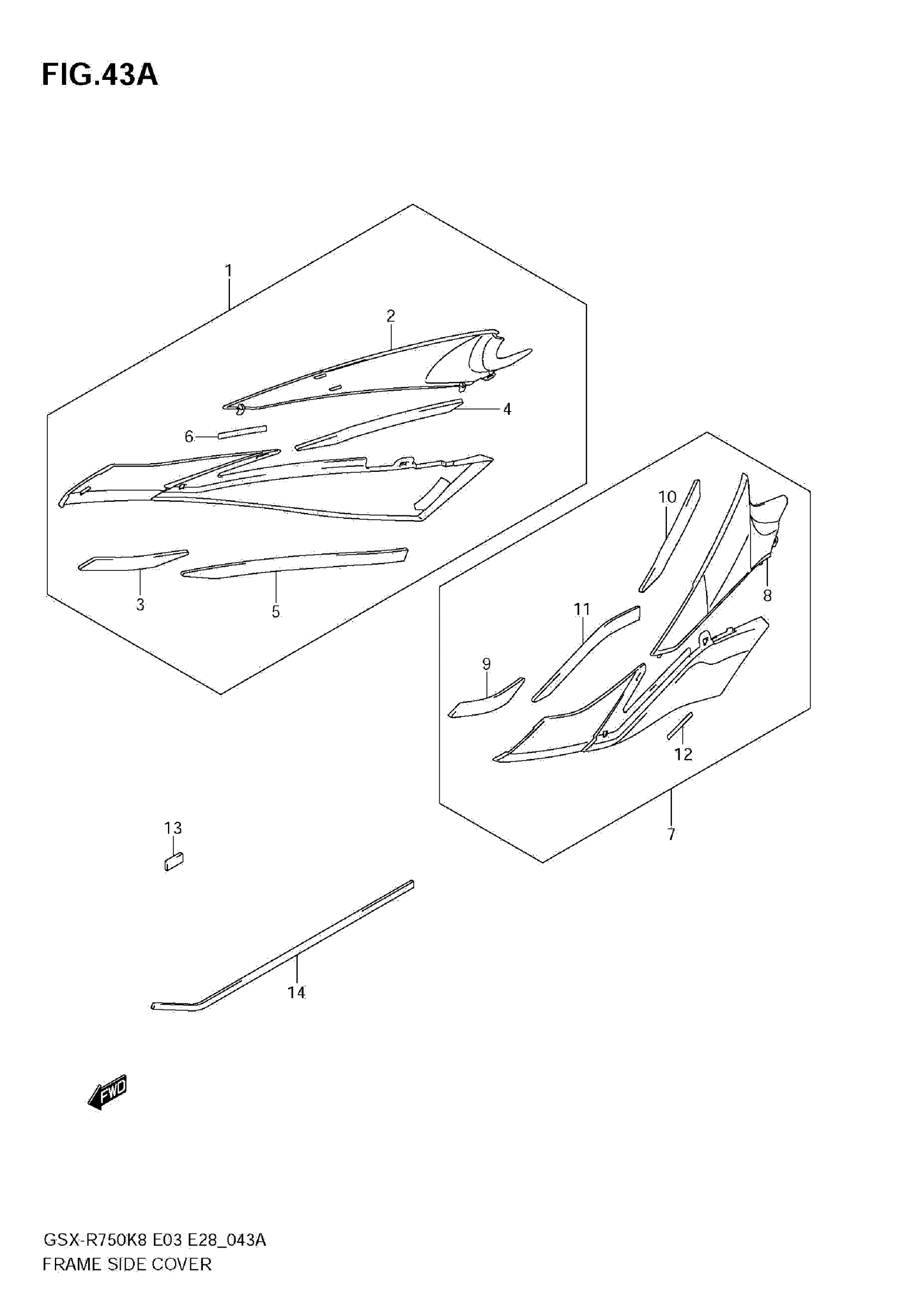

Suzuki GSX-R750K8 (2009) FRAME SIDE COVER (MODEL K9) Diagram

#

Description
Price

1

COVER, FRAME SIDE RH (BLACK)

47410-37H00-YKV

Unavailable

2

COVER, UPPER RH (BLACK)

47411-37H00-YKV

Unavailable

3

CUSHION, FRONT RH

47412-37H00

$19.15

4

CUSHION, UPPER RH

47413-37H00

$16.87

5

CUSHION, LOWER RH

47415-37H00

$24.13

6

CUSHION, CENTER

47416-37H00

$8.60

7

COVER, FRAME SIDE LH (BLACK)

47510-37H00-YKV

Unavailable

8

COVER, UPPER LH (BLACK)

47511-37H00-YKV

Unavailable

9

CUSHION, FRONT LH

47512-37H00

$19.15

10

CUSHION, UPPER LH

47513-37H00

$16.87

11

CUSHION, LOWER LH

47515-37H00

$24.13

12

CUSHION, CENTER

47416-37H00

$8.60

13

CUSHION (10X30X2)

44894-24A00

$1.72

14

CUSHION, UPPER

47412-21H00

$5.67
