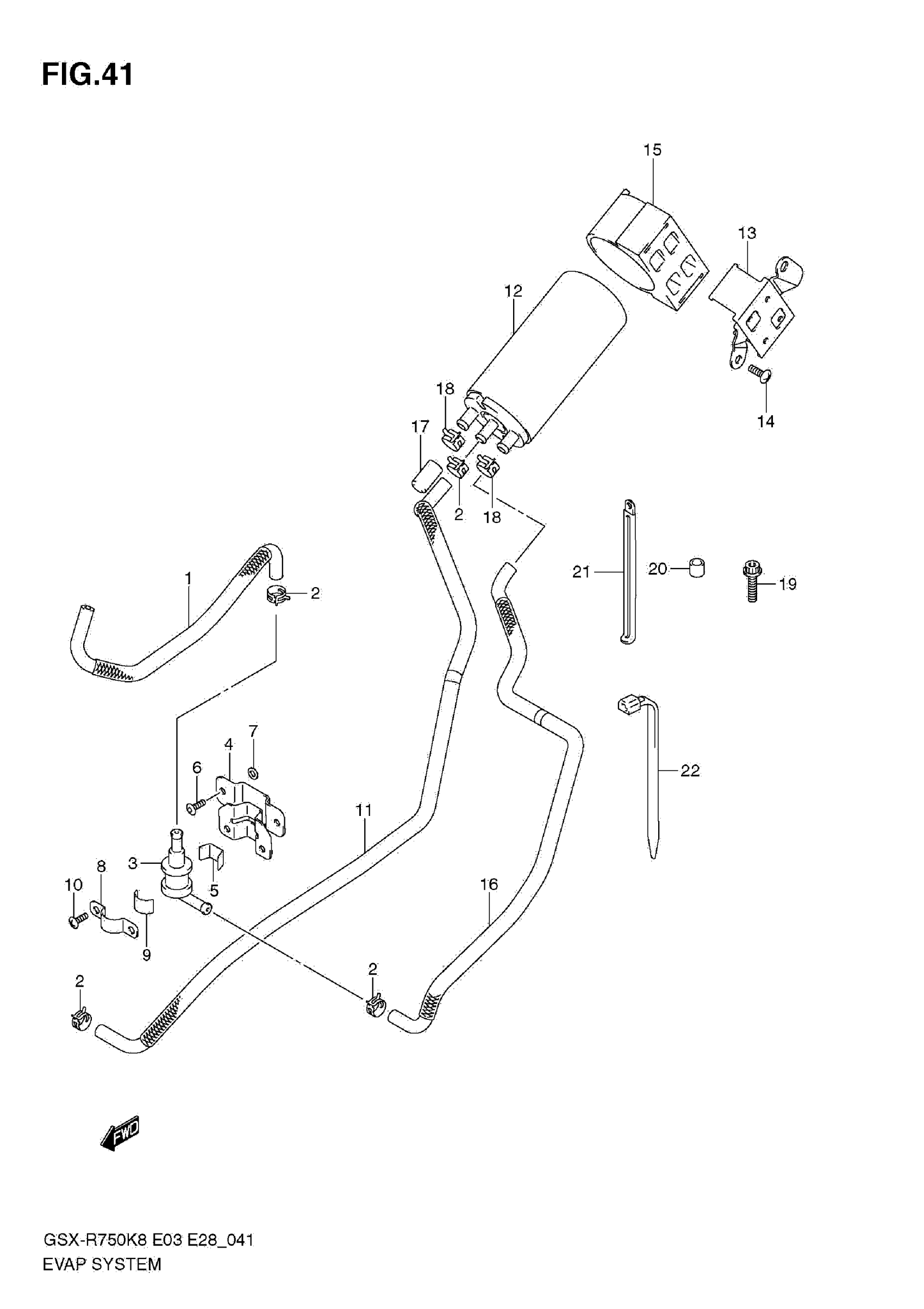

Find the part on the Evap System diagram for your 2009 Suzuki GSX-R750K8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX-R750K8 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, TANK & VALVE

44434-37H00

1
Out of stock

2

CLIP

09401-11413

5
Out of stock

3

VALVE FUEL TANK BREATHER

44240-17C00

1
Out of stock

4

PLATE, VALVE NO.1

44890-18G00

1
Out of stock

5

CUSHION (10X30X2)

44894-24A00

1
Out of stock

6

RIVET

09229-04038

2
Out of stock

7

WASHER

08322-0104A

2
Out of stock

8

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

1
Out of stock

9

CUSHION (10X30X2)

44894-24A00

1
Out of stock

10

SCREW

02142-0408A

2
Out of stock

11

HOSE, CANISTER

44435-37H00

1
Out of stock

12

CANISTER

17210-15H00

1
Out of stock

13

BRACKET

44880-37H00

1
Out of stock

14

BOLT

09139-06139

2
Out of stock

15

CUSHION, CANISTER

44883-37H00

1
Out of stock

16

HOSE, PURGE

44436-37H00

1
Out of stock

17

CAP

09251-07003

1
Out of stock

18

CLIP

09401-12404

2
Out of stock

19

BOLT, CLAMP

07120-0620A

1
Out of stock

20

SPACER

09180-06286

1
Out of stock

21

CLAMP, HOSE

09404-06435

1
Out of stock

22

CLAMP

09407-18402

1
Out of stock
