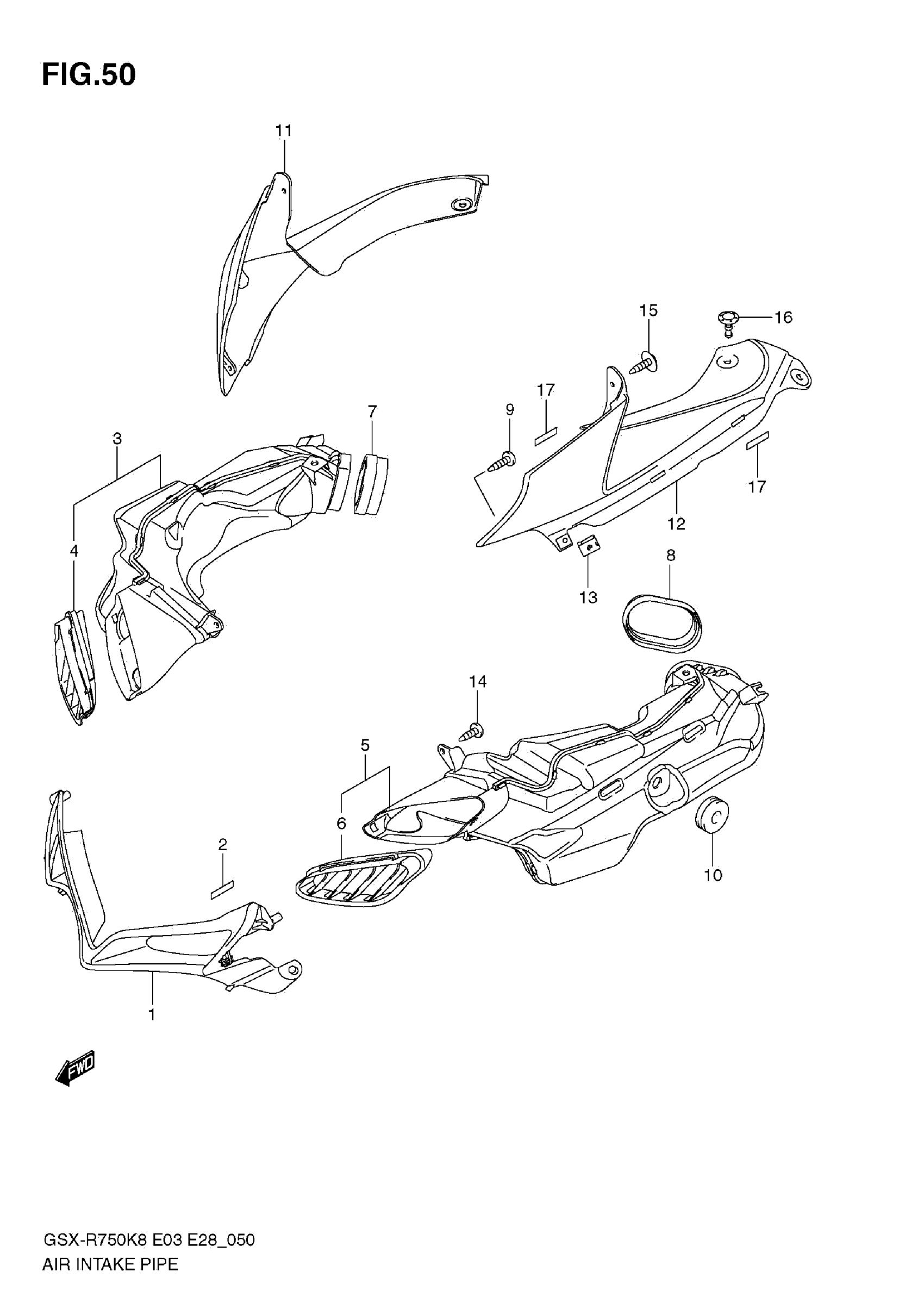

Suzuki GSX-R750K8 (2009) AIR INTAKE PIPE (MODEL K8) Diagram

#

Description
Price

1

COVER,INTAKE This part replaces 94671-37H00-YKV.

94671-37H01-YKV

$184.03

2

TAPE

94443-06G00

$2.97

3

PIPE, INTAKE RH

94402-37H00

$168.75

4

NET, RH

94412-37H00

$18.13

5

PIPE, INTAKE LH

94403-37H00

$168.75

6

NET, LH

94413-37H00

$18.30

7

MOLDING, RH

94423-01H00

$18.81

8

MOLDING, LH

94433-01H00

$18.28

9

SCREW

03541-0516B

$1.77

10

CUSHION

09320-08028

$2.80

11

COVER,INTAKE,R | FOR CRU This part replaces 94672-37H00-YKV.

94672-37H01-YKV

$182.33

11

COVER,INTAKE,R | FOR CWH This part replaces 94672-37H00-YBD.

94672-37H01-YBD

$206.58

11

COVER,INTAKE RH | FOR ECE This part replaces 94672-37H00-YME.

94672-37H01-13L

Unavailable

12

COVER,INTAKE,L | FOR CRU This part replaces 94682-37H00-YKV.

94682-37H01-YKV

$182.33

12

COVER, INTAKE SIDE LH (WHITE) | FOR CWH

94682-37H00-YBD

$253.28

12

COVER,INTAKE LH | FOR ECE This part replaces 94682-37H00-YME.

94682-37H01-13L

$103.45

13

NUT

09148-05052

$3.04

14

SCREW, FRONT

03541-0512B

$1.77

15

SCREW, CENTER

09132-05050

$1.89

16

CLIP, REAR

94479-35F00

$5.14

17

TAPE

94443-06G00

$2.97
