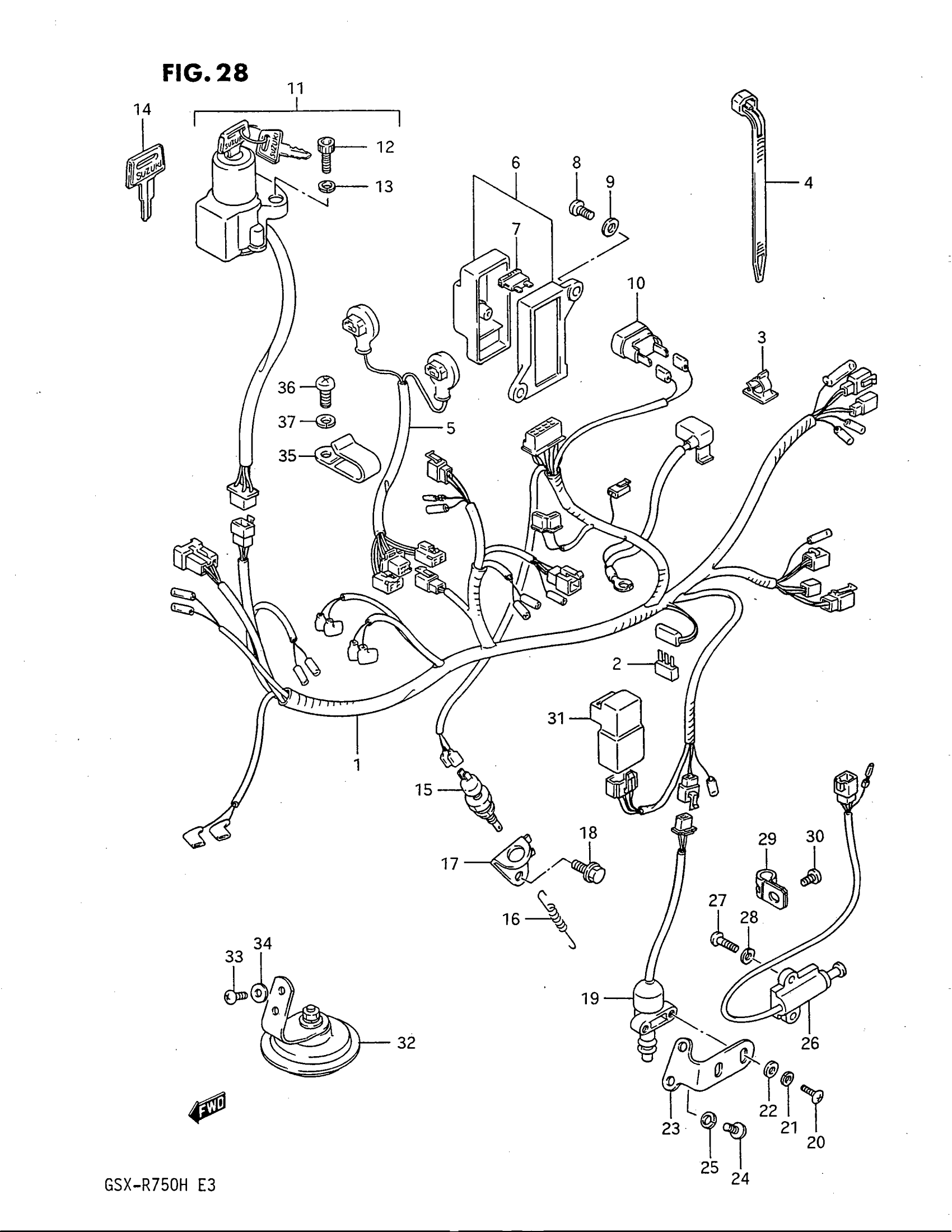

Suzuki GSX-R750G (1987) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL G This part replaces 36610-27A30.

36610-27A82

Unavailable

1

HARNESS, WIRING | MODEL H; Includes Item(s) 2

36610-27A70

Unavailable

2

.DIODE | MODEL H This part replaces 36611-38A00.

36611-38A10

$13.16

3

CLAMP This part replaces 09403-07315.

09403-04310

$5.35

4

CLAMP (L:95)

09407-11401

$2.63

4

CLAMP (L:125)

09407-14403

$2.26

4

CLAMP (L:165)

09407-18402

$2.19

4

CLAMP (L:235) This part replaces 09407-25403.

09407-25401

$4.66

5

WIRE,HEADLAMP L This part replaces 36856-06B11.

36856-06B02

Unavailable

6

BOX ASSY, FUSE | Includes Item(s) 7 This part replaces 36740-05A01.

36740-27A00

Unavailable

7

FUSE (10A)

09481-10101

$2.07

8

SCREW This part replaces 02112-06128.

02112-06127

$1.84

9

WASHER This part replaces 08322-21067.

08322-01067

$2.13

10

BREAKER ASSY, CIRCUIT

36750-05A00

$44.50

11

SWITCH ASSY, IGNITION | Includes Item(s) 12 - 13

37110-06B00

Unavailable

12

BOLT This part replaces 37152-47011.

07130-0616B

$2.39

13

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

14

KEY, BLANK | OPT

37145-16700

$13.74

15

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

16

SPRING This part replaces 09443-06056.

09443-06056-XC0

Unavailable

17

BRACKET, STOP LAMP SWITCH

43251-27A00

Unavailable

18

BOLT

09103-06119

Unavailable

19

SWITCH, SIDE STAND WARNING | MODEL G

37840-14A01

Unavailable

20

SCREW | MODEL G This part replaces 02112-05205.

02112-0520B

$1.84

21

LOCK WASHER | MODEL G This part replaces 08321-21055.

08321-0105A

$1.84

22

WASHER, FRONT | MODEL G This part replaces 08322-21055.

08322-0105A

$1.84

23

BRACKET, SIDE STAND SWITCH | MODEL G

42361-27A00

Unavailable

24

SCREW | MODEL G This part replaces 02112-06128.

02112-06127

$1.84

25

LOCK WASHER | MODEL G This part replaces 08321-21067.

08321-01067

$2.13

26

SWITCH ASSY,SID | MODEL H This part replaces 37840-06B00.

37840-26X52

$74.31

27

SCREW | MODEL H This part replaces 02112-06164.

02112-0616A

$1.49

28

LOCK WASHER | MODEL H This part replaces 08321-21064.

08321-0106A

$1.84

29

CLAMP | MODEL H

09403-07401

Unavailable

30

STOPPER, CL RLSE CAM SHAFT | MODEL H This part replaces 02142-06104.

02142-0610A

$1.49

31

RELAY ASSY, SIDE STAND | MODEL H This part replaces 38740-24B10.

38740-24X50

$45.20

32

HORN ASSY | MODEL G This part replaces 38500-06B00.

38500-06B01

Unavailable

32

HORN ASSY | MODEL H

38500-06B01

Unavailable

33

SCREW This part replaces 02112-06104.

02112-0610B

$1.84

34

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

35

CLAMP, HANDLE SWITCH WIRE

36619-06B00

Unavailable

36

SCREW This part replaces 02112-06125.

02112-0612A

$1.49

37

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84
