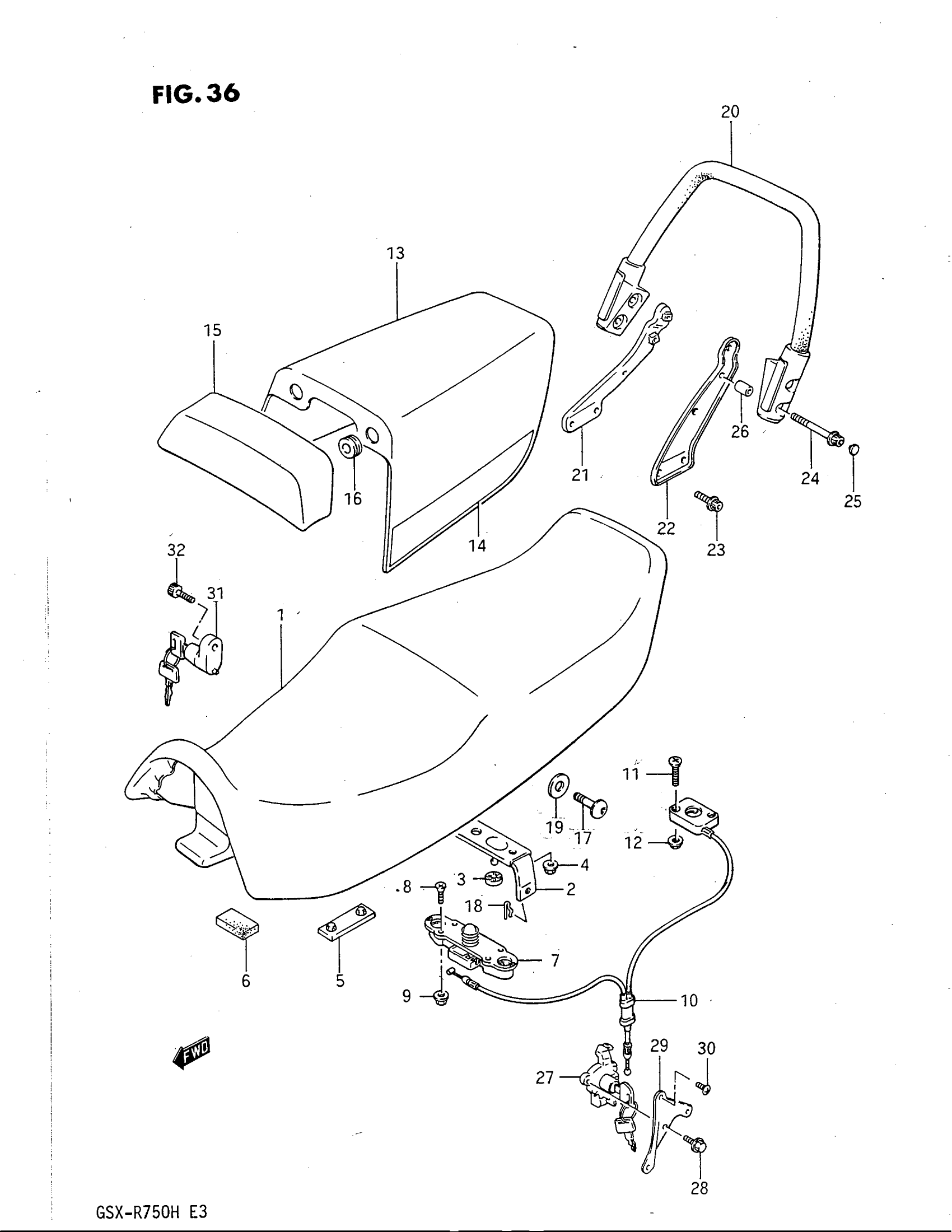

Suzuki GSX-R750G (1987) SEAT (MODEL G) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FOR 7GF This part replaces 45100-06B10-58D.

45100-06B01-58R

Unavailable

1

NO DESCRIPTION AVAILABLE | FOR 7JK; Includes Item(s) 2 - 6 This part replaces 45100-06B10-58E.

45100-06B01-58R

Unavailable

2

STRIKER, SEAT LOCK

45210-06B00

Unavailable

3

CUSHION, BOSS

45213-31300

$2.81

4

NUT This part replaces 08316-16066.

08316-1006B

$2.50

5

CUSHION

09321-08009

$3.05

6

CUSHION, BATTERY STOPPER

45255-27A00

Unavailable

7

BRACKET, SEAT SUPPORT CENTER

45220-13601

$80.52

8

SCREW, SEAT SUPPORT BRK This part replaces 02112-06305.

02112-0630A

$1.78

9

NUT This part replaces 08316-26065.

08316-2006A

$2.63

10

BRACKET, SEAT SUPPORT REAR

45220-06B00

Unavailable

11

SCREW This part replaces 02122-06255.

02122-0625A

$1.49

12

NUT This part replaces 08316-26065.

08316-2006A

$2.63

13

NO DESCRIPTION AVAILABLE | FOR 58D This part replaces 45550-06840-14L.

45550-06841-14L

Unavailable

13

NO DESCRIPTION AVAILABLE | FOR 58E; Includes Item(s) 14 - 19 This part replaces 45550-06840-019.

45550-06841-019

Unavailable

14

TAPE SET, TAIL BOX (BLUE) | FOR 14L

68650-27A20-08L

Unavailable

14

TAPE SET, TAIL BOX (WHITE) | FOR 019

68650-27A20-064

Unavailable

15

BACKREST, SEAT (BLACK) | FOR 14L This part replaces 46220-27A00-58D.

46220-27A01-58R

Unavailable

15

BACKREST, SEAT (BLACK) | FOR 019 This part replaces 46220-27A00-58E.

46220-27A01-58R

Unavailable

16

CUSHION

09320-12031

$2.34

17

BOLT

45186-06B00

Unavailable

18

CLIP

09385-06001

$3.10

19

WASHER

09160-10079

$3.93

20

NO DESCRIPTION AVAILABLE This part replaces 46210-27A01.

46210-27X00-019

Unavailable

21

PLATE, RH

46240-27A00

Unavailable

22

PLATE, LH

46250-27A00

Unavailable

23

BOLT This part replaces 07120-06168.

07120-06167

$3.16

24

BOLT This part replaces 09106-08061.

07120-0860B

$4.41

25

CAP This part replaces 09250-06008.

09250-06016

$1.96

26

SPACER, FRONT (8.5X14X21.50) This part replaces 09180-08125.

09180-08205

$3.49

27

LOCK SET, SEAT This part replaces 95700-27A00-KEY.

95700-27820

Unavailable

28

BOLT, FRONT This part replaces 07120-06205.

07120-0620B

$3.04

29

BRACKET, SEAT LOCK

45285-27A00

Unavailable

30

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

31

LOCK SET, HELMET This part replaces 95700-31300-KEY.

95700-31810

Unavailable

32

BOLT (6X12) This part replaces 09106-06055.

09106-06075

$2.48
