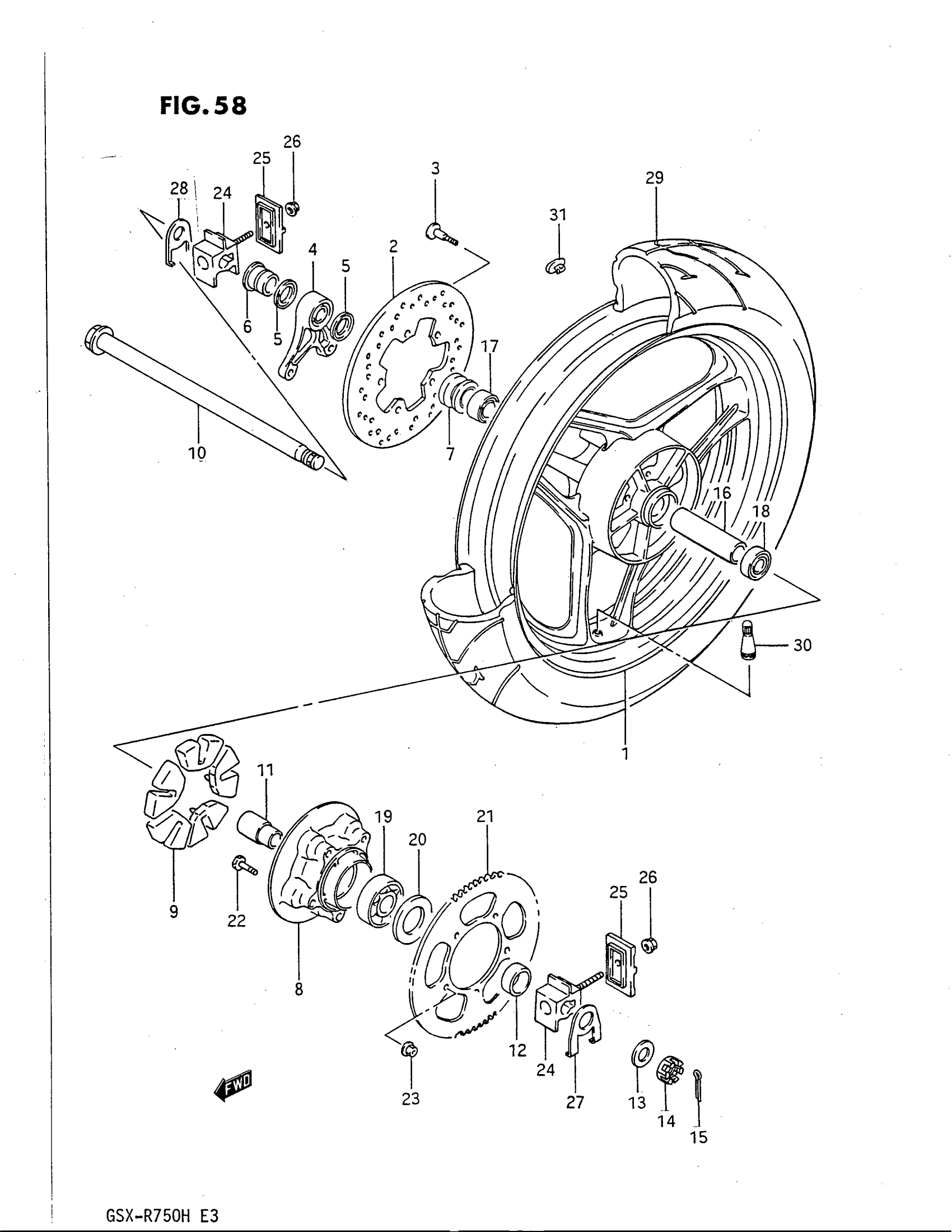

Suzuki GSX-R750G (1987) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (18XMT3.50) BLACK

64111-27A00-291

Unavailable

2

DISC, REAR BRAKE

69211-27A00

Unavailable

3

BOLT (8X33) This part replaces 09106-08062.

09106-08148

$4.80

4

BRACKET, REAR CALIPERS | Includes Item(s) 5

69720-27A01

Unavailable

5

OIL SEAL

09285-28002

$6.80

6

SPACER

69412-27A00

Unavailable

7

SPACER, RH

64740-27A01

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 64611-27A01.

64611-27A03

Unavailable

9

ABSORBER,RR HUB SHOCK

64651-27A01

$9.78

10

AXLE, REAR

64711-27A01

Unavailable

11

RETAINER,RR HUB BEARING

64733-27A00

$26.93

12

SPACER, LH

64751-27A00

Unavailable

13

WASHER This part replaces 08322-11188.

08322-0118B

$2.70

14

NUT This part replaces 08314-41188.

08314-40187

$5.64

15

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

16

SPACER, BEARING

64731-27A00

Unavailable

17

BEARING, RH This part replaces 08123-60047.

08133-60047

$25.82

18

BEARING, LH

08143-60047

$25.35

19

BEARING, DRUM This part replaces 08113-63050.

09262-25073

$25.92

20

SEAL,OIL (35X62X8)

09285-35001

$10.19

21

SPROCKET, REAR (NT:42)

64511-27A01

Unavailable

22

BOLT

09119-10037

$4.32

23

NUT

08319-31107

$2.73

24

ADJUSTER, CHAIN

61410-27A10

Unavailable

25

PLATE

61421-27A10

Unavailable

26

NUT

08319-31087

$2.32

27

WASHER,CHAIN,AD This part replaces 64712-27A10.

64712-27A11

Unavailable

28

WASHER,CHAIN AD This part replaces 64713-27A10.

64713-27A11

Unavailable

29

TIRE, T/L REAR (140/70VR18) B

65100-28A00

Unavailable

30

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

31

BALANCER (10G) | MODEL G This part replaces 55411-00A00-291.

55411-00A00

$1.49

31

BALANCER, WHEEL NO.2 | MODEL G This part replaces 55412-00A00-291.

55412-17G00

$7.05

31

BALANCER (30G) | MODEL G This part replaces 55413-00A00-291.

55413-00A01

Unavailable

31

BALANCER (10G) | MODEL H

55411-00A00

$1.49

31

BALANCER, WHEEL NO.2 | MODEL H This part replaces 55412-00A00.

55412-17G00

$7.05

31

BALANCER (30G) | MODEL H This part replaces 55413-00A00.

55413-00A01

Unavailable
