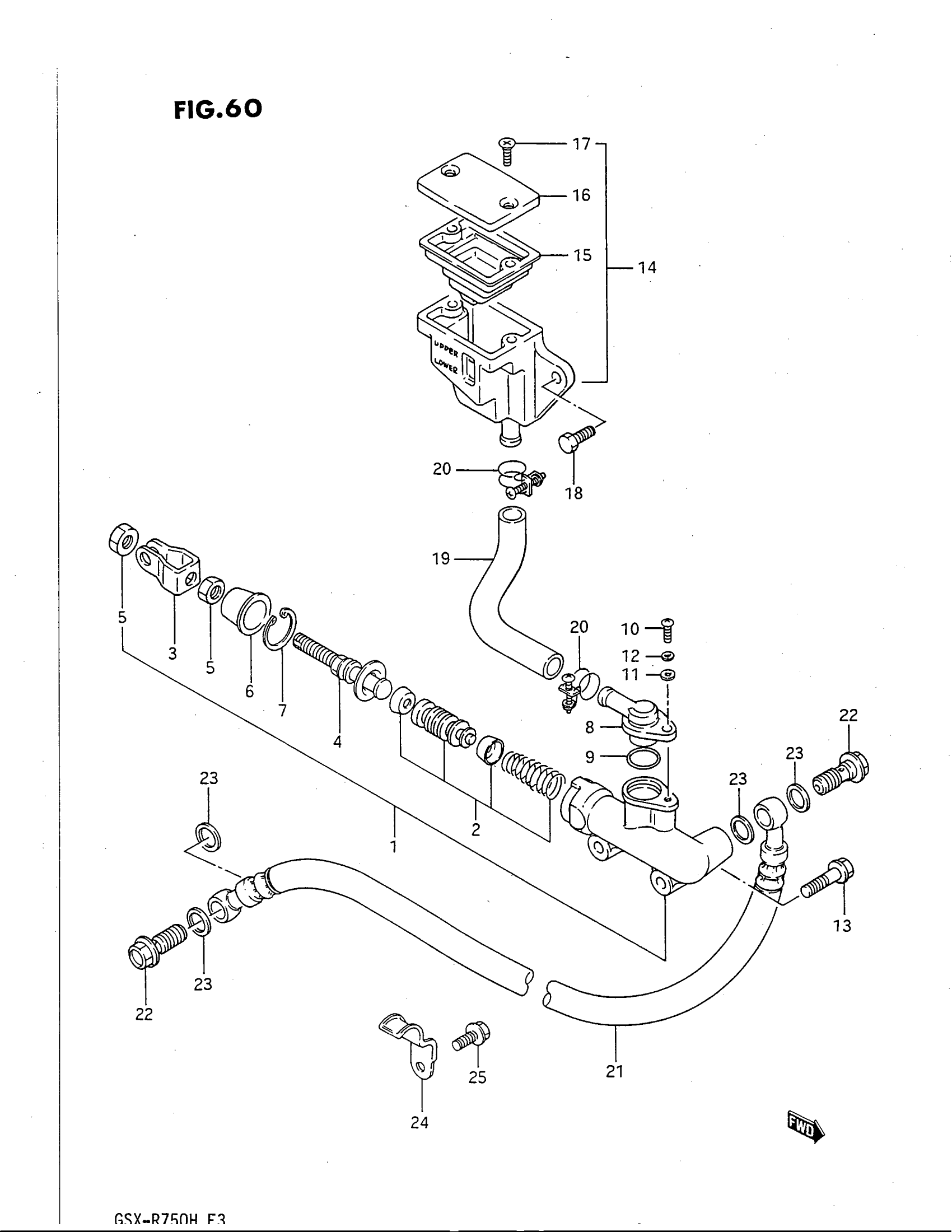

Suzuki GSX-R750G (1987) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 12 This part replaces 69600-27A00.

69600-27A30

Unavailable

2

PISTON & CUP SET This part replaces 69600-16820.

69600-04810

$55.78

3

YOKE

69692-19A00

$19.03

4

ROD, PUSH This part replaces 69670-27A00.

69670-27A30

$29.60

5

NUT

69693-05A00

$1.86

6

.BOOT

69691-00A00

$5.00

7

CIRCLIP

51162-70040

$3.67

8

CONNECTOR

69672-05A00

$5.23

9

O RING

69686-34200

$2.80

10

SCREW This part replaces 02112-04124.

02112-0412A

$1.24

11

WASHER This part replaces 08322-21045.

08322-0104A

$1.92

12

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.86

13

BOLT

09106-06056

Unavailable

14

TANK ASSY,RR RESERVOIR | Includes Item(s) 15 - 17 This part replaces 69740-27A31.

69740-01D02

$64.52

15

DIAPHRAGM

59667-04700

$8.95

16

CAP This part replaces 59669-04710.

69669-24A01

$14.23

17

SCREW

69689-04A00

$2.15

18

BOLT This part replaces 01107-06128.

01500-06127

$1.97

19

HOSE, RESERVOIR

69731-27A00

Unavailable

20

CLAMP This part replaces 09400-16302.

09400-16304

$2.84

21

HOSE, REAR BRAKE This part replaces 69480-27A10.

69480-27A11

Unavailable

22

BOLT

09360-10017

$3.08

23

WASHER (10X15X1.5)

09161-10009

$1.83

24

CLAMP

61196-06B01

Unavailable

25

BOLT This part replaces 01517-05128.

01550-0512B

$3.12
