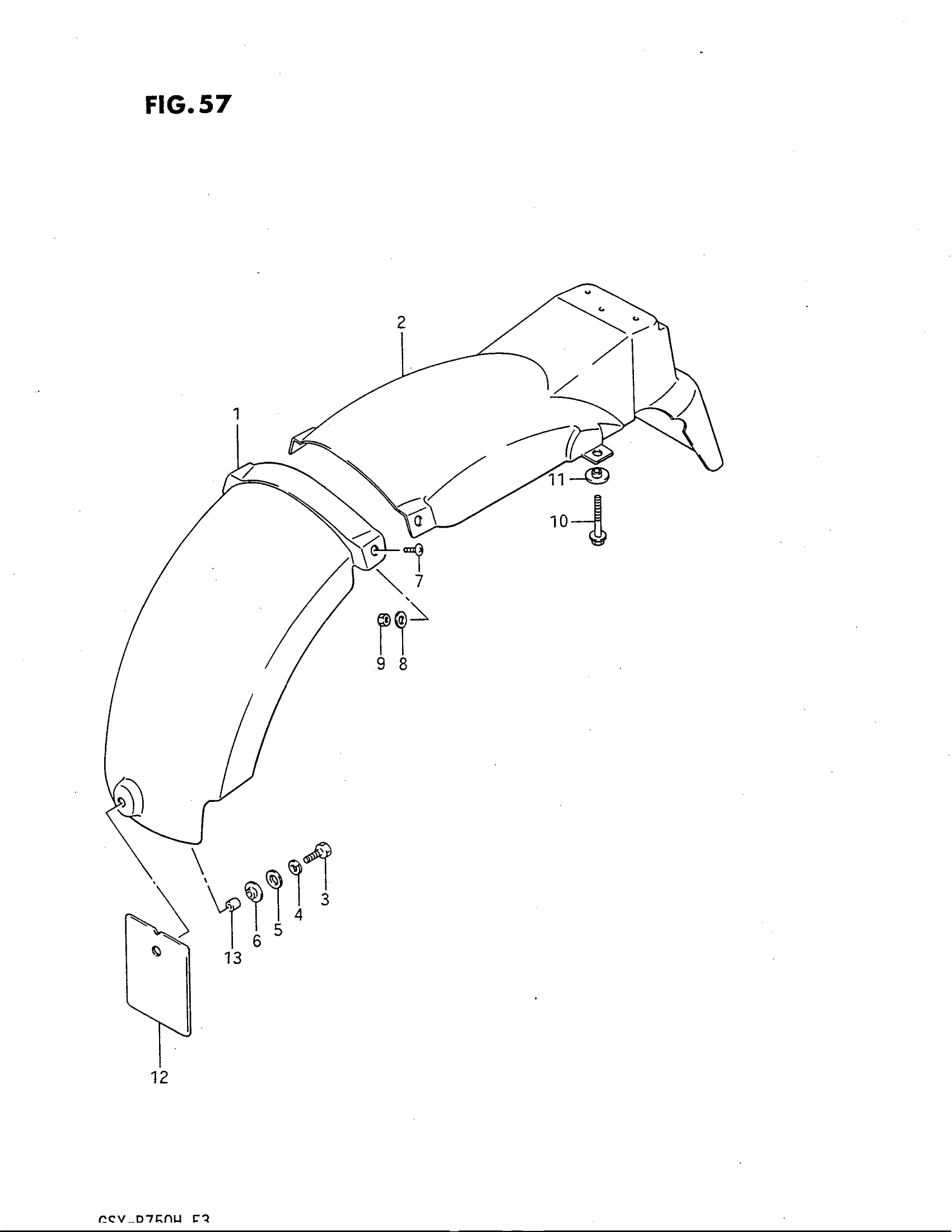

Suzuki GSX-R750G (1987) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-27A00

Unavailable

2

FENDER SET,RR This part replaces 63113-06B00.

63113-06X50

Unavailable

3

BOLT, REAR This part replaces 01107-06307.

01500-06307

$2.48

4

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

5

WASHER This part replaces 09160-06007.

09160-06084

$1.78

6

WASHER

09169-06038

Unavailable

7

SCREW This part replaces 02142-06166.

02142-0616A

$1.49

8

WASHER This part replaces 09160-06006.

09160-06084

$1.78

9

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

10

.BOLT This part replaces 01517-08555.

01550-0855A

$3.05

11

WASHER

09169-08034

$2.36

12

MUD GUARD

63411-27A00

Unavailable

13

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91
