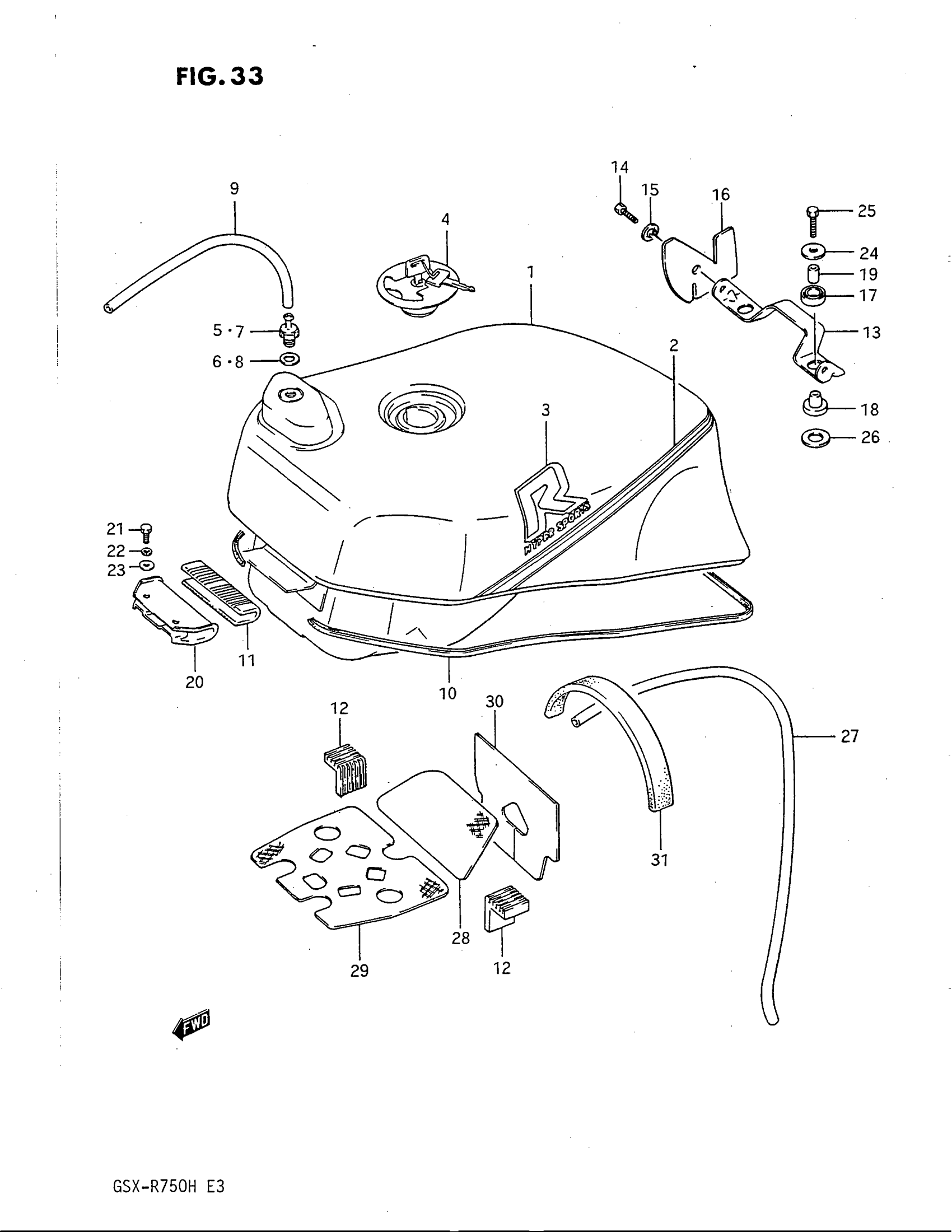

Suzuki GSX-R750G (1987) FUEL TANK (MODEL H) Diagram

#

Description
Price

1

TANK ASSY, FUEL | OTHER THAN CALIFORNIA

44100-28A50-9HE

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 44100-28A80-9HE.

44100-28A81-9HE

Unavailable

1

TANK ASSY, FUEL | OTHER THAN CALIFORNIA

44100-28A50-7JK

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 2 - 3 This part replaces 44100-28A80-7JK.

44100-28A81-7JK

Unavailable

2

TAPE SET, FUEL TANK | FOR 9HE

68110-27A30-9JH

Unavailable

2

TAPE SET, FUEL TANK | FOR 7JK

68110-27A30-9JJ

Unavailable

3

EMBLEM | FOR 9HE

68111-27A00-7TW

Unavailable

3

EMBLEM | FOR 7JK

68111-27A00-7JS

Unavailable

4

CAP SET, FUEL T This part replaces 44200-20A00-KEY.

44200-20841

Unavailable

5

PLUG, FUEL TANK BREATHER | OTHER THAN CALIFORNIA

44240-06B10

$38.33

6

GASKET | OTHER THAN CALIFORNIA

09168-12012

$1.83

7

(CA)VALVE, FUEL TANK BREATHER | CALIFORNIA ONLY

44240-28A01

Unavailable

8

(CA)GASKET | CALIFORNIA ONLY

09168-27001

Unavailable

9

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

10

MOLDING This part replaces 68241-27A00.

68241-04X50-00B

$27.30

11

CUSHION, FUEL TANK FRONT

44511-27A10

Unavailable

12

CUSHION, FUEL TANK SIDE

44545-27A10

Unavailable

13

BRACKET, REAR

45211-27A00

Unavailable

14

BOLT This part replaces 01107-06257.

01500-06257

$1.97

15

WASHER This part replaces 09169-06025.

09169-06010

$2.60

16

SHIELD, FUEL TANK WIND

44267-27A00

Unavailable

17

CUSHION, REAR

09320-14017

$2.35

18

CUSHION, REAR

09320-10038

$2.61

19

SPACER This part replaces 09180-06072.

09180-06271

$2.35

20

BRACKET, FRONT

44521-27A00

Unavailable

21

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

22

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

23

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

24

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

25

BOLT This part replaces 01107-06356.

01500-0635A

$2.19

26

WASHER This part replaces 09160-12004.

09160-12088

$2.00

27

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

28

HEAT SHEILD,FRM This part replaces 44191-27A00.

47166-03D00

$23.76

29

NO DESCRIPTION AVAILABLE This part replaces 44192-27A00.

44192-27A01

Unavailable

30

HEAT SHIELD, FUEL TANK LOWER | OTHER THAN CALIFORNIA

44194-27A00

Unavailable

30

HEAT SHIELD, FUEL TANK LOWER | CALIFORNIA ONLY

44194-06B00

Unavailable

31

HEAT SHIELD, AIR CLEANER

44193-27A02

Unavailable
