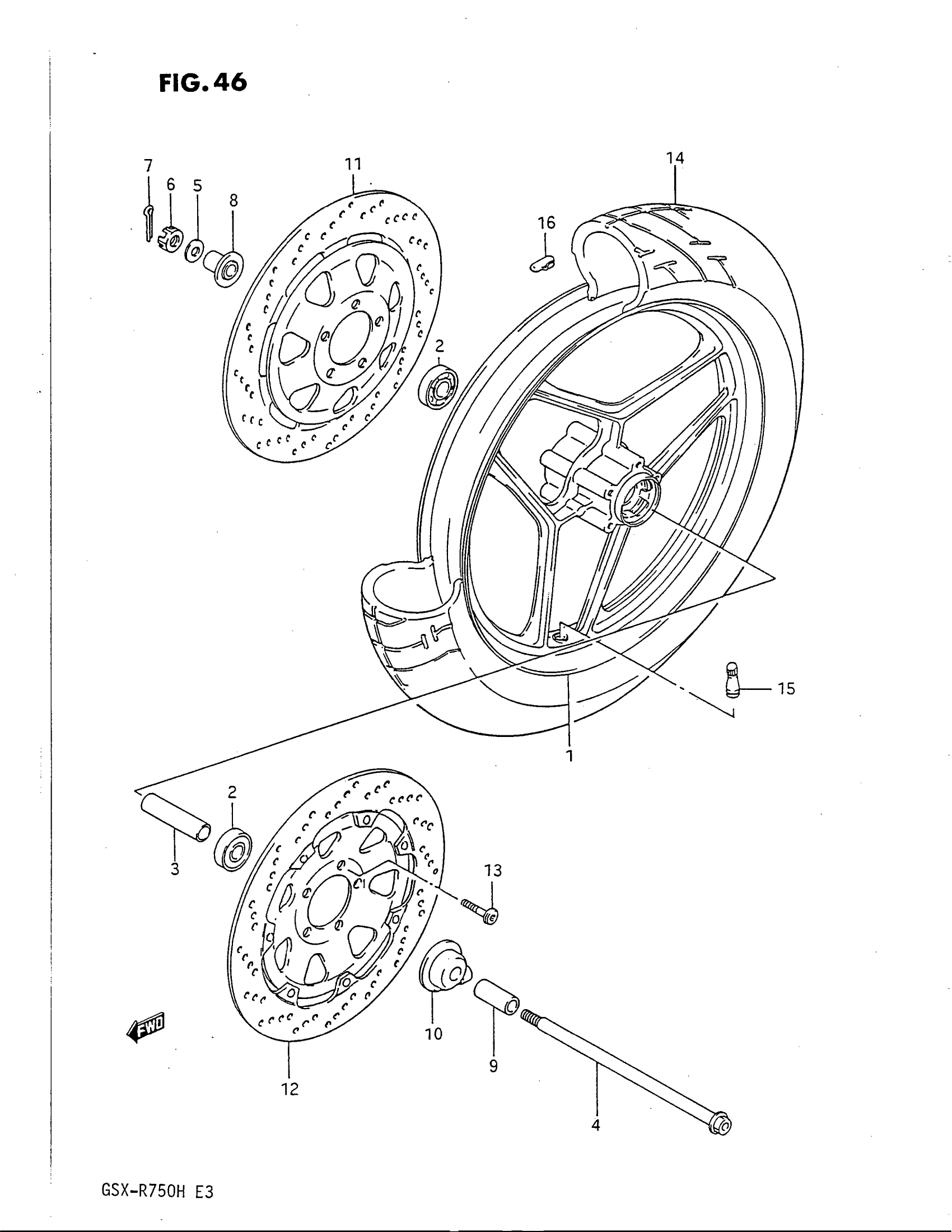

Suzuki GSX-R750G (1987) FRONT WHEEL (MODEL H) Diagram

#

Description
Price

1

WHEEL, FRONT (2.50X18) BLACK

54111-27A00-291

Unavailable

2

BEARING

09262-17034

$55.27

3

SPACER

09180-17089

Unavailable

4

AXLE, FRONT

54711-27A20

Unavailable

5

WASHER This part replaces 08322-11168.

08322-01167

$2.10

6

NUT This part replaces 09141-16005.

09141-16002-XC0

Unavailable

7

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

8

SPACER, BEARING RH

54740-27A10

Unavailable

9

SPACER, AXLE LH

54741-27A20

Unavailable

10

BOX ASSY, SPEEDOMETER GEAR This part replaces 54600-27A10.

54600-27A12

$133.62

11

NO DESCRIPTION AVAILABLE This part replaces 59210-27A00.

59210-27A01

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 59220-27A00.

59220-27A01

Unavailable

13

BOLT (8X33) This part replaces 09106-08062.

09106-08148

$4.80

14

TIRE, T/L FRONT (110/80V-18)

55100-28A00

Unavailable

15

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

16

BALANCER (10G)

55411-00A00

$1.49

16

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$7.05

16

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable
