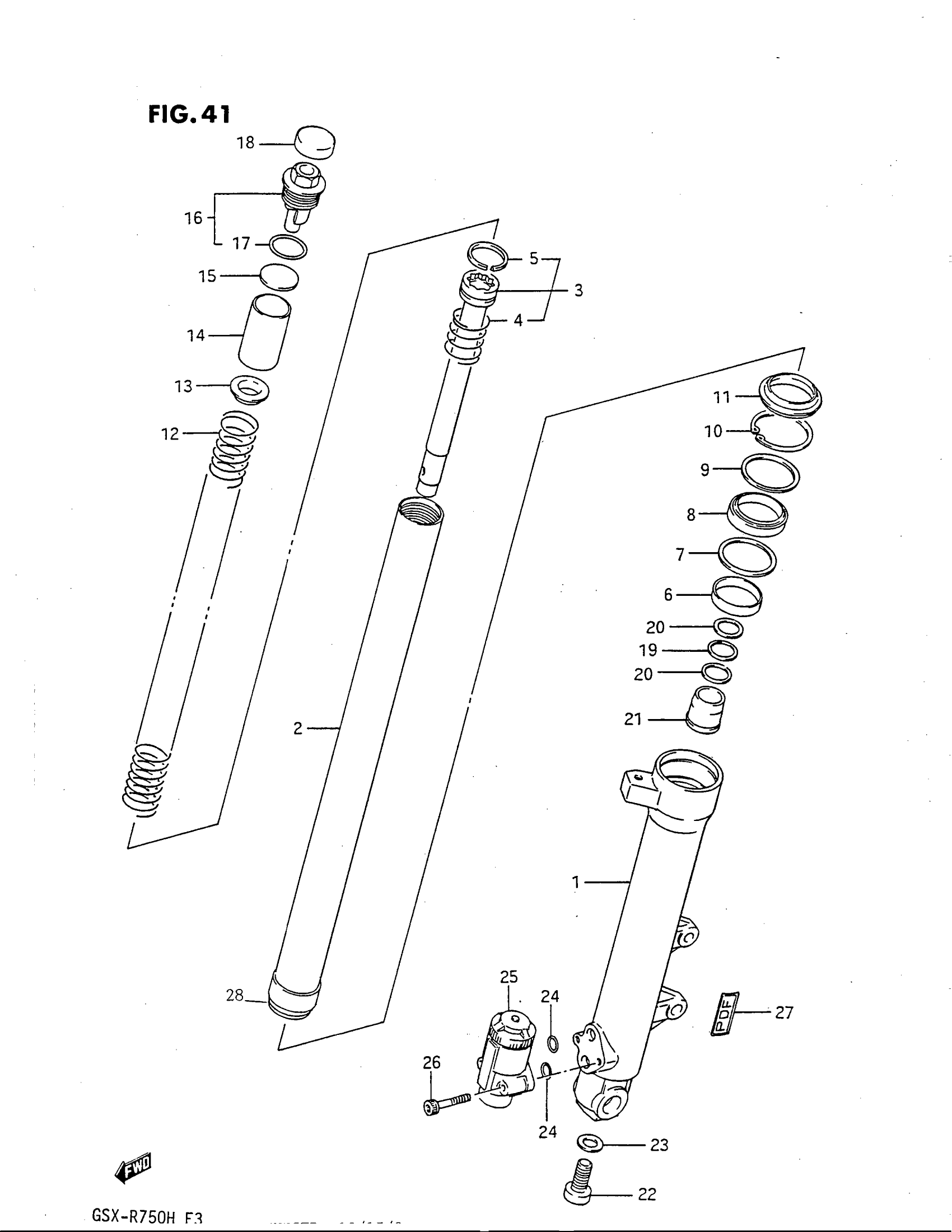

Suzuki GSX-R750G (1987) FRONT LH DAMPER Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 51104-27A20.

51104-27A00

Unavailable

NO DESCRIPTION AVAILABLE | MODEL H; Includes Item(s) 1 - 27 This part replaces 51104-28A00.

51104-27A80

Unavailable

1

TUBE, OUTER LH | MODEL G

51140-27A00

Unavailable

1

TUBE, OUTER LH | MODEL H

51140-27A80

Unavailable

2

TUBE, INNER

51110-27A00

Unavailable

3

CYLINDER

51146-27A00

Unavailable

4

SPRING, REBOUND

51177-27A00

Unavailable

5

RING, PISTON

51196-24A00

Unavailable

6

METAL, SLIDE This part replaces 51167-05A00.

51167-26E10

$24.52

7

WASHER

51158-05A00

$5.83

8

SEAL, OIL This part replaces 51153-05A00.

51153-27C20

$13.63

9

WASHER

51158-27A00

Unavailable

10

SNAP RING

51156-49440

$5.05

11

.SEAL, DUST This part replaces 51173-05A00.

51173-14F00

$23.07

12

SPRING

51171-27A00

Unavailable

13

GUIDE, SPRING

51172-27A00

Unavailable

14

SPACER

51176-27A00

Unavailable

15

WASHER

51192-27A00

$6.47

16

CAP

51351-27A00

Unavailable

17

O RING

51117-24A00

Unavailable

18

CAP

51189-00A00

Unavailable

19

WASHER

51123-27A00

Unavailable

20

SPRING

51125-27A00

Unavailable

21

PIECE, OIL LOCK

51195-27A00

Unavailable

22

BOLT, CYLINDER

51147-14200

Unavailable

23

GASKET

51148-14200

$2.47

24

O RING This part replaces 51799-00A00.

51799-00A01

Unavailable

25

P.D.F ASSY

51770-27A00

Unavailable

26

BOLT This part replaces 07110-06408.

07130-06407

$3.68

27

EMBLEM

51169-00A10

Unavailable
