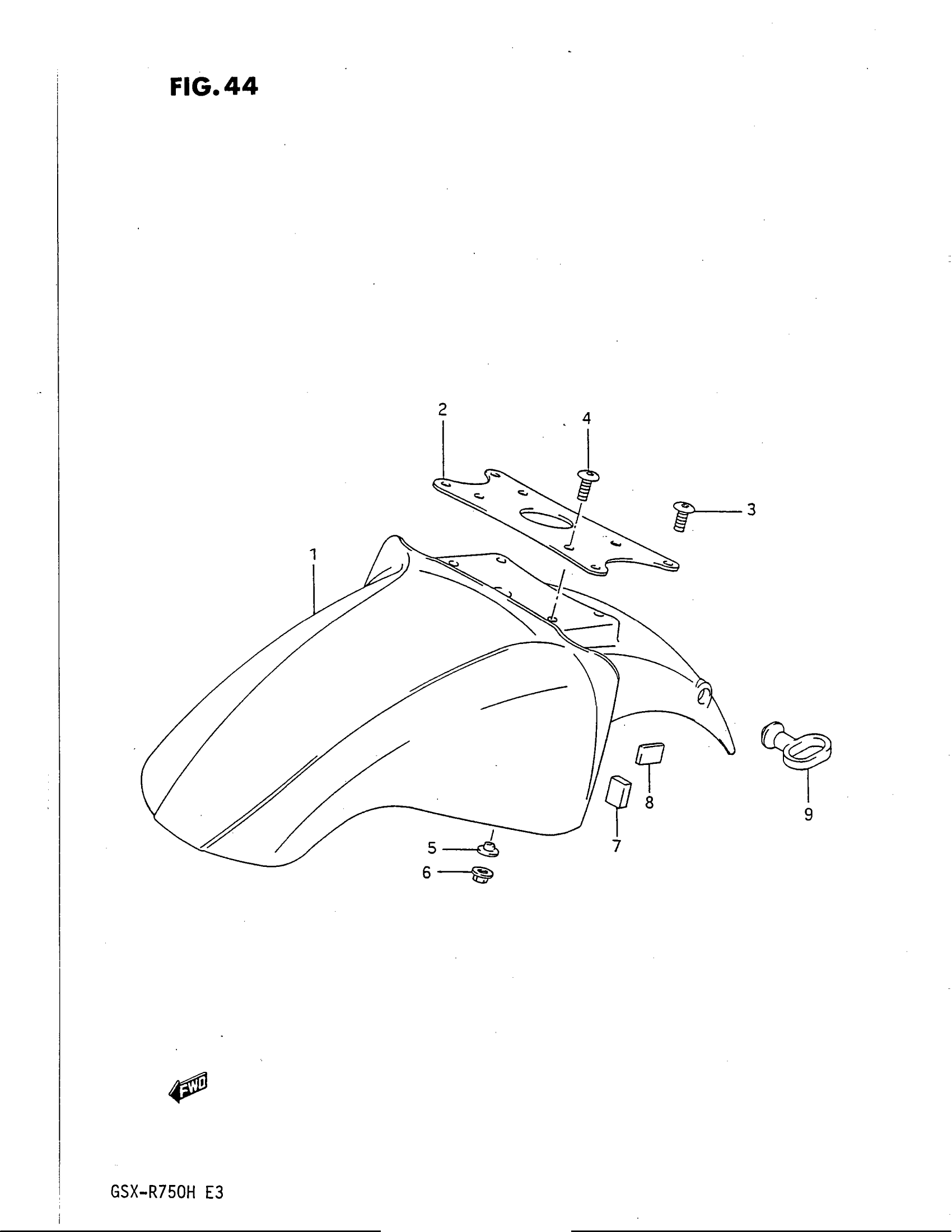

Suzuki GSX-R750G (1987) FRONT FENDER (MODEL H) Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE This part replaces 53111-28A01-019.

53111-28A51-13L

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 53111-28A01-30H.

53111-28A51-13L

Unavailable

2

BRACE, FRONT FENDER

53114-27A00

Unavailable

3

SCREW

09139-06027

$2.16

4

SCREW, FENDER & BRACE

09139-05025

$2.05

5

WASHER

09169-05008

$2.47

6

NUT This part replaces 08319-31056.

08319-3105B

$3.55

7

CUSHION, FENDER FRONT This part replaces 53431-28A00.

53145-28A00

Unavailable

8

CUSHION, FENDER SIDE

53431-28A10

Unavailable

9

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
