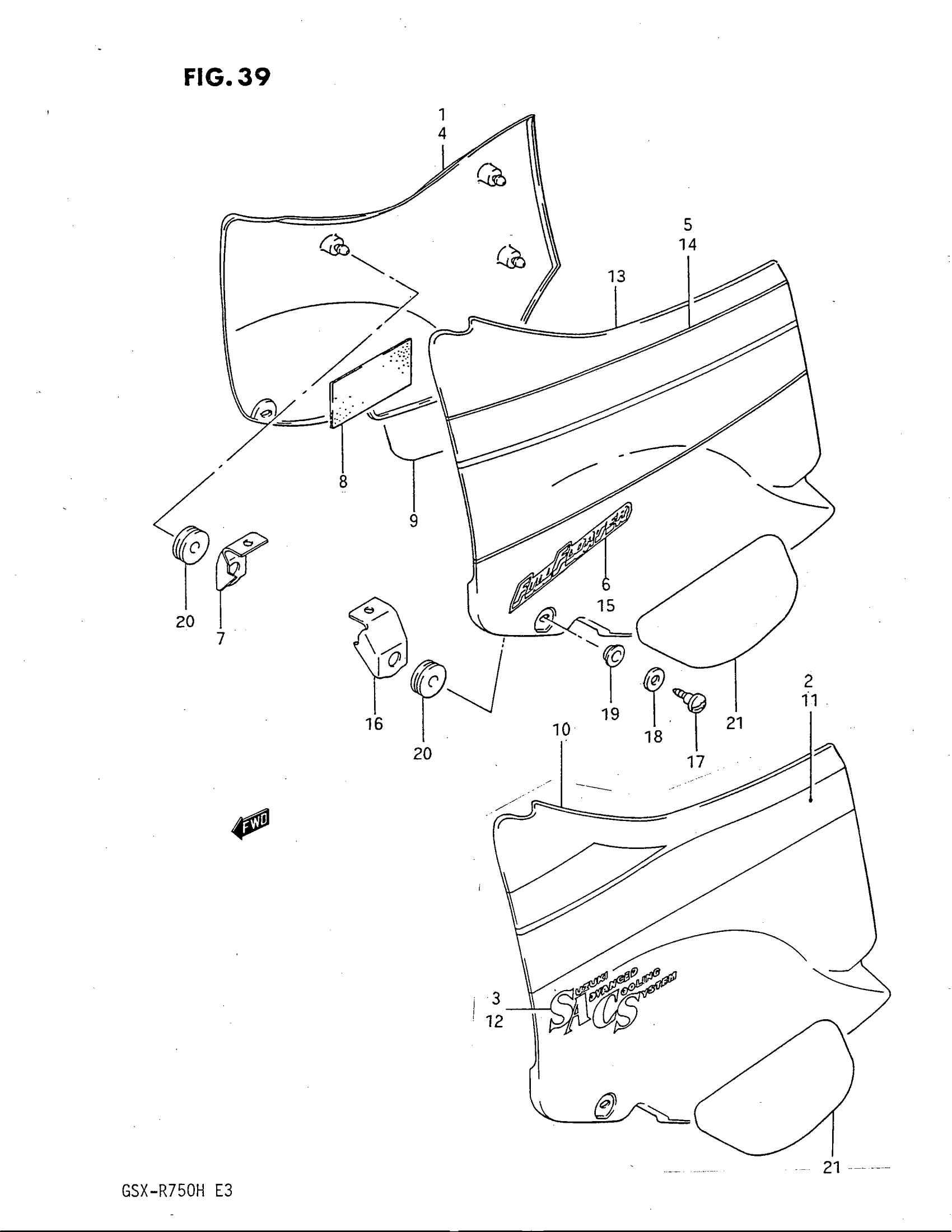

Suzuki GSX-R750G (1987) FRAME COVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 47110-27A30-7TG.

47111-27A02

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL G; Includes Item(s) 2 - 3 This part replaces 47110-27A30-7JK.

47111-27A02

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL G FOR 7TG This part replaces 68130-27A11-81F.

68130-27Z01-81F

Unavailable

2

TAPE SET, RH | MODEL G FOR 7JK

68130-27A11-65G

Unavailable

3

EMBLEM | MODEL G FOR 7TG

68131-27A00-7VR

Unavailable

3

EMBLEM | MODEL G FOR 7JK

68131-27A00-7JL

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 47110-27A50-9HF.

47111-27A02

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL H; Includes Item(s) 5 - 6 This part replaces 47110-27A50-7JK.

47111-27A02

Unavailable

5

TAPE SET, RH | MODEL H FOR 9HF

68130-27A20-9HY

Unavailable

5

TAPE SET, RH | MODEL H FOR 7JK

68130-27A20-9HW

Unavailable

6

EMBLEM, FULL FLOATER | MODEL H FOR 9HF

68235-40A10-65G

Unavailable

6

EMBLEM, FULL FLOATER | MODEL H FOR 7JK

68235-40A10-60K

Unavailable

7

HOLDER, FRAME COVER

47171-27A01

Unavailable

8

RUBBER

47161-27A00

Unavailable

9

PROTECTOR, LH This part replaces 47261-06B00.

47261-27A00

Unavailable

10

COVER, FRAME, L | MODEL G This part replaces 47210-27A30-7TG.

47211-27A02

Unavailable

10

COVER, FRAME, L | MODEL G; Includes Item(s) 11 - 12 This part replaces 47210-27A30-7JK.

47211-27A02

Unavailable

11

TAPE SET, LH | MODEL G FOR 7TG

68140-27A11-81F

Unavailable

11

TAPE SET, LH | MODEL G FOR 7JK

68140-27A11-65G

Unavailable

12

EMBLEM | MODEL G FOR 7TG

68131-27A00-7VR

Unavailable

12

EMBLEM | MODEL G FOR 7JK

68131-27A00-7JL

Unavailable

13

COVER, FRAME, L | MODEL H This part replaces 47210-27A50-9HF.

47211-27A02

Unavailable

13

COVER, FRAME, L | MODEL H; Includes Item(s) 14 - 15 This part replaces 47210-27A50-7JK.

47211-27A02

Unavailable

14

TAPE SET, LH | MODEL H FOR 9HF

68140-27A20-9HY

Unavailable

14

TAPE SET, LH | MODEL H FOR 7JK

68140-27A20-9HW

Unavailable

15

EMBLEM, FULL FLOATER | MODEL H FOR 9HF

68235-40A10-65G

Unavailable

15

EMBLEM, FULL FLOATER | MODEL H FOR 7JK

68235-40A10-60K

Unavailable

16

HOLDER, FRAME COVER LH

47141-27A01

Unavailable

17

SCREW

09139-06044

$4.60

18

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

19

CUSHION

09320-08043

Unavailable

20

CUSHION

09320-08018

$3.04

21

PROTECTOR, LH

47261-27A00

Unavailable
