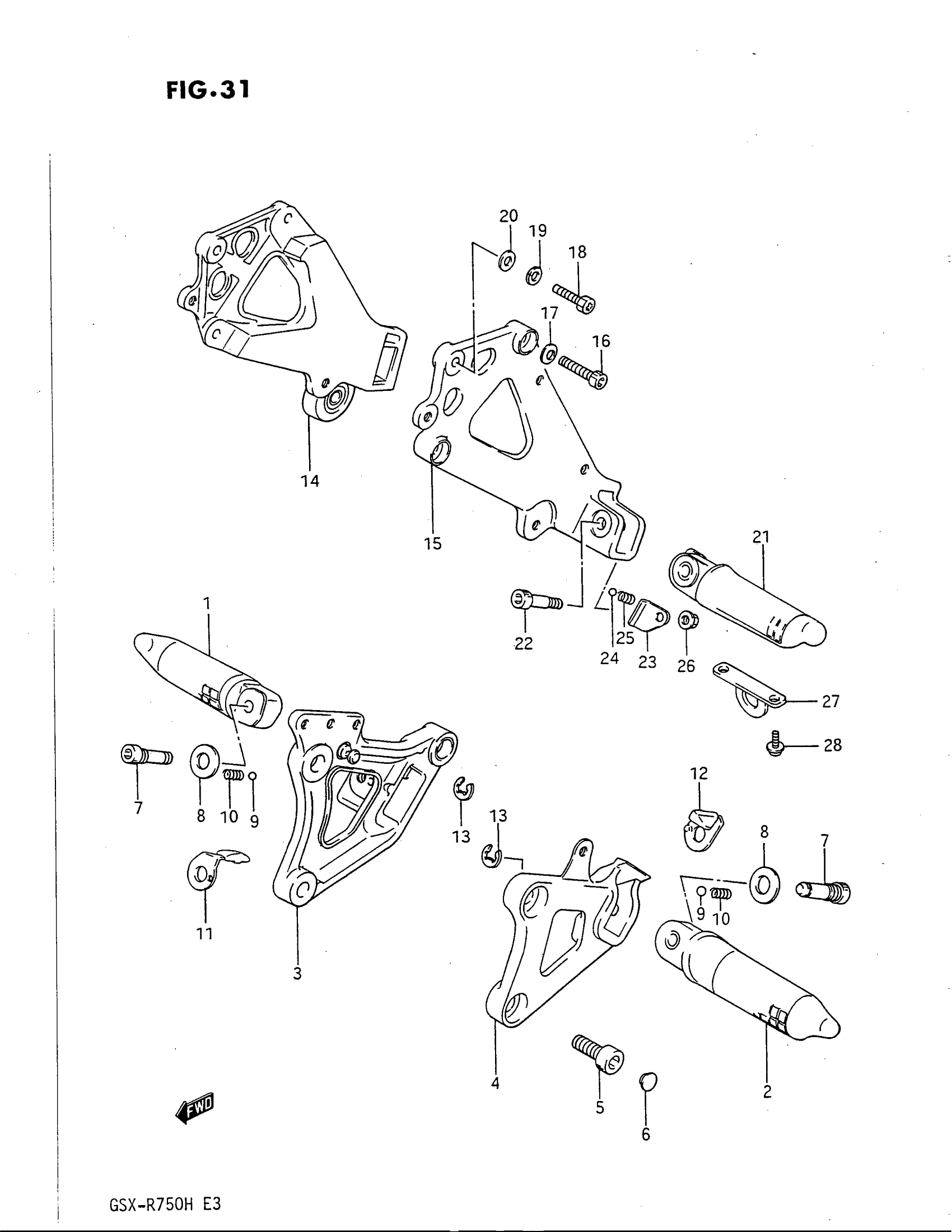

Suzuki GSX-R750G (1987) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY, FRONT RH | MODEL G This part replaces 43501-27A00.

43501-27A02

Unavailable

1

FOOTREST ASSY, FRONT RH | MODEL H

43501-27A02

Unavailable

2

FOOTREST ASSY, FRONT LH | MODEL G This part replaces 43502-27A00.

43502-27A02

Unavailable

2

FOOTREST ASSY, FRONT LH | MODEL H

43502-27A02

Unavailable

3

BRACKET, FOOTREST RH

43510-27A00

Unavailable

4

BRACKET, FOOTREST LH

43522-27A00

Unavailable

5

BOLT This part replaces 07110-10258.

07130-10257

$4.60

6

CAP

43575-34500

$1.72

7

BOLT, FRONT FOOTREST

43529-27A00

Unavailable

8

WASHER | MODEL G This part replaces 43596-27A00.

09160-10126

$2.12

9

BALL | MODEL G This part replaces 06112-07004.

06111-07004

$1.49

10

SPRING | MODEL G

09440-05003

$1.49

11

CUSHION, FRONT FOOTREST RH | MODEL H This part replaces 43580-06B10.

43580-06B00

Unavailable

12

CUSHION, FRONT FOOTREST LH | MODEL H This part replaces 43590-06B10.

43590-06B00

$11.25

13

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49

14

BRACKET, FOOTREST RH | MODEL G This part replaces 43810-27A00.

43810-27A01

Unavailable

14

BRACKET, FOOTREST RH | MODEL H

43810-27A01

Unavailable

15

BRACKET, FOOTREST LH | MODEL G This part replaces 43821-27A00.

43821-27A01

Unavailable

15

BRACKET, FOOTREST LH | MODEL H

43821-27A01

Unavailable

16

BOLT This part replaces 07110-06257.

07130-06257

$3.16

17

WASHER This part replaces 09164-06009.

09164-06013

Unavailable

18

BOLT, REAR This part replaces 01107-06307.

01500-06307

$2.48

19

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

20

WASHER This part replaces 08322-21067.

08322-01067

$2.13

21

FOOTREST ASSY, PILLION RH

43601-27A00

Unavailable

21

FOOTREST ASSY, PILLION LH

43602-27A00

Unavailable

22

BOLT

43642-04A00

Unavailable

23

PLATE,SPRING ST This part replaces 43635-04A00.

43635-04A0V

Unavailable

23

PLATE, SPRING STOP LH

43735-04A00

Unavailable

24

BALL This part replaces 06112-07004.

06111-07004

$1.49

25

SPRING

09440-05003

$1.49

26

NUT This part replaces 08319-31065.

08319-3106A

$2.03

27

HOOK

43619-27A00

Unavailable

28

SCREW This part replaces 02152-04128.

02142-04127

$1.57
