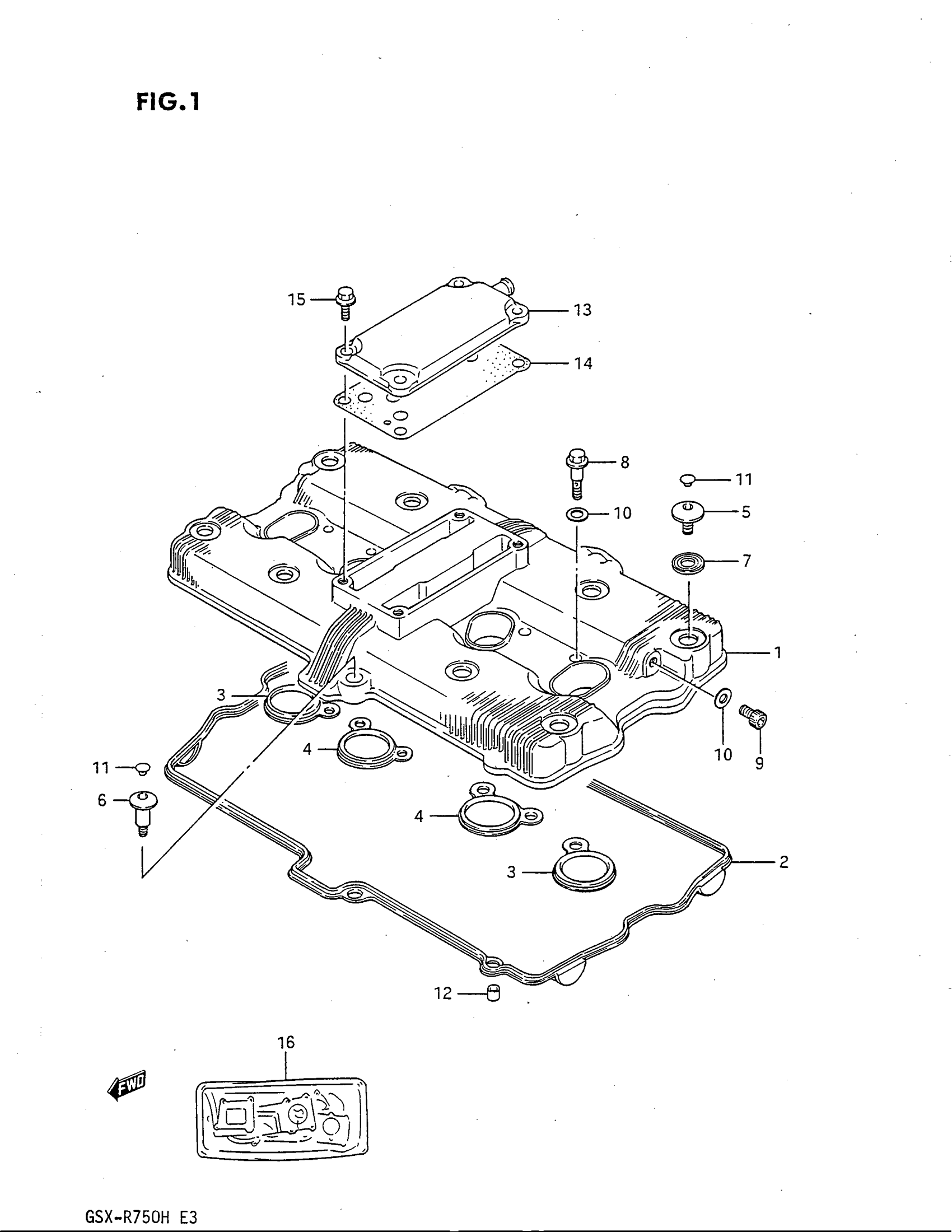

Suzuki GSX-R750G (1987) CYLINDER HEAD COVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11171-27A03.

11171-27A05

Unavailable

2

GASKET, HEAD COVER NO.1 This part replaces 11173-27A01.

11173-27A02

$43.16

3

GASKET,HEAD COV This part replaces 11178-27A00.

11178-27A02

$6.79

4

GASKET,HEAD COV This part replaces 11179-27A01.

11179-27A03

$7.22

5

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

6

BOLT (L:19)

09106-07010

$4.64

7

WASHER This part replaces 09161-11006.

09161-11008

$4.49

8

BOLT AND GASKET This part replaces 09360-08009.

11180-27820

Unavailable

9

BOLT This part replaces 07110-08125.

07130-0812A

$3.72

10

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

11

CAP This part replaces 09250-06008.

09250-06016

$1.96

12

PIN

04221-08129

$1.99

13

COVER, BREATHER This part replaces 11176-27A00.

11176-31301

Unavailable

14

GASKET, BREATHER COVER This part replaces 11177-27A00.

11177-27A00-H17

$6.05

15

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

16

NO DESCRIPTION AVAILABLE | OPT MODEL G This part replaces 11400-27851.

11401-27817

Unavailable

16

NO DESCRIPTION AVAILABLE | OPT MODEL H This part replaces 11400-27853.

11401-27817

Unavailable
