Description

Price

1

NO DESCRIPTION AVAILABLE This part replaces 11210-27A03.

11210-27A04

Unavailable

2

STUD BOLT (10X150) This part replaces 09108-10074.

09108-10144

$11.10

3

STUD BOLT (10X143)

09108-10073

$11.73

4

GASKET, CYLINDER This part replaces 11241-27A02.

11241-27A04

$17.36

5

STUD BOLT This part replaces 01421-06205.

01421-0620A

$1.91

6

NUT This part replaces 08316-16064.

08316-1006B

$2.50

7

PIN This part replaces 09206-13006.

09206-13017

$7.61

8

HOSE, OIL HEAD COOLER This part replaces 11328-27A01.

11328-27A04

Unavailable

9

O RING

09280-14011

$4.77

10

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

11

BOLT This part replaces 07110-06165.

07130-0616B

$2.39

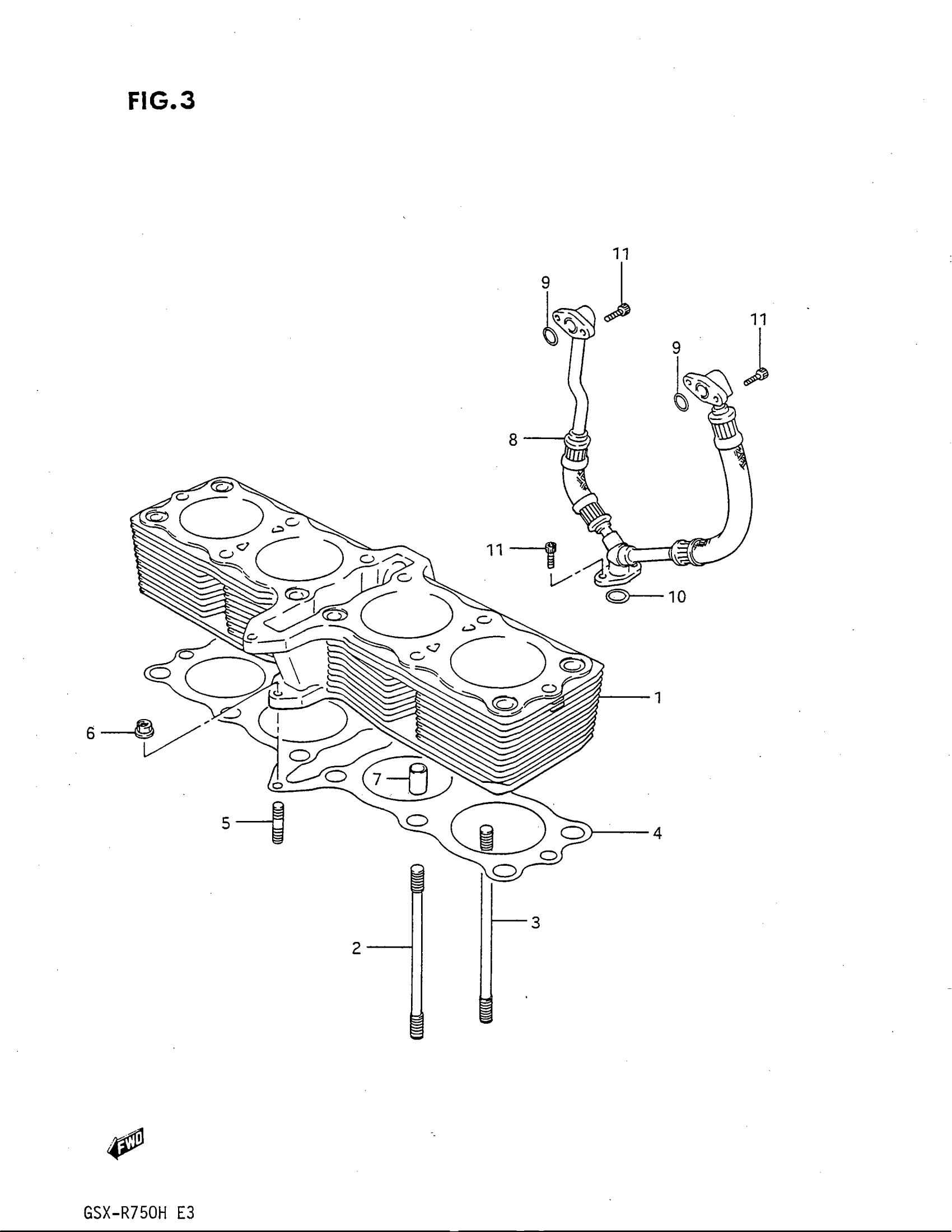

Suzuki GSX-R750G (1987) CYLINDER Diagram
