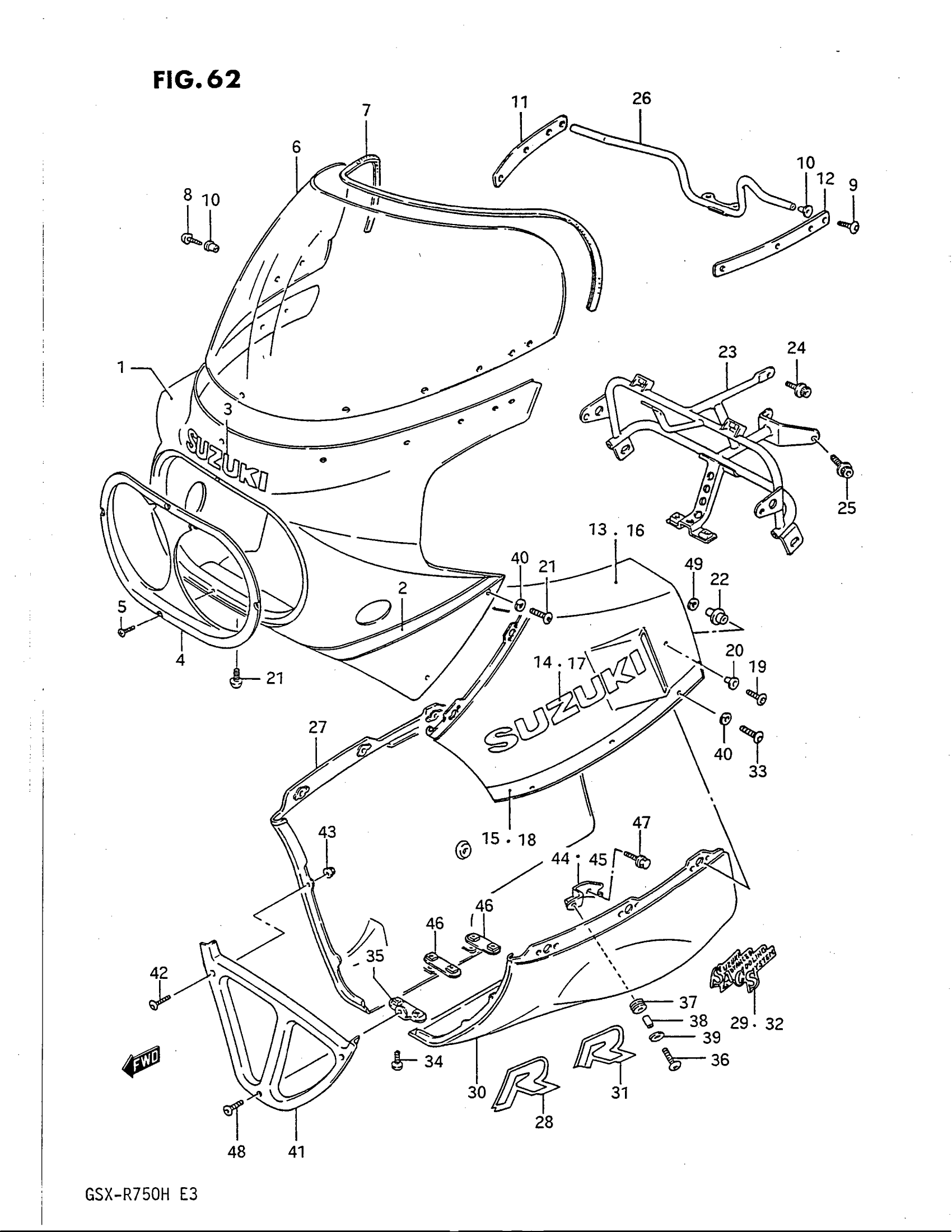

Suzuki GSX-R750G (1987) COWLING (MODEL H) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 94400-27A90-9HE.

94400-27X00-9HE

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 5 This part replaces 94400-27A90-7JK.

94400-27X00-7JK

Unavailable

2

TAPE SET | FOR 9HE

68190-27A30-9JJ

Unavailable

2

TAPE SET | FOR 7JK

68190-27A30-9JH

Unavailable

3

EMBLEM This part replaces 68271-04A00-064.

68271-04A10-22R

Unavailable

4

COVER, FRONT (BLACK) | FOR 9HE This part replaces 94435-27A00-19F.

94435-27A00-291

Unavailable

4

COVER, FRONT (BLACK) | FOR 7JK This part replaces 94435-27A00-22P.

94435-27A00-291

Unavailable

5

SCREW (4x12) This part replaces 03541-04125.

03541-0412A

$1.49

6

WINDOW, COWLING This part replaces 94611-06B01.

94611-27A01

Unavailable

7

MOLDING This part replaces 94631-27A00.

94631-49300

$18.86

8

SCREW

09139-05025

$2.05

9

SCREW, REAR

09139-05032

$1.89

10

NUT This part replaces 94619-27A00.

09159-05048

$7.22

11

PLATE, MIRROR RH

94529-27A00

Unavailable

12

PLATE, MIRROR LH

94539-27A00

Unavailable

13

NO DESCRIPTION AVAILABLE | FOR 9HE This part replaces 94430-28A90-30H.

94430-27A30

Unavailable

13

NO DESCRIPTION AVAILABLE | FOR 7JK; Includes Item(s) 14 - 15 This part replaces 94430-28A90-019.

94430-27A30

Unavailable

14

EMBLEM,FUEL TAN | FOR 30H This part replaces 68111-00A50-07G.

68111-34320-05F

Unavailable

14

EMBLEM,FUEL TAN | FOR 019 This part replaces 68111-00A50-064.

68111-33200-064

Unavailable

15

TAPE SET, RH | FOR 30H

68680-27A40-08L

Unavailable

15

TAPE SET, RH | FOR 019

68680-27A40-742

Unavailable

16

NO DESCRIPTION AVAILABLE | FOR 9HE This part replaces 94440-28A90-30H.

94440-27A30

Unavailable

16

NO DESCRIPTION AVAILABLE | FOR 7JK; Includes Item(s) 17 - 18 This part replaces 94440-28A90-019.

94440-27A30

Unavailable

17

EMBLEM,FUEL TAN | FOR 30H This part replaces 68111-00A50-07G.

68111-34320-05F

Unavailable

17

EMBLEM,FUEL TAN | FOR 019 This part replaces 68111-00A50-064.

68111-33200-064

Unavailable

18

TAPE SET, LH | FOR 30H

68690-27A40-08L

Unavailable

18

TAPE SET, LH | FOR 019

68690-27A40-742

Unavailable

19

SCREW, REAR

09139-06027

$2.16

20

WASHER

09169-06033

$1.50

21

SCREW

09139-06030

$3.70

22

CUSHION

94570-04A00

$21.91

23

BRACE, FRONT This part replaces 94510-27A40.

94510-27A60

Unavailable

24

BOLT, EXHAUST COVER This part replaces 07120-06165.

07120-0616B

$2.45

25

BOLT This part replaces 07120-08165.

07120-0816A

$3.05

26

BRACE, REAR

94530-27A10

Unavailable

27

NO DESCRIPTION AVAILABLE | FOR 9HE This part replaces 94470-27A90-9HH.

94470-27A41-13L

Unavailable

27

NO DESCRIPTION AVAILABLE | FOR 7JK; Includes Item(s) 28 - 29 This part replaces 94470-27A90-9HG.

94470-27A41-13L

Unavailable

28

EMBLEM | FOR 9HH This part replaces 68261-27A00-8KC.

68261-27A00-60D

Unavailable

28

EMBLEM | FOR 9HG

68261-27A00-7JS

Unavailable

29

EMBLEM | FOR 9HH

68131-27A00-7VR

Unavailable

29

EMBLEM | FOR 9HG

68131-27A00-7JL

Unavailable

30

NO DESCRIPTION AVAILABLE | FOR 9HE This part replaces 94480-27A70-9HH.

94480-27A40-13L

Unavailable

30

NO DESCRIPTION AVAILABLE | FOR 7JK; Includes Item(s) 31 - 32 This part replaces 94480-27A70-9HG.

94480-27A40-13L

Unavailable

31

EMBLEM | FOR 9HH This part replaces 68261-27A10-8KC.

68261-27A00-60D

Unavailable

31

EMBLEM | FOR 9HG This part replaces 68261-27A10-7JS.

68261-27A00-7JS

Unavailable

32

EMBLEM | FOR 9HH

68131-27A00-7VR

Unavailable

32

EMBLEM | FOR 9HG

68131-27A00-7JL

Unavailable

33

SCREW, UPPER

09139-06030

$3.70

34

SCREW, RH & LH

09139-06039

$2.19

35

BRACE, LOWER

94490-06B00

Unavailable

36

SCREW

09139-06028

$3.70

37

CUSHION

09320-09016

$1.97

38

SPACER This part replaces 09180-06152.

09180-06262

$2.55

39

WASHER (6.5X18X1)

09160-06056

$1.72

40

WASHER This part replaces 09161-07005.

09161-07006

$2.15

41

NO DESCRIPTION AVAILABLE | FOR 9HE This part replaces 94475-06B01-23Z.

94475-06B01-13L

Unavailable

41

NO DESCRIPTION AVAILABLE | FOR 7JK This part replaces 94475-06B01-22P.

94475-06B01-13L

Unavailable

42

SCREW (5X14)

09139-05025

$2.05

43

NUT This part replaces 08316-26055.

08316-2005A

$2.19

44

BRACE, LOWER, RH

94580-27A00

Unavailable

45

BRACE, LOWER, LH

94590-27A00

Unavailable

46

BRACE, LOWER, REAR

94493-06B00

Unavailable

47

BOLT This part replaces 01517-06128.

01550-06127

$2.30

48

SCREW (6X16)

09139-06030

$3.70

49

LOCK WASHER This part replaces 08321-31064.

08321-0106A

$1.84
