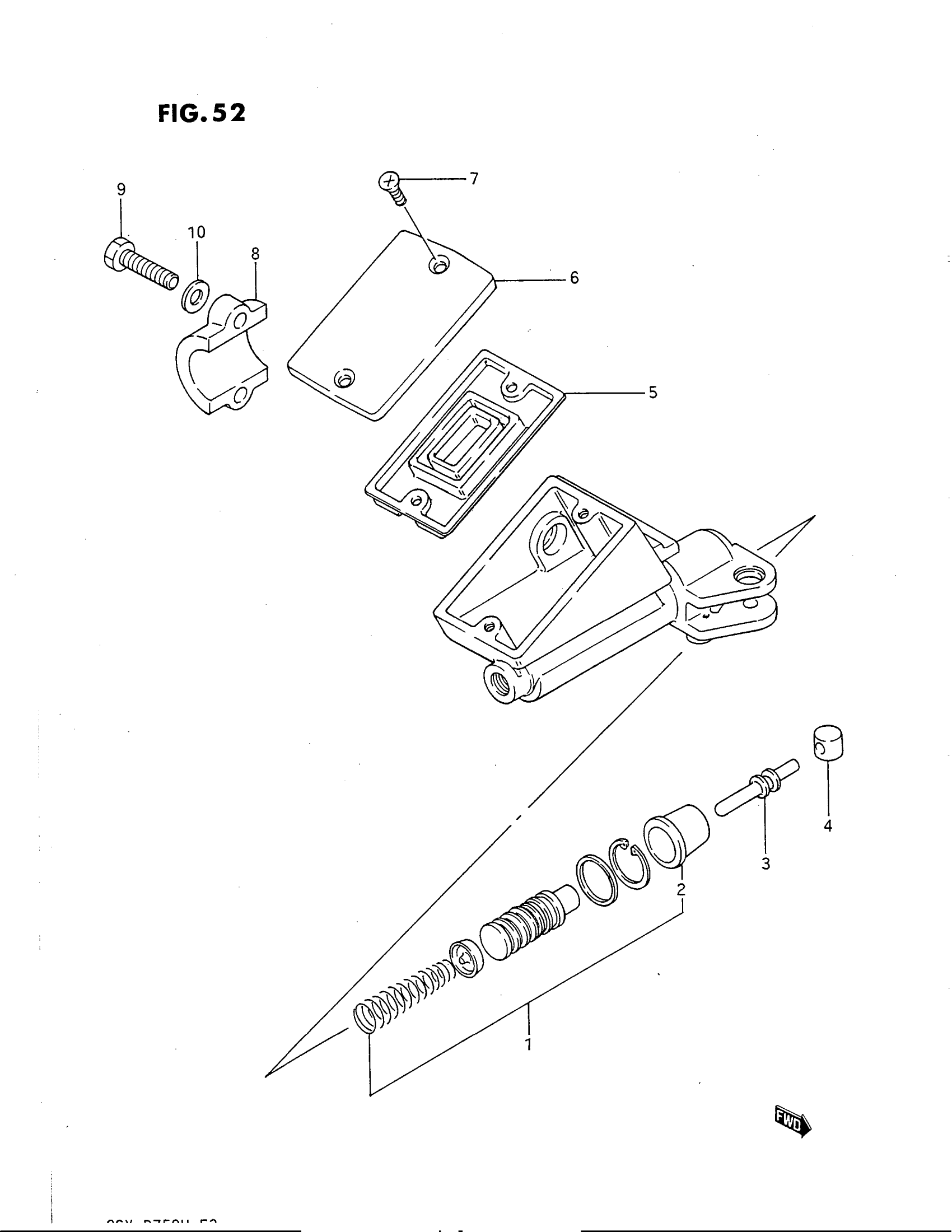

Suzuki GSX-R750G (1987) CLUTCH MASTER CYLINDER Diagram

#

Description

Price

CYLINDER ASSY, CLUTCH MASTER | Includes Item(s) 1 - 10 This part replaces 59800-27A20.

59800-40C12

Unavailable

1

PISTON & CUP SET

59800-08810

$39.48

2

BOOT

59666-44300

$5.80

3

PUSH ROD

59871-08A00

Unavailable

4

BUSH

59892-08A00

$5.05

5

DIAPHRAGM

59667-49460

$9.78

6

CAP This part replaces 59669-04A10.

59669-41C00

$32.56

7

SCREW

69689-49300

$1.91

8

HOLDER This part replaces 59671-16700.

59671-19B00

$20.07

9

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

10

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26
