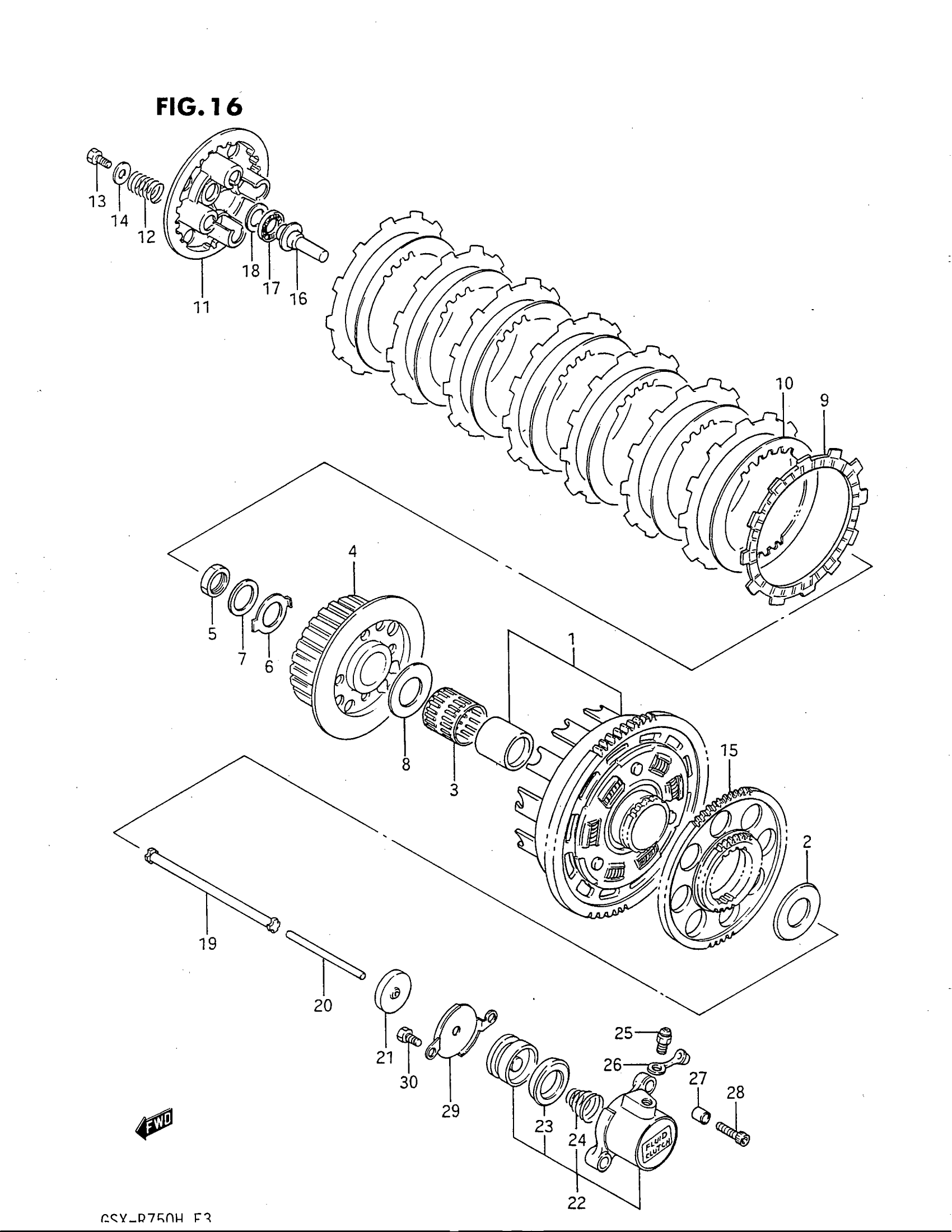

Suzuki GSX-R750G (1987) CLUTCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 21200-27822.

21200-27825

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 21200-27824.

21200-27825

Unavailable

2

WASHER This part replaces 09160-25062.

09160-25067

Unavailable

3

BEARING

09263-35017

$40.54

4

HUB, SLEEVE

21410-27A02

$140.97

5

NUT

09140-22008

$7.35

6

WASHER

09169-22005

Unavailable

7

WASHER (22.2X35X2) This part replaces 09164-22006.

09164-22007

$7.35

8

.WASHER (25X50X2.5)

09160-25056

$11.61

9

PLATE, DRIVE

21441-37400

$18.13

10

PLATE, DRIVEN

21451-05A00

$9.83

11

DISC, PRESSURE

21462-27A00

$57.67

12

SPRING This part replaces 09440-20010.

09440-20013

$3.57

13

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

14

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

15

GEAR, GENERATOR DRIVE This part replaces 22721-27A01.

22721-27A03

$215.51

16

PIECE, PUSH

23121-27A00

Unavailable

17

BEARING (15X28X2)

09263-15003

$8.29

18

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

19

ROD, PUSH RH

23110-27A00

$21.09

20

ROD,CLUTCH PUSH,L

23111-15501

$13.30

21

OIL SEAL

09285-06015

$7.98

22

CYLINDER,CLUTCH | Includes Item(s) 23 - 26 This part replaces 23160-08A01.

23160-08A03

$107.34

23

CUP

23163-05A00

$7.54

24

SPRING

23164-05A00

$4.34

25

BLEEDER

59121-01A00

$8.73

26

CAP, BLEEDER

59122-01A00

$4.34

27

PIN

04211-09129

$1.65

28

BOLT This part replaces 07110-06255.

07130-0625B

$3.04

29

COVER, CYLINDER This part replaces 23117-27A02.

23117-46E00

$6.79

30

SCREW This part replaces 02112-06106.

02112-0610B

$1.84
