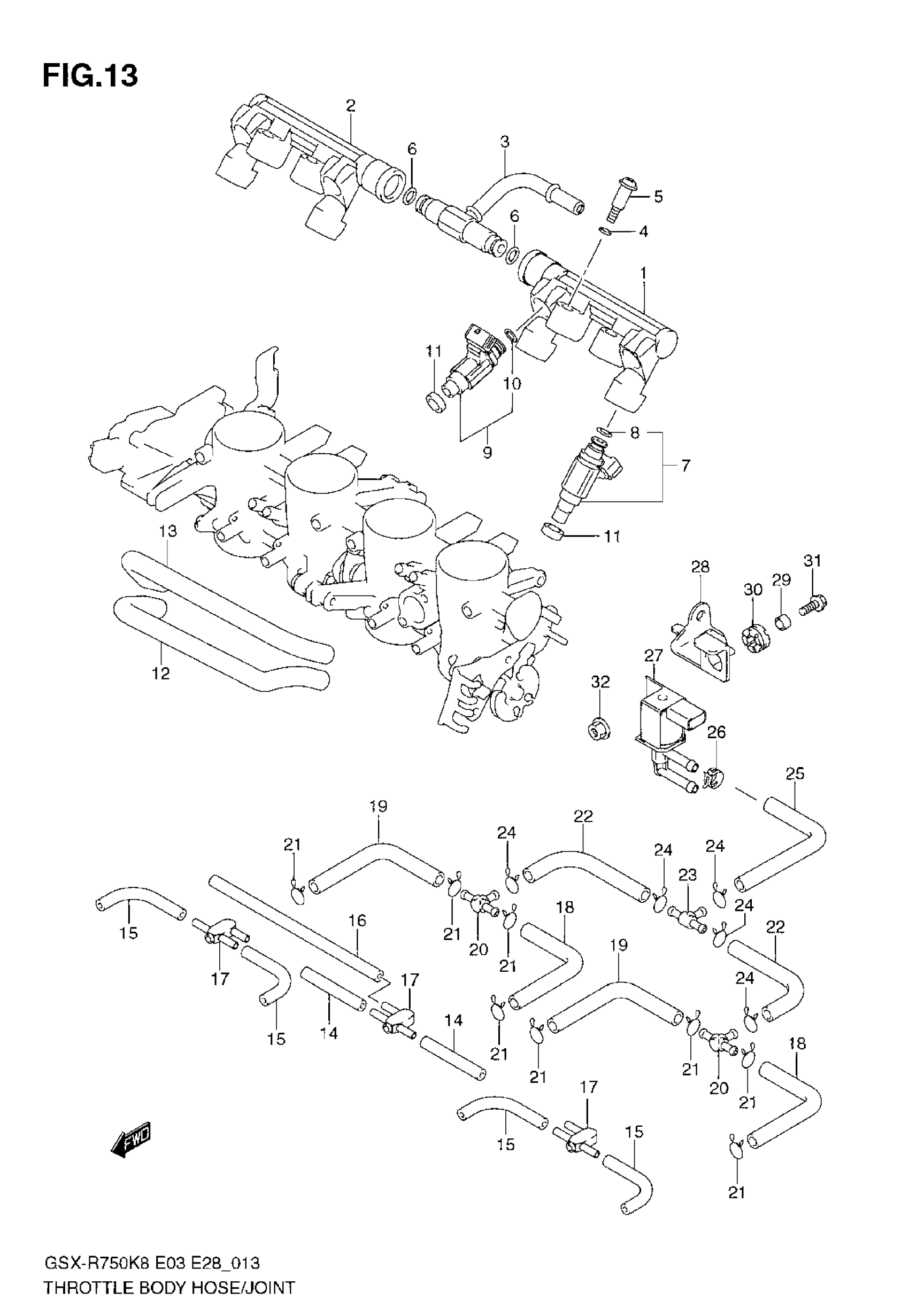

Suzuki GSX-R750 (2008) THROTTLE BODY HOSE/JOINT Diagram

#

Description
Price

1

DELIVERY PIPE ASSY

13473-37H00

Unavailable

2

DELIVERY PIPE ASSY

13473-37H10

Unavailable

3

NIPPLE ASSY

13473-29G00

$108.60

4

PACKING This part replaces 13602-29G00.

13602-29G01

$2.52

5

SCREW

13601-29G00

$3.22

6

O-RING This part replaces 15721-29G00.

15721-08J00

$11.88

7

INJECTOR ASSY | Includes Item(s) 8

15710-37H00

$371.32

8

O RING

15717-16G00

$9.11

9

INJECTOR ASSY | Includes Item(s) 10

15710-37H10

$349.68

10

O RING

15717-16G00

$9.11

11

SEAL

15722-29G00

$10.01

12

HOSE

13698-37H00

Unavailable

13

HOSE

13698-37H10

Unavailable

14

HOSE This part replaces 13683-37H00.

13683-37H01

$10.98

15

HOSE

13683-37H10

Unavailable

16

HOSE (L:425) This part replaces 13683-04F50.

13683-10F61

$19.30

17

NIPPLE

13471-18H00

$11.83

18

HOSE | E33

13683-37H20

Unavailable

19

HOSE | E33

13683-37H30

Unavailable

20

NIPPLE | E33

13685-29G00

Unavailable

21

CLIP | E33

13671-29G00

Unavailable

22

HOSE | E33

13680-37H00

Unavailable

23

.NIPPLE | E33

13685-48B00

$11.44

24

CLIP | E33

13671-06A10

Unavailable

25

HOSE | E33

13680-37H10

Unavailable

26

CLIP | E33

09401-10411

$3.05

27

VALVE, CANISTER PURGE | E33

18117-82K00

Unavailable

28

BRACKET | E33

13165-37H00

Unavailable

29

SPACER | E33

09180-06310

$1.92

30

CUSHION | E33

09320-10055

$4.12

31

BOLT | E33

09116-06212

$1.63

32

NUT | E33

08316-1006A

$2.19
