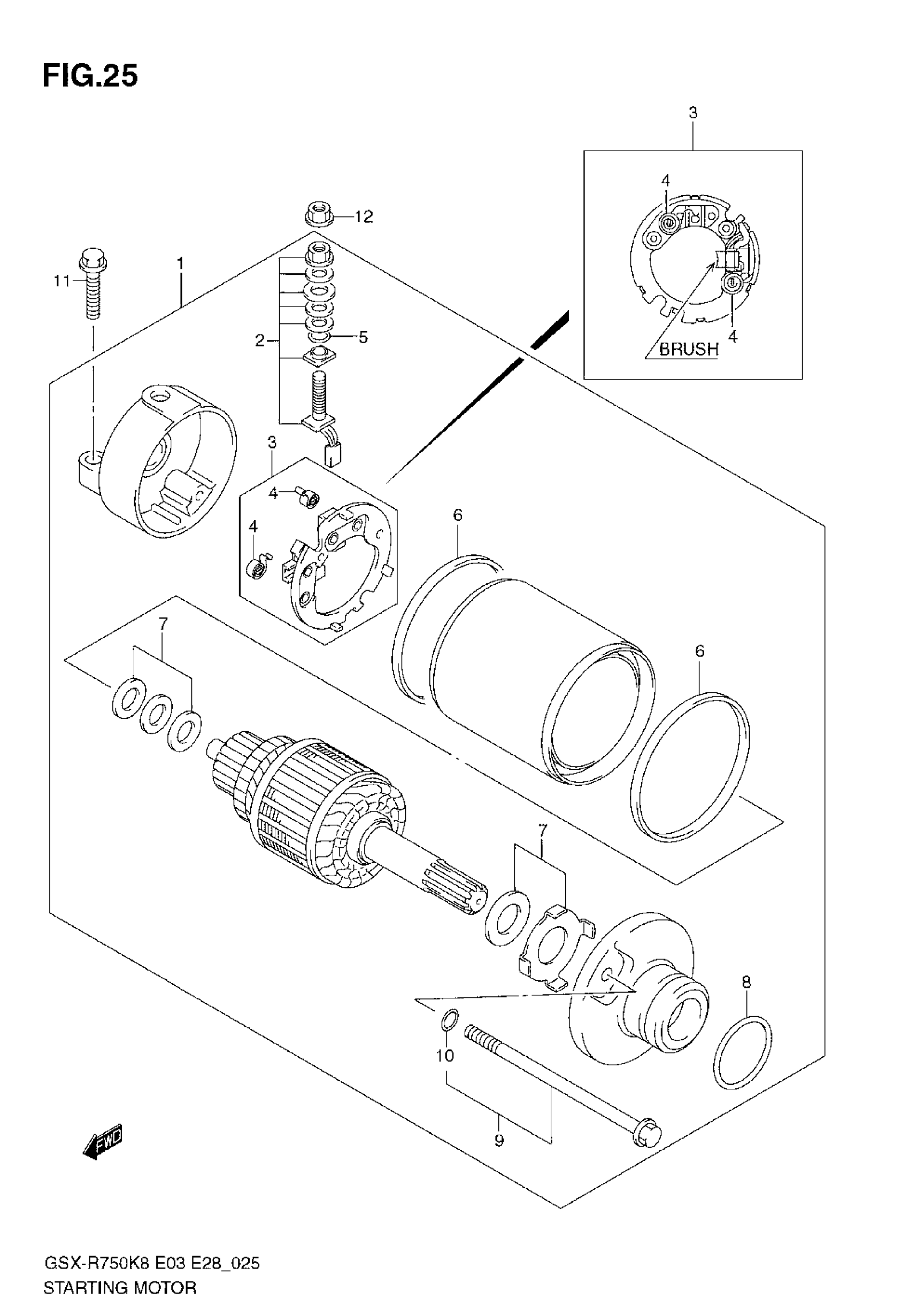

Suzuki GSX-R750 (2008) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-37H00

$579.18

2

BRUSH TERMINAL SET

31130-13E00

$44.18

3

BRUSH HOLDER SET

31132-13E00

$56.75

4

SPRING, BRUSH

31135-31300

$4.96

5

O RING

31143-49040

$3.71

6

O RING

31264-13E00

$6.68

7

WASHER SET

31170-19B10

$12.57

8

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

9

SET BOLT

31280-15D10

Unavailable

10

O RING

31156-13E00

$4.35

11

BOLT (6X25)

09103-06212

$2.47

12

NUT

08361-3506A

$1.80
