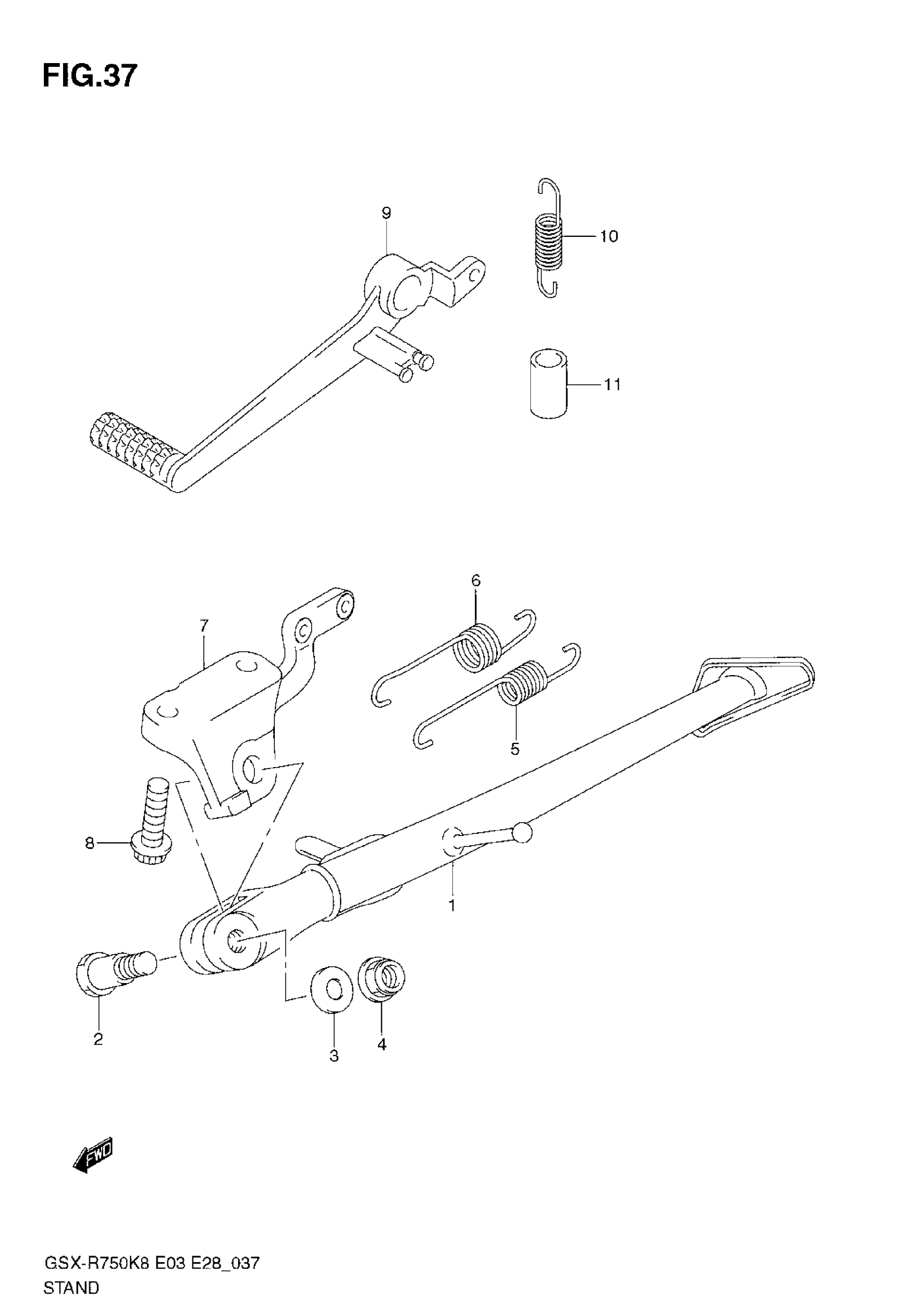

Suzuki GSX-R750 (2008) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-40F40

$141.37

2

BOLT, PROP STAND

09111-10058

$6.66

3

WASHER

12935-27A00

$3.25

4

NUT

09159-10103

$3.10

5

SPRING, INNER

09443-14070

$5.50

6

SPRING, OUTER

09443-19016

$5.89

7

BRACKET, PROP STAND

42330-01H00

$269.52

8

BOLT

09106-10064

$4.90

9

PEDAL, BRAKE

43110-41G00

$128.24

10

SPRING

09443-11033

$4.50

11

HOSE This part replaces 09352-11153-600.

09352-11154-600

$13.05
